Description

Brand APEM
Product Code104450720
Stock StatusPre-order
Stock0

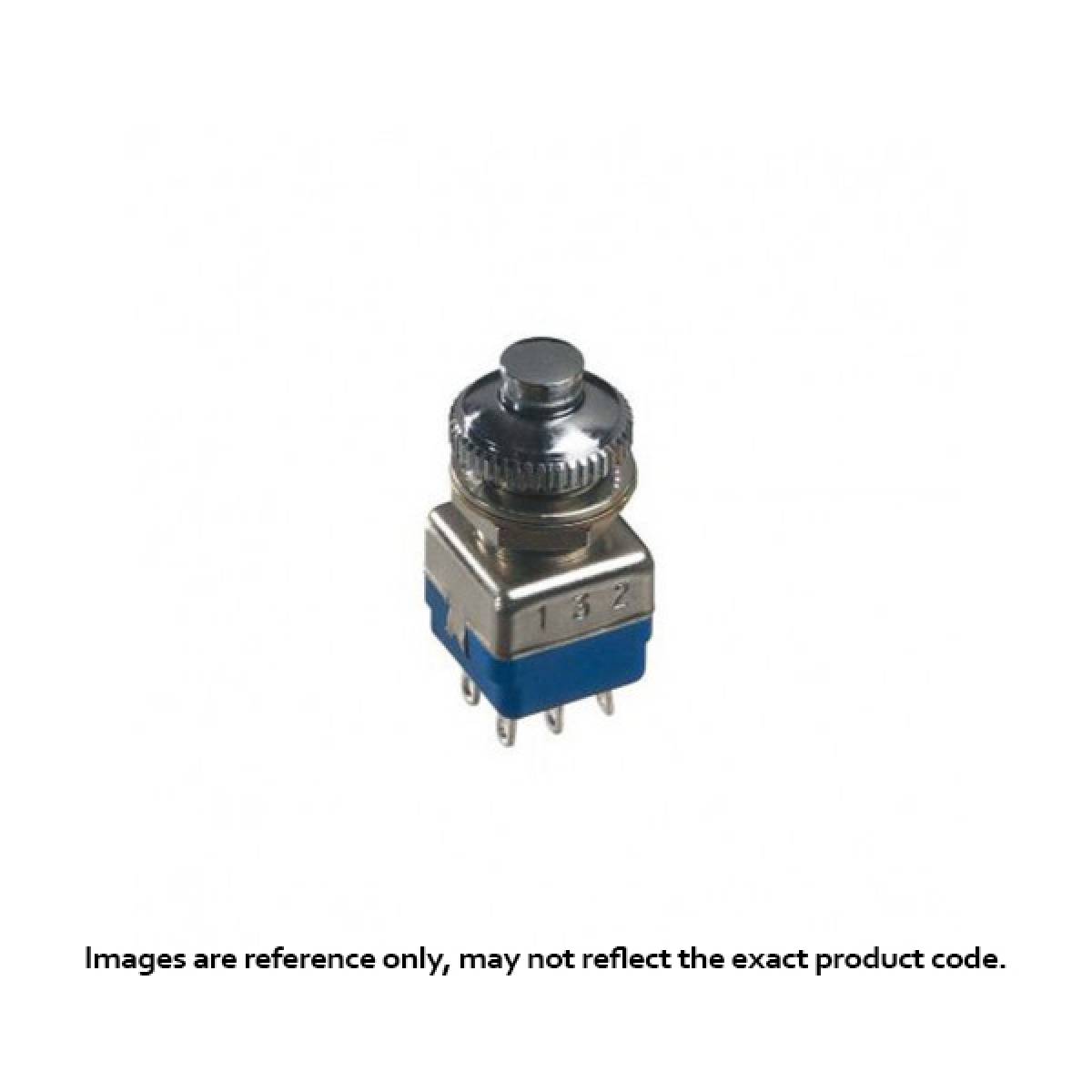

APEM 10400 Series Double Pole ONMOM Pushbutton

Professional pushbutton switches with treaded bushing dia.10 mm (.393)

MAIN FEATURES
Single and double pole momentary configurations
Solder lug terminals
Gold plated silver or coin silver contacts are available
Optional color caps
CECC approved
Available with matte black finish

10400 Series Datasheet

36.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	10400
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - MOM

We'll Call You

Description

GENERAL SPECIFICATION
• Torque : 1.50 Nm (1.106 Ft.lb) max. applied to nut
• Max. panel thickness : 3.5 mm (.138)

ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -40 °C to +85 °C

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 3 A 24 VDC
• Minimum load : 100 µA 10 mV
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
1,000 Veff. 50 Hz min. between terminals of the same pole
2,000 Veff. 50 Hz min. between terminals and frame
2,000 Veff. 50 Hz min. between terminals of adjacent poles
• Electrical life : 50,000 cycles

MATERIALS
• Case : diallylphthalate (DAP)
• Actuator : brass, chrome plated
• Bushing : brass, nickel plated
• Housing : brass, nickel plated
• Contacts :
- silver
- gold plated silver
• Terminal seal : epoxy

APPROVALS
CECC
