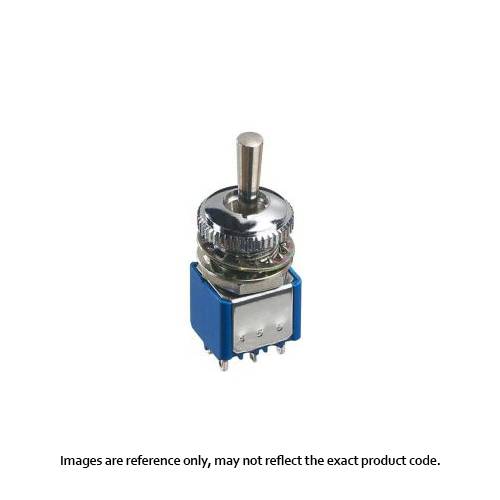

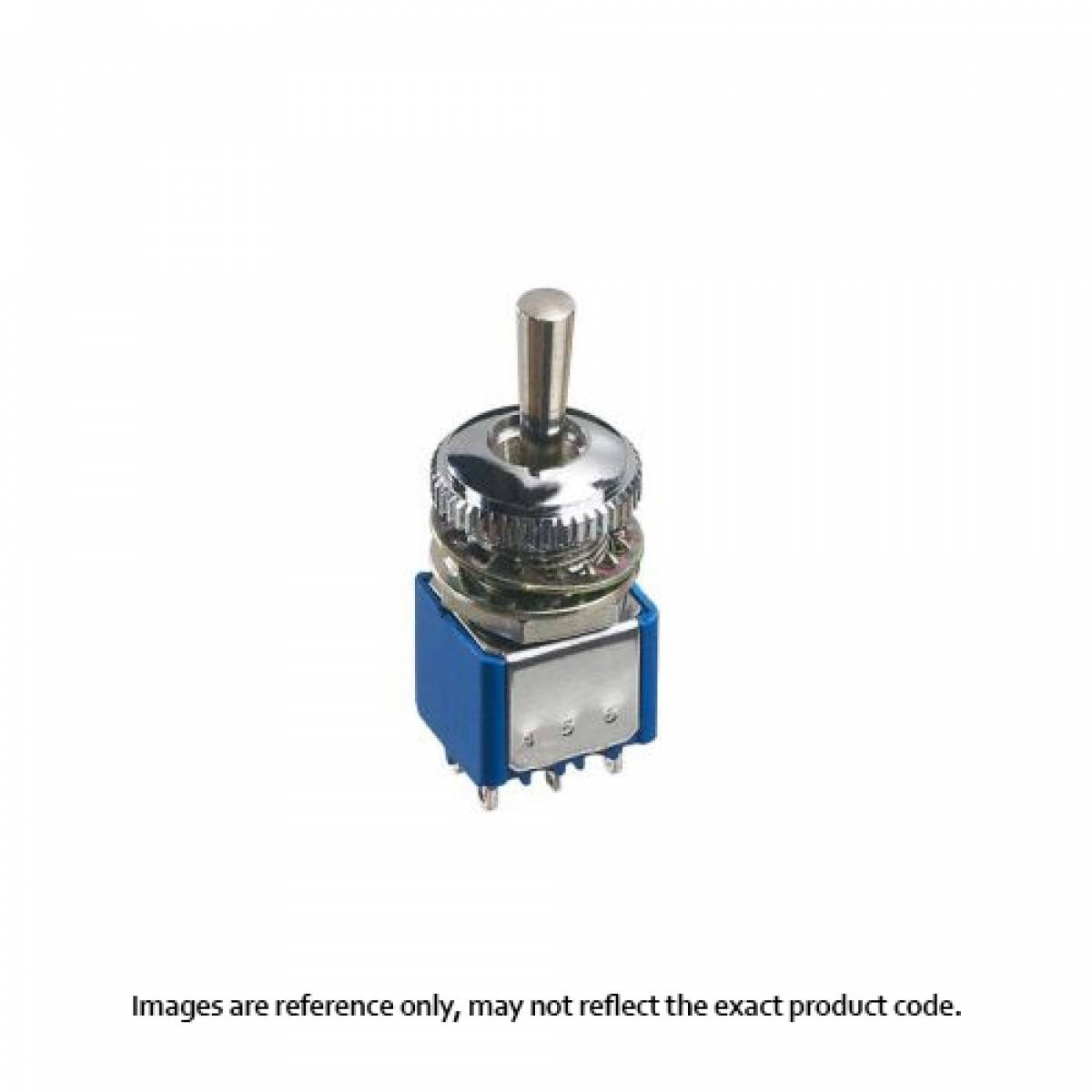

106492103

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.106 Ft.lb) max. applied to nut
• Max. panel thickness: 4 mm (.157)

ENVIRONMENTAL SPECIFICATIONS
• Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load: 3 A 24 VDC
• Minimum load: 100 µA 10 mV
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
1,000 Vrms 50 Hz min. between terminals of the same pole
2,000 Vrms 50 Hz min. between terminals and frame
2,000 Vrms 50 Hz min. between terminals of adjacent poles
• Electrical life : 50,000 cycles

MATERIALS
• Case: diallylphthalate (DAP) or high-temperature plastic material (UL94-V0)
• Actuator: brass, nickel plated
• Bushing: brass, nickel plated
• Housing: stainless steel
• Contacts:
- silver
- silver, gold plated
• Terminal seal: epoxy

APPROVALS
CECC
