Description

Brand APEM
Product Code12144AD2K
Stock Status73
Stock73

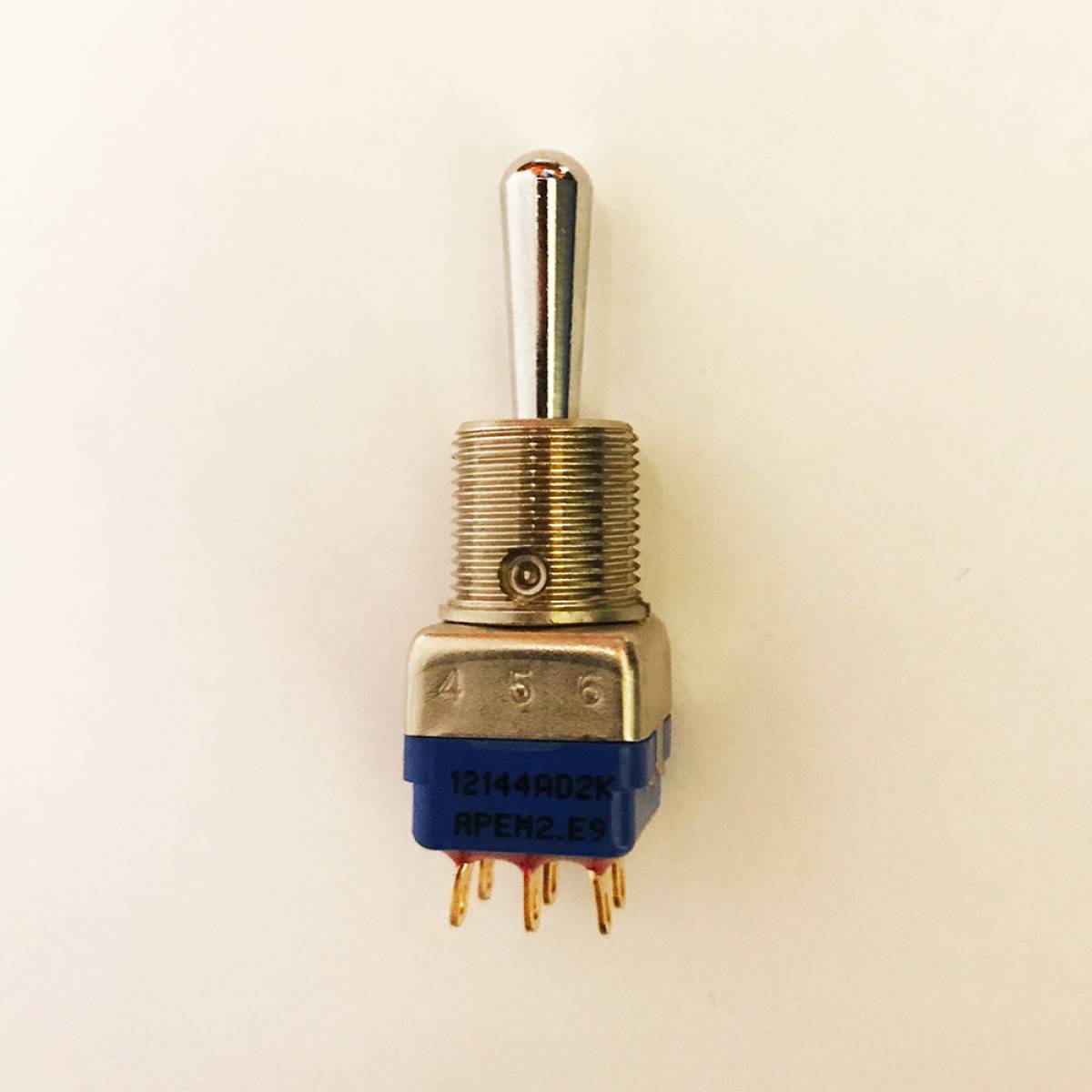

APEM 12000 Series Toggle Switch
Toggle switches specially manufactured for defense, telecommunications and other industrial applications. 1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved.
Several locking lever options.

MAIN FEATURES
Approvals: CECC 96201-005, CECC 96201-008, meeting the requirements of MIL standard (MIL 3950)
Robust switches for high specification environments
Toggle action on 2-position models giving smooth mechanical operation
Plastic material with high insulation resistance
Several front panel sealing options
Several locking lever options
Bright chrome, satin chrome or matt black finish
Upon request, each individual switch can be submitted to a low-level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, space, etc.).

12144AD2K 3D Drawing

12000 Series Datasheet

SERIES

409.56 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	45.51 €	455.10 €
25	43.34 €	1,083.50 €
50	36.19 €	1,809.50 €
100	24.83 €	2,483.00 €

Property Name	Property Value
SERIES	12000
TERMINALS AND BUSHINGS	Solder lug terminals
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON ON ON \| ON ON MOM \| MOM ON MOM
MOMENTARY FOR FUNCTION 4	Other Options(see sheet)
CONTACT MATERIALS	Gold plated silver (2 microns)
FINISH	Nickel plated
SEALING	Epoxy sealed terminals standard
FLUORESCENT TIP	None
LEVERS	Standart

We'll Call You

Description

GENERAL SPECIFICATION

• Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts

• Standard panel thickness: 4.5 mm (.177) max.

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- silver contacts (A-AD2-X780): 4 A 30 VDC

- gold contacts (D): 100 mA 30 VDC

• Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1.000 M? min. at 500 VDC

• Dielectric strength:

1,000 Vrms 50 Hz min. between terminals

2,000 Vrms 50 Hz min. between poles and between terminals and frame

• Contact bounce: 2 ms max.

MATERIALS

• Case: diallylphthalate (DAP)

• Actuator: brass, chrome plated

• Bushing: brass, nickel plated

• Housing: brass, nickel plated

• Contacts

A: silver

AD2: gold plated silver (2 microns gold)

X780: solid rivet - gold plated silver/nickel alloy

D: solid gold rivet

X910: silver/nickel alloy

• Terminal seal: epoxy

• AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.

APPROVALS

CECC
