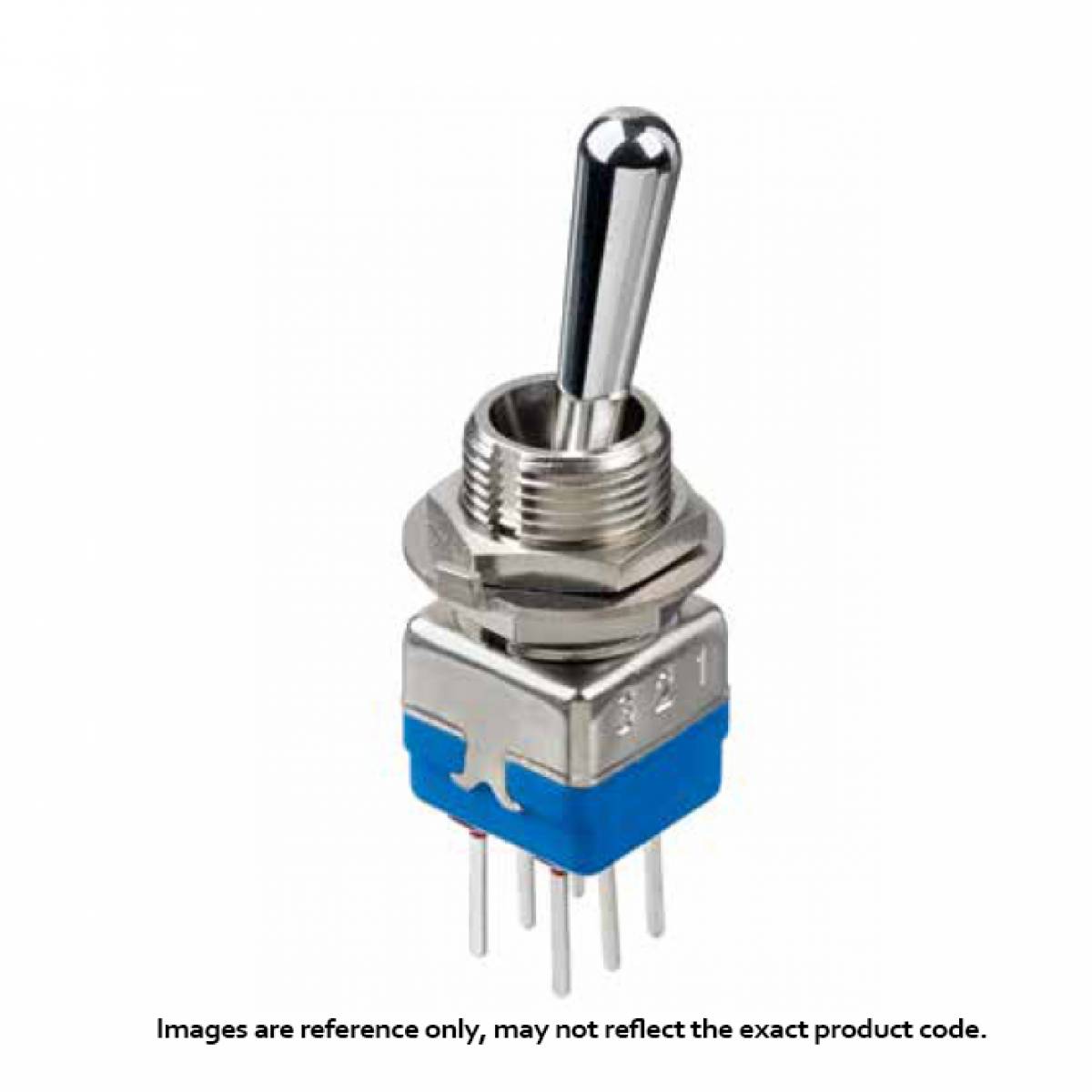

APEM 12000 Series 2 Pole ONON Toggle Switch
Toggle switches specially manufactured for defense, telecommunications and other industrial applications. 1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options. Bright chrome, satin chrome or matt black finish. CECC approved.
Several locking lever options.

MAIN FEATURES
Approvals: CECC 96201-005, CECC 96201-008, meeting the requirements of MIL standard (MIL 3950)
Robust switches for high specification environments
Toggle action on 2-position models giving smooth mechanical operation
Plastic material with high insulation resistance
Several front panel sealing options
Several locking lever options
Bright chrome, satin chrome or matt black finish
Upon request, each individual switch can be submitted to a low-level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, space, etc.)

12000 Series Datasheet

12146A 3D Drawing

SERIES

196.82 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	21.87 €	218.70 €
25	20.83 €	520.75 €
50	17.39 €	869.50 €
100	11.93 €	1,193.00 €

Property Name	Property Value
SERIES	12000
TERMINALS AND BUSHINGS	Solder lug terminals
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - ON
MOMENTARY FOR FUNCTION 4	Other Options(see sheet)
CONTACT MATERIALS	Silver
FINISH	Nickel plated
SEALING	Epoxy sealed terminals standard
FLUORESCENT TIP	None
LEVERS	Standart

We'll Call You

Tags: apem 12000 12146A toggle switch

GENERAL SPECIFICATION

• Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts

• Standard panel thickness: 4.5 mm (.177) max.

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- silver contacts (A-AD2-X780): 4 A 30 VDC

- gold contacts (D): 100 mA 30 VDC

• Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 µA 5 V min.

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1.000 M? min. at 500 VDC

• Dielectric strength:

1,000 Vrms 50 Hz min. between terminals

2,000 Vrms 50 Hz min. between poles and between terminals and frame

• Contact bounce: 2 ms max.

MATERIALS

• Case: diallylphthalate (DAP)

• Actuator: brass, chrome plated

• Bushing: brass, nickel plated

• Housing: brass, nickel plated

• Contacts

A: silver

AD2: gold plated silver (2 microns gold)

X780: solid rivet - gold plated silver/nickel alloy

D: solid gold rivet

X910: silver/nickel alloy

• Terminal seal: epoxy

• AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.

APPROVALS

CECC
