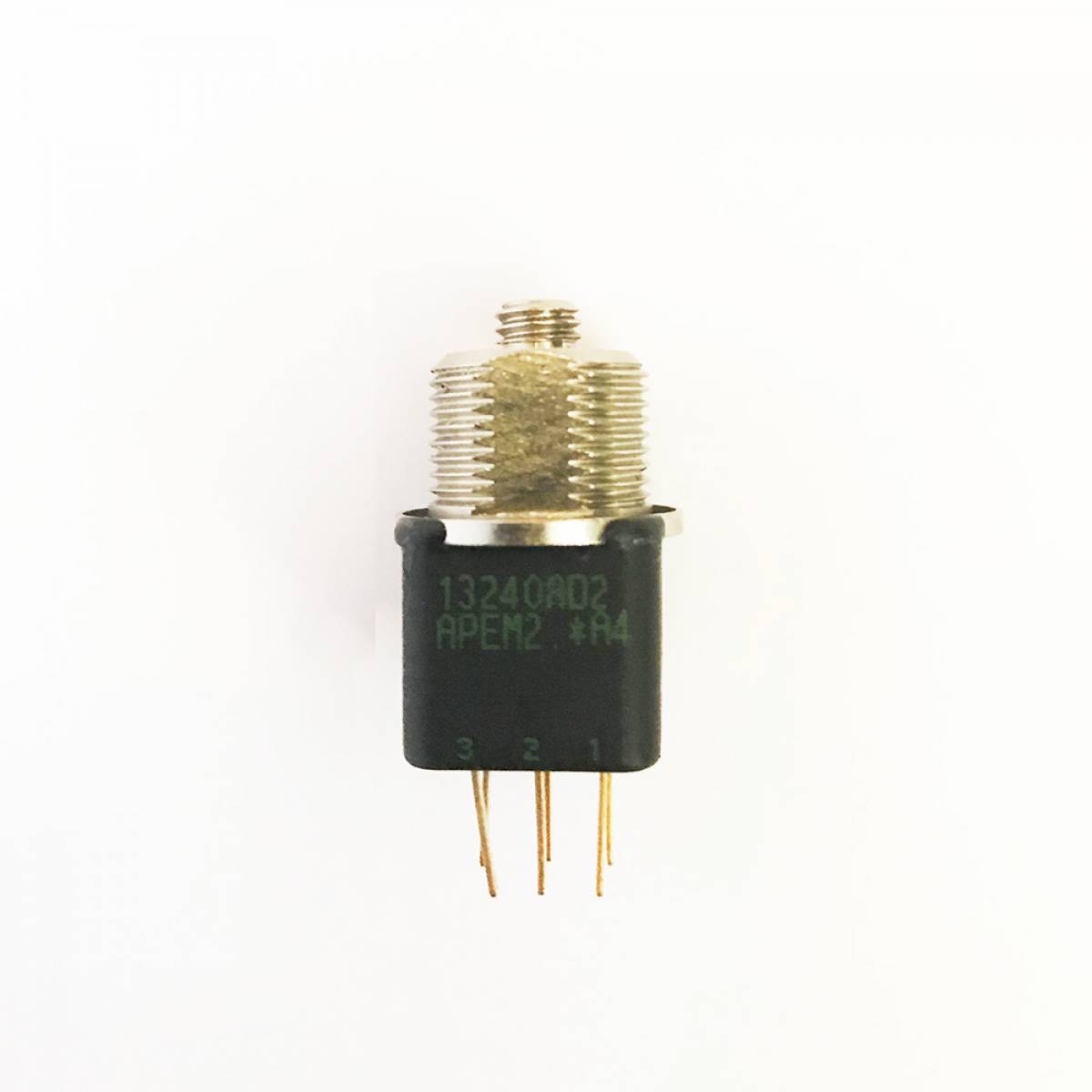

13240AD2-25X1156

Name: 13240AD2-25X1156
Brand: APEM
Price: 21600 € EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code13240AD225X1156
Stock StatusPre-order
Stock0

APEM 13000 Emergency Stop ButtonAPEM 13000 Emergency Stop Button

High reliability single pole and Double Poles momentary Pushbutton Switchs, with silver or gold plated contacts.

13000 Series Datasheet

13240AD225X1156 3D Drawings

216.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	13000
TERMINALS AND BUSHINGS	Straight PC terminals, bushing Ø 6,35 (1/4)
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - ON (PUSH-PULL)
TERMINALS	Solder lugs or straight PC depending on model
PLUNGERS	Standard for Ø 6,35 (1/4) bushing
FINISH	Bright chrome finish
SEALING	Epoxy sealed terminals standard
SPECIAL OPTIONS	No special requirement

We'll Call You

Tags: apem 13240AD225X1156 emergency stop Pushbutton Switch 12000

Description

GENERAL SPECIFICATION
• Total travel : 2 mm (.078)
• Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Shock test : 50 g - 11ms (IEC 68-2-27)
• Vibrations : 10-500 Hz - 10 g (IEC68-2-6)
• Operating temperature : -40 °C to +85 °C
• Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
• Salt spray test : 96 hours (IEC 68-2-11)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 4 A 28 VDC
• Minimum load : 10 mA 50 mV, 10 µA 5 VDC
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals
2,000 Vrms 50 Hz min. between pole
2,000 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life :
- At 4 A 28 VDC : 10,000 cycles
- At low level (50 mV 10 mA) : 150,000 cycles
MATERIALS
• Case : diallylphthalate (DAP) with PBT external shell (epoxy sealed)
• Actuator : brass, black chrome
• Bushing : brass, black chrome plated
• Contacts : silver inlay - gold plated over nickel barrier
