134454X778

Name: 134454X778
Brand: APEM
Price: 87917 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code134454X778
Stock Status839
Stock839

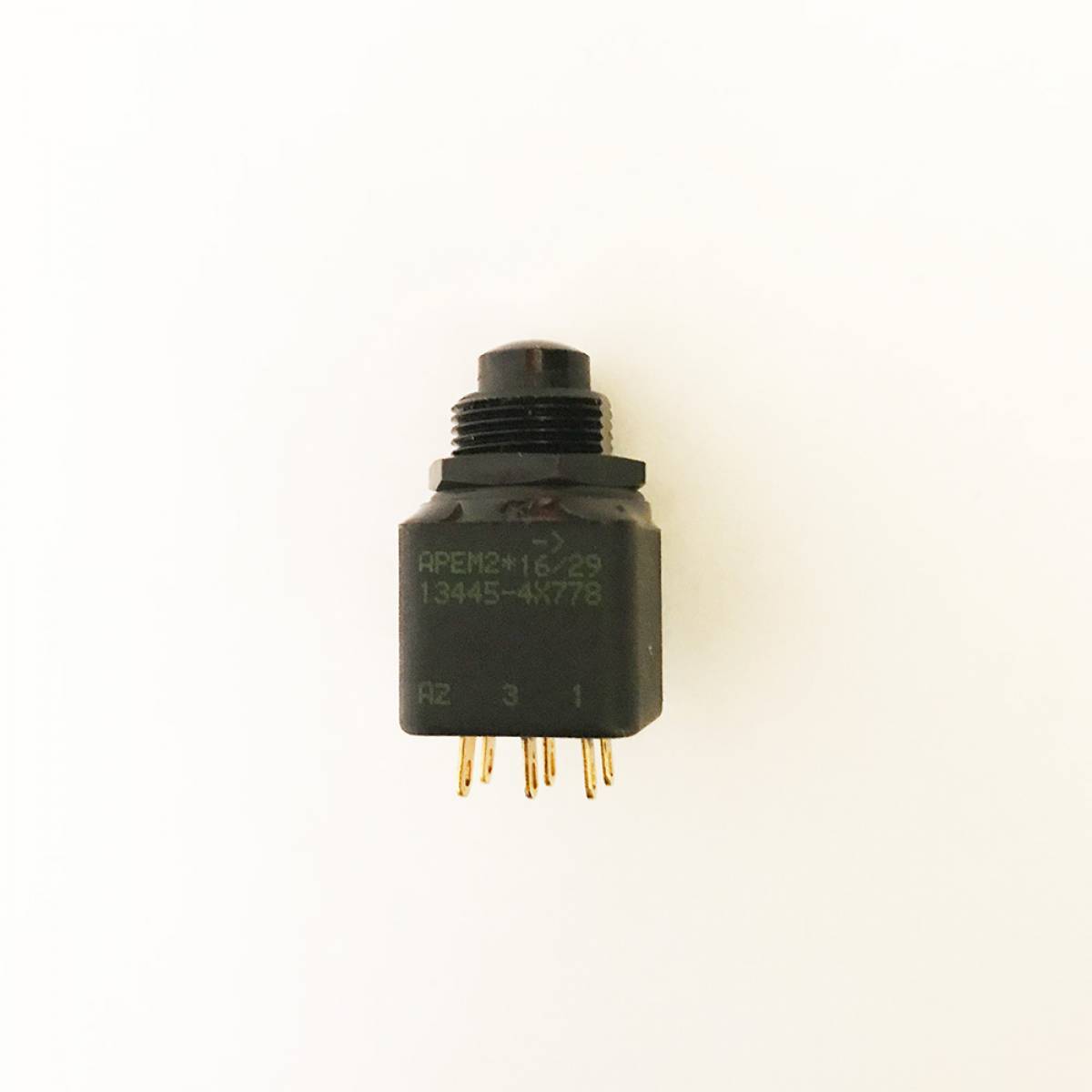

APEM 13000X778 Series Momentary Button

High reliability single pole and Double Poles momentary Pushbutton Switchs, with silver or gold plated contacts.

13000X778 Series Datasheet

134454X778 3D Drawing

SERIES

879.17 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	97.69 €	976.90 €
25	93.03 €	2,325.75 €
50	77.68 €	3,884.00 €

Property Name	Property Value
SERIES	13000X778
SERIES	13000X778
TERMINALS AND BUSHINGS	Solder lug terminals, threaded bushing Ø 11.9 (15/32)
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - MOM
PLUNGERS	4 mm (.157) long
X778	High performance fully sealed black switches.

We'll Call You

Tags: apem 134454X778 13000X778 series pushbutton switch

Description

GENERAL SPECIFICATION
• Total travel : 2 mm (.078)
• Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Shock test : 50 g - 11ms (IEC 68-2-27)
• Vibrations : 10-500 Hz - 10 g (IEC68-2-6)
• Operating temperature : -40 °C to +85 °C
• Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3)
• Salt spray test : 96 hours (IEC 68-2-11)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 4 A 28 VDC
• Minimum load : 10 mA 50 mV, 10 µA 5 VDC
• Initial contact resistance : 10 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals
2,000 Vrms 50 Hz min. between poles
2,000 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life :
- At 4 A 28 VDC : 10,000 cycles
- At low level (50 mV 10 mA) : 150,000 cycles
MATERIALS
• Case : diallylphthalate (DAP) with PBT external shell (epoxy sealed)
• Actuator : brass, black chrome
• Bushing : brass, black chrome plated
• Contacts : silver inlay - gold plated over nickel barrier
