18235WWCD5

Print this page

Description

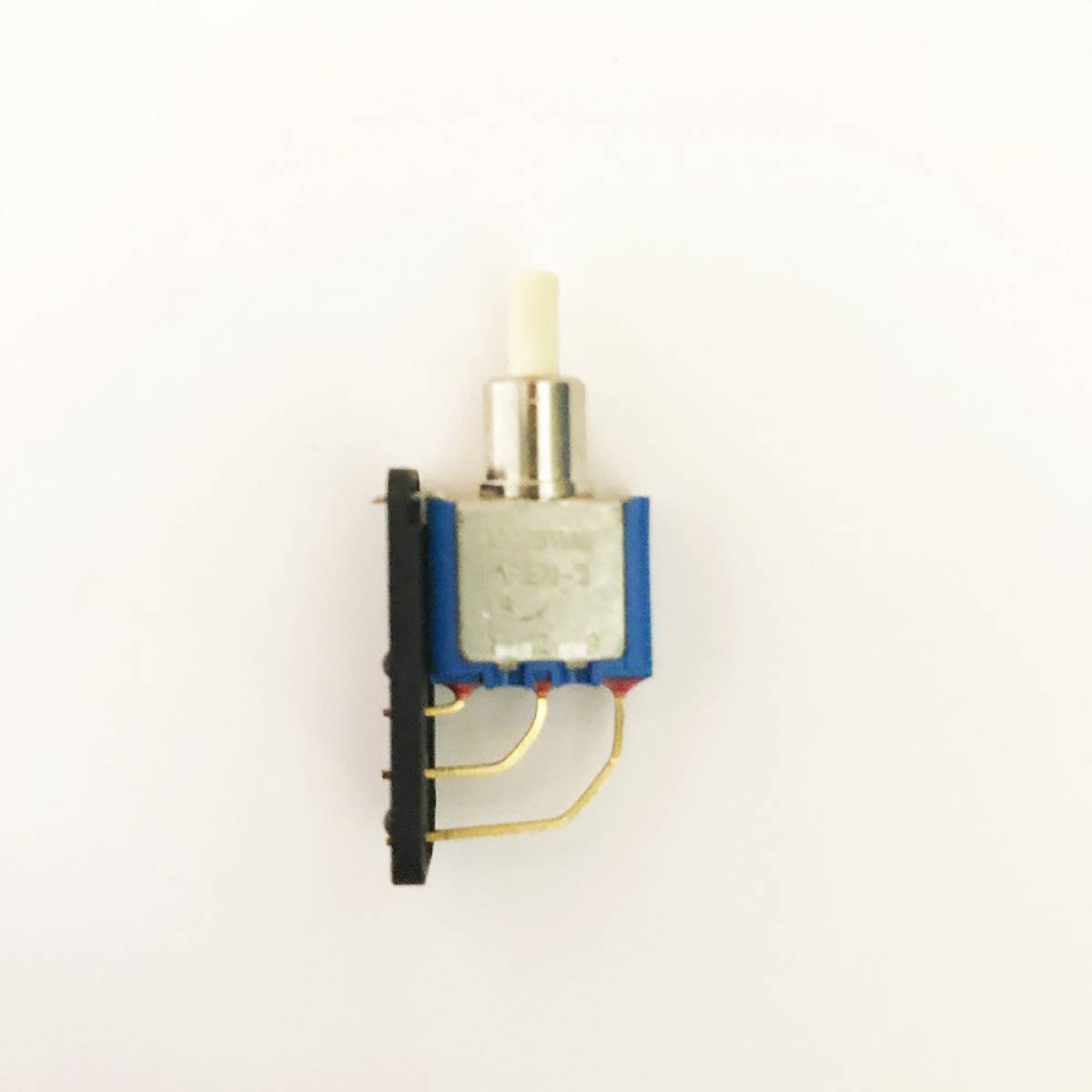

APEM 18000 Series PushButton

Snap-action momentary pushbutton switches with many terminal, mounting, and special option selections.

SERIES

62.88 €

Property Name	Property Value
SERIES	18000
TERMINALS AND BUSHINGS	Straight PC terminals with Ø 6.35 (1/4) threaded bushings + bracket or right angle terminals with plain bushing
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON - MOM
TERMINALS	Right angle, vertical mounting
CONTACT MATERIALS	Brass, gold plated
PLUNGERS	Ø 3.1 (.122), length 6.3 mm (.248)

We'll Call You

Tags: apem 18000 pushbutton 18235WWCD5

GENERAL SPECIFICATION

• Total travel : 0.5 mm (.019)

• Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut

• Soldering : 300 °C, 3 sec. max.

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -30 °C to +65 °C

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

- gold plated brass contacts : 100 mA - 30 VDC

- gold plated silver contacts : 1 A 30 VDC

• Initial contact resistance : 50 m? max.

• Insulation resistance : 1,000 M? min.

• Dielectric strength : 1,000 Vrms 50 Hz min.

• Electrical life : 60,000 cycles at full load

MATERIALS

• Case : PBT

• Actuator : polyamide, glass filled

• Bushing : brass, nickel plated

• Housing : stainless steel

• Bracket : tin plated steel

• Contacts

AD : silver, gold plated

CD : brass, gold plated

• Terminal seal : epoxy
