1US0931506 NTS2

Print this page

Description

Brand APEM
Product Code1US0931506
Stock Status513
Stock513

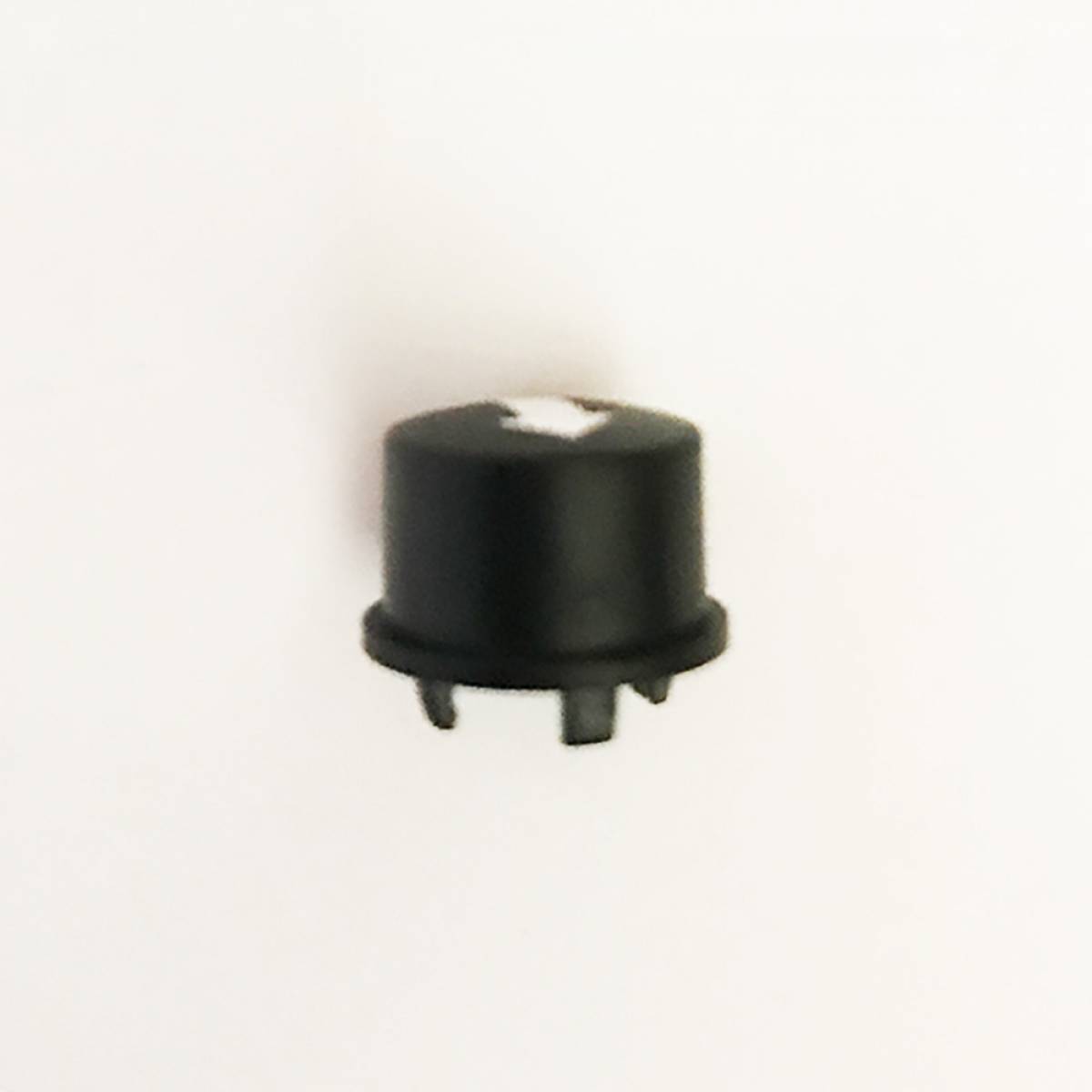

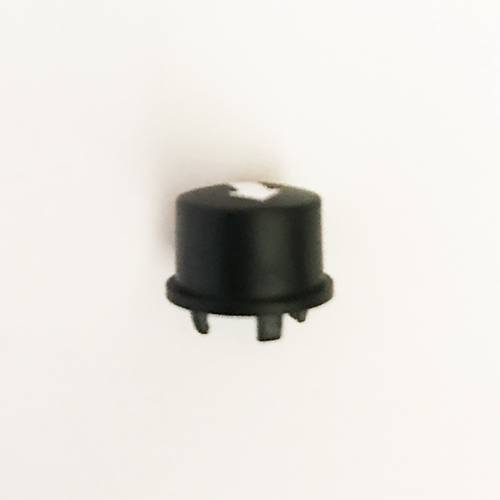

MEC Switch Black with White \'ok\' Symbol Cap

A round cap with a rounded top and optional front panel sealing to IP67.
1US cap series is mounted on Multimec™ 5G series.

1US Datasheet

1US0931506 3D Drawing

4.80 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Description

GENERAL SPECIFICATION

• Ø10.6 mm

• h=14.9 mm

• Standard colors:

-solid colors: blue, grey, red & black

-transparent color: frosted white

• Panel cut-out: Ø11.0 mm

ENVIRONMENTAL SPECIFICATIONS

• Optional front panel sealing to IP67 with 1UW

• Temperature range:

-solid cap: -40/+65 °C

-transparent cap: -40/+85 °C

MATERIALS

• Cap:

-solid color: ABS UL94HB

-illuminated: polycarbonate UL94HB
