3546021N002

Print this page

Description

Brand APEM
Product Code3546021N002
Stock Status105
Stock105

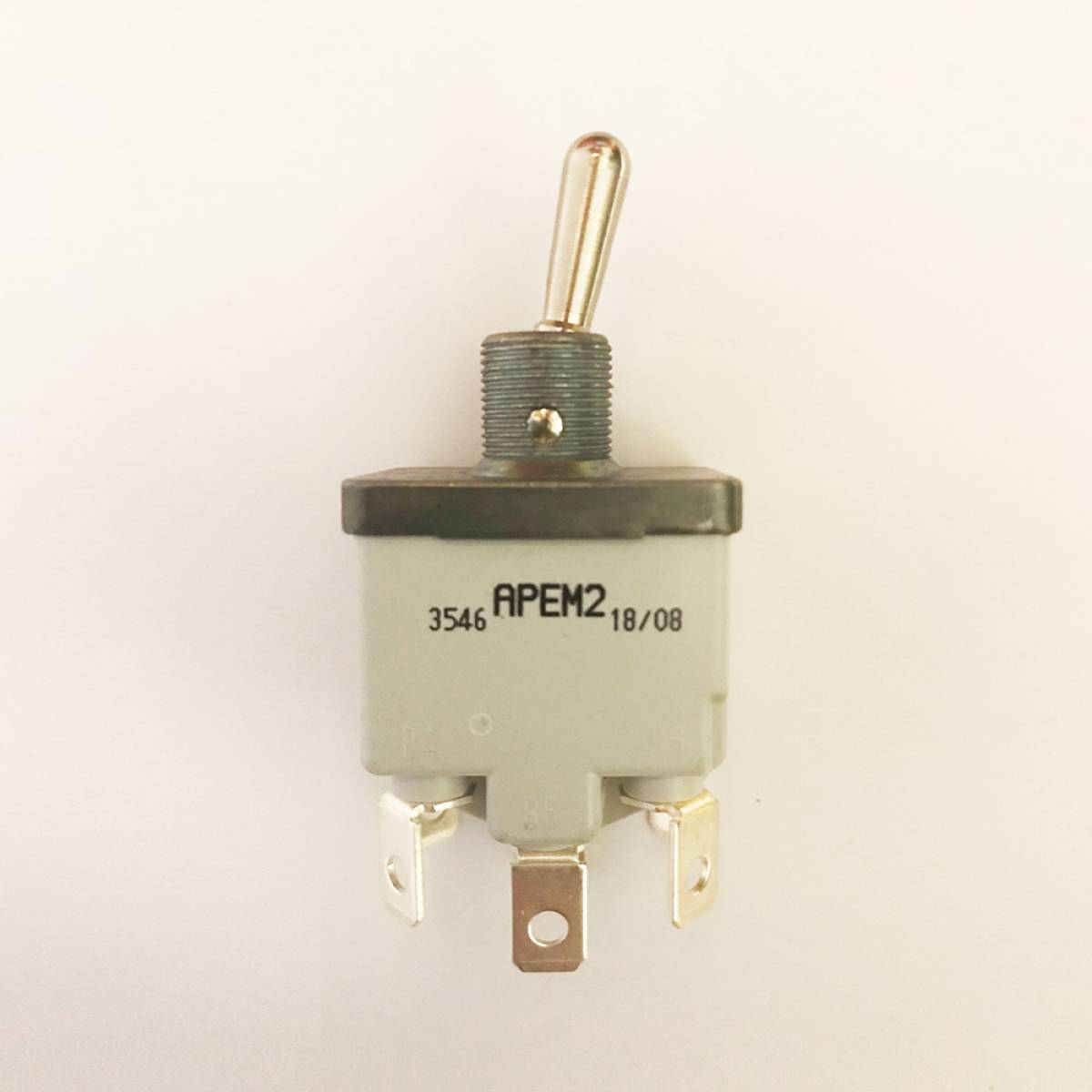

APEM 3500 Series 2 Pole ONON Toggle Switch

1 and 2 pole configurations available with solder lug, screw or quick connect terminals.
Toggle switches designed for outdoor applications. Frontal sealing to IP67 and IP69K
by a silicone membrane. Rear sealing to IP64 provided by moulded-in terminals.

Main features

Completely sealed switches withstanding 0.1 bar pressure
Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting, add washer U60)
Rear sealing to IP64 provided by moulded-in terminal inserts
Approved to European standards CECC 96000
3 types of terminals
Many lever styles available

3500 Series Datasheet

SERIES

265.34 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	29.48 €	294.80 €
105	24.09 €	2,529.45 €
255	21.38 €	5,451.90 €
510	20.86 €	10,638.60 €
750	20.44 €	15,330.00 €
1005	18.81 €	18,904.05 €

Property Name	Property Value
SERIES	3500
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - ON
TERMINALS	Solder lug/quick-connect
LEVER STYLES	Standard, length 17.5 mm (.688) or locking, length 20 mm (.787)
LEVER FINISH	Bright nickel
LEVER LOCKING STYLES	No locking
AGENCY APPROVALS	NONE
ACCESSORIES	2 hex nuts, 1 locking ring and 1 lockwasher (non-sealed mounting)
LOCKING LEVER SPECIAL FINISH	NONE

We'll Call You

Description

GENERAL SPECIFICATION

• Mechanical life: 40,000 cycles

• Torque: 2 Nm (1.47 Ft.lb) max. applied to nut

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

• Moisture resistance: 56 days

ELECTRICAL SPECIFICATIONS

• Initial contact resistance: 10 m? max. at 1 A 2 VDC

• Insulation resistance: 1,000 M?

• Dielectric strength: 2,500 Vrms 50 Hz min. between terminals

3,000 Vrms 50 Hz min. between terminals and frame

MATERIALS

• Case: mineral filled polyester UL94-V0

• Bushing and cover: zamak

• Actuator: brass, nickel or chrome plated, or anodized aluminum

• Contacts: silver alloy

APPROVALS

CECC
