3636NF2

Print this page

Description

Brand APEM
Product Code3636NF2
Stock Status3287
Stock3287

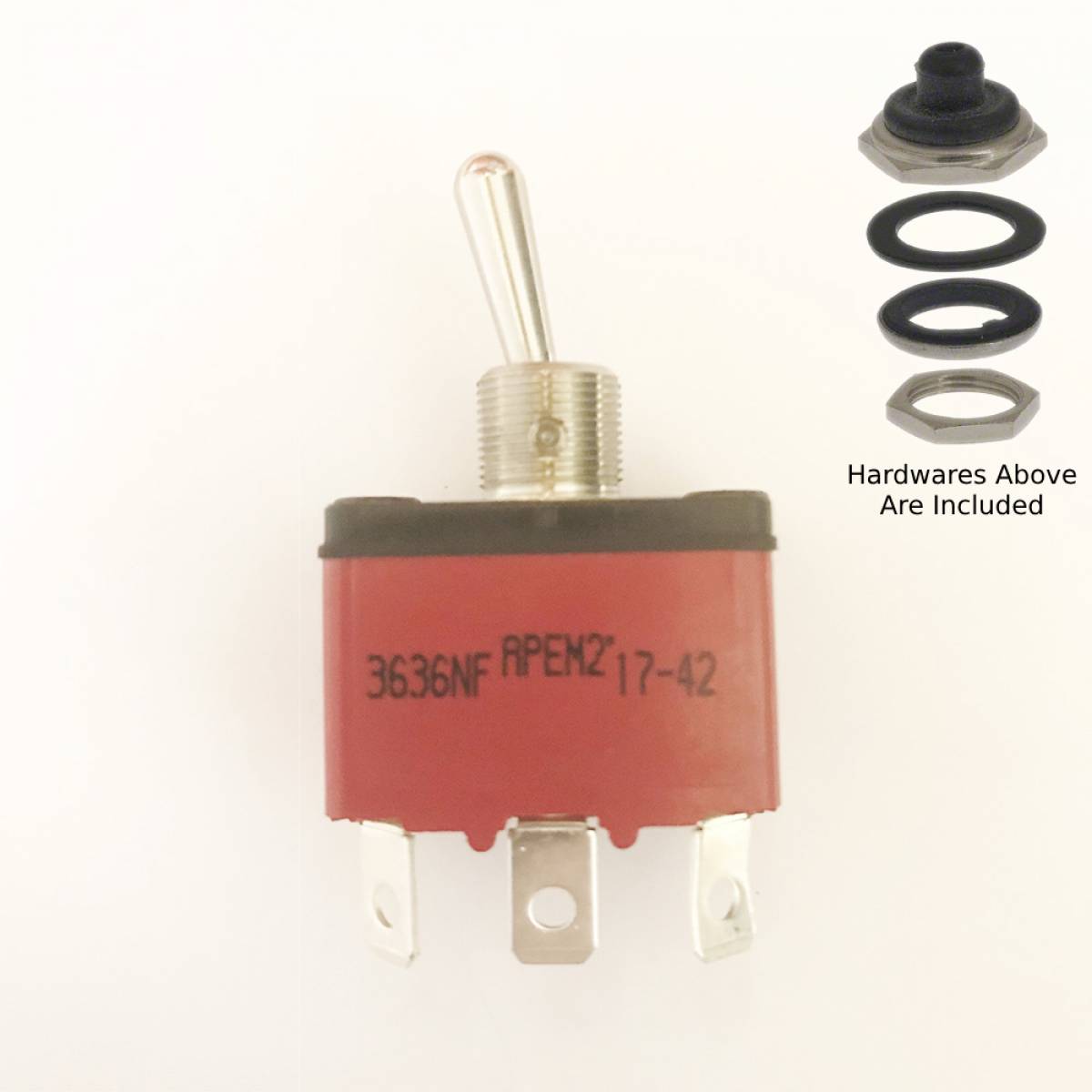

APEM 3600NF Series Single Pole ONON Toggle Switch

Sealed industrial toggle switches for outdoor applications. The 3600NF toggle switches are in 1 and 2 pole configurations.

MAIN FEATURES
Solder lug, quick-connect or screw terminals
Solid silver contacts
O-ring seal, molded–in terminals
12 amp rating
UL approval on select models
numerous electrical configurations

3600 Series Datasheet

SERIES

121.28 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	13.48 €	337.00 €
100	11.01 €	1,101.00 €
250	9.77 €	2,442.50 €
500	9.54 €	4,770.00 €
750	9.34 €	7,005.00 €
1000	8.60 €	8,600.00 €

Property Name	Property Value
SERIES	3600NF
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON - ON
TERMINALS	Solder lug/quick-connect

We'll Call You

Description

GENERAL SPECIFICATION

• Sealing to IP67 according to IEC 60529

• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut

• Panel thickness: 2 mm (.079) max. with all accessories

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature: -40°C to +85°C (-40°F to 185°F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load: 12A 28VDC

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1,000 M? min. at 500VDC

• Dielectric strength:

2,500 Vrms 50 Hz min. between terminals

3,000 Vrms 50 Hz min. between terminals and frame

• Electrical life: 10,000 cycles at full load

MATERIALS

• Case: phenolic resin

• Actuator: brass, nickel plated

• Bushing: brass, nickel plated

• Contacts: solid silver

APPROVALS

UL
