3639NF2

Name: 3639NF2
Brand: APEM
Price: 12486 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code3639NF2
Stock Status3557
Stock3557

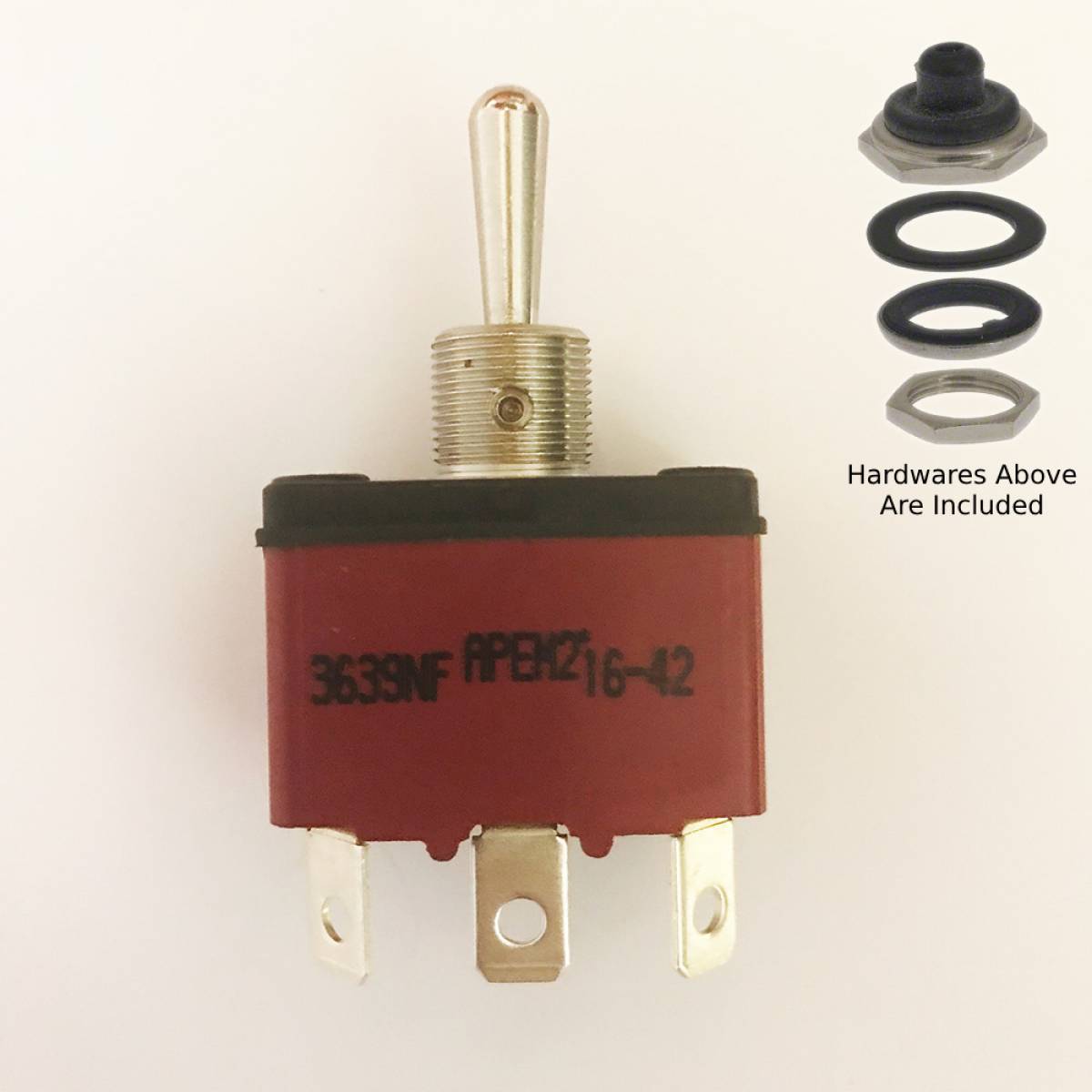

APEM 3600NF Series Single Pole ONOFFON Toggle Switch

Sealed industrial toggle switches for outdoor applications. The 3600NF toggle switches are in 1 and 2 pole configurations.

MAIN FEATURES
Solder lug, quick-connect or screw terminals
Solid silver contacts
O-ring seal, molded–in terminals
12 amp rating
UL approval on select models
numerous electrical configurations

3639NF2 3D Drawing

3600NF Series Datasheet

SERIES

124.86 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	13.87 €	346.75 €
100	11.33 €	1,133.00 €
250	10.06 €	2,515.00 €
500	9.82 €	4,910.00 €
750	9.62 €	7,215.00 €
1000	8.85 €	8,850.00 €

Property Name	Property Value
SERIES	3600NF
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON OFF ON
TERMINALS	Solder lug/quick-connect

We'll Call You

Tags: apem 3639NF2 3600NF series toggle switch

Description

GENERAL SPECIFICATION
• Sealing to IP67 according to IEC 60529
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 2 mm (.079) max. with all accessories
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature: -40°C to +85°C (-40°F to 185°F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load: 12A 28VDC
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500VDC
• Dielectric strength:
2,500 Vrms 50 Hz min. between terminals
3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: phenolic resin
• Actuator: brass, nickel plated
• Bushing: brass, nickel plated
• Contacts: solid silver
APPROVALS
UL
