5646A2V

Name: 5646A2V
Brand: APEM
Price: 10460 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code5646A2V
Stock Status29
Stock29

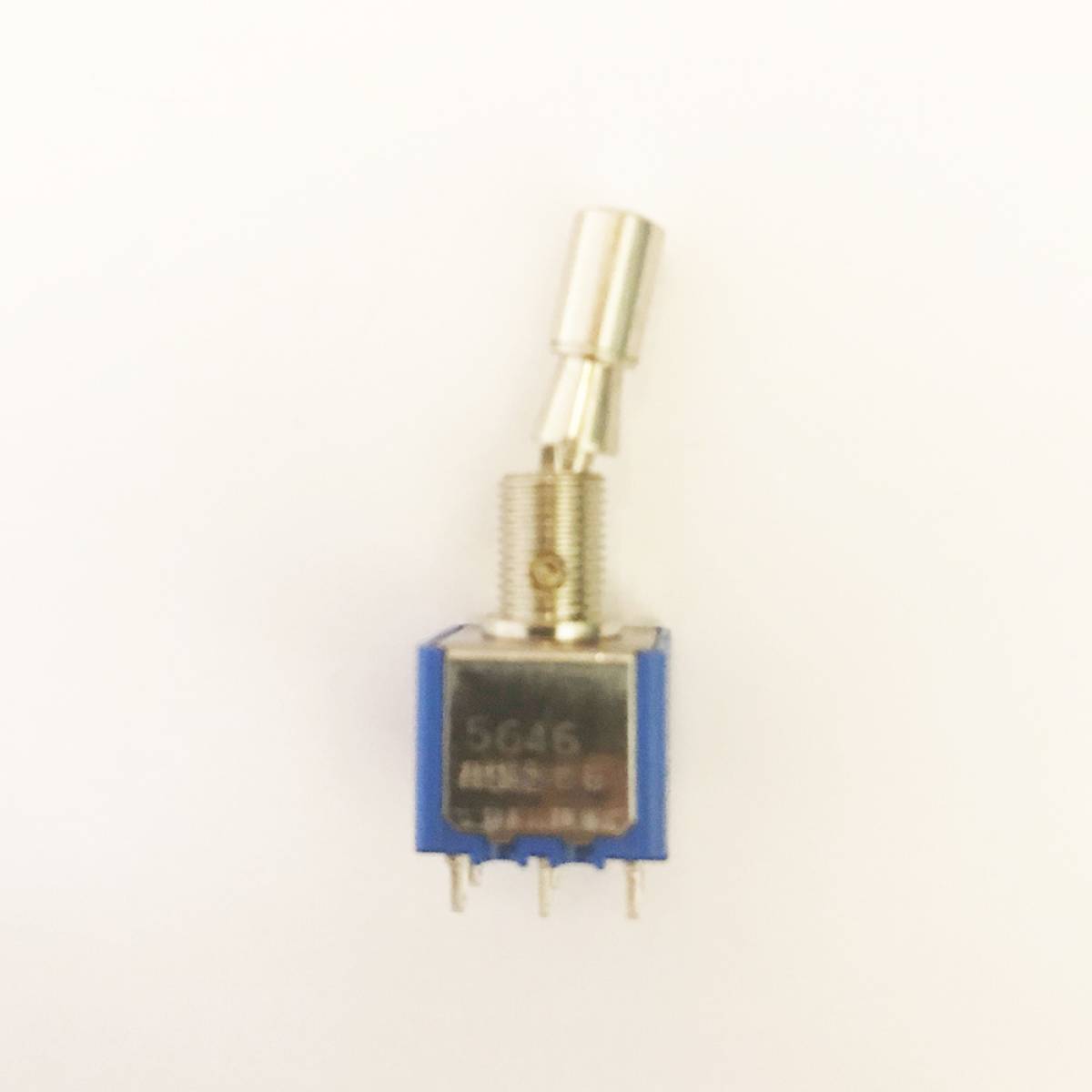

APEM 5000 Series Double Pole Locked ONON Toggle Switch

The widest range in miniature toggle switches diameter 6,35 mm available in a wide range models & amp options..

MAIN FEATURES
17 actuators including toggles, paddle levers and locking levers in different lengths.
5 contact materials from dry circuit to 6A 125VAC and high inrush up to 120A 2 ms.
8 functions including maintained and momentary versions
1 to 4 pole configurations.
12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap.
3 types of finish including military black
4 approvals (UL - CSA - VDE - CECC)
4 types of sealing for terminal or front panel requirements.
Numerous accessories available for actuator and bushing options.

5000 Series Datasheet

5646A2V 3D Drawing

SERIES

104.60 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
50	11.62 €	581.00 €
100	7.25 €	725.00 €
1000	5.47 €	5,470.00 €

Property Name	Property Value
SERIES	5000
TERMINALS AND BUSHINGS	Solder lug terminals
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - ON
TERMINALS	Solder lugs or straight PC depending on model
CONNECTIONS FOR FUNCTION 4	Not Function 4(See Sheet)
MOMENTARY FOR FUNCTION 4	Other Options(see sheet)
CONTACT MATERIALS	Silver
FINISH	Nickel plated
SEALING	No sealing except where standard
FLUORESCENT TIP	None
LEVERS	10.5 (.413) (threaded bushing or plain bushing)

We'll Call You

Tags: apem 5000 double pole toggle switch 5646A2V

Description

GENERAL SPECIFICATION
• Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
• Panel thickness: 2.5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut
• Low level or mechanical life: 100,000 cycles
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature: -40°C to +85°C (-40°F to 185°F)
ELECTRICAL SPECIFICATIONS
• For inductive, lamp or capacitive load, consult factory.
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1,000 MΩ min. at 500VDC
• Dielectric strength:
1,000 Vrms 50 Hz min. between terminals
1,500 Vrms 50 Hz min. between poles
1,500 Vrms 50 Hz min. between terminals and frame
• Contact bounce: 2 ms max.
• Electrical life at full load:
50,000 cycles for single and double pole 40,000 cycles for 3 pole
30,000 cycles for 4 pole
MATERIALS
• Case: diallylphthalate (DAP) or high temperature plastic material (UL94-V0)
• Actuator: brass, nickel plated
• Paddles: UL94HB polyamide
• Lever caps: vinyl
• Bushing: brass, nickel plated
• Housing: stainless steel or steel tin plated
• Contacts A: silver
AD: silver, gold plated
CD: brass, gold plated
X814: for peak currrents, see “Special options”.
• Terminal seal: époxy
APPROVALS
CECC CSA UL
