637H/2

Print this page

Description

Brand APEM
Product Code637H2
Stock Status1450
Stock1450

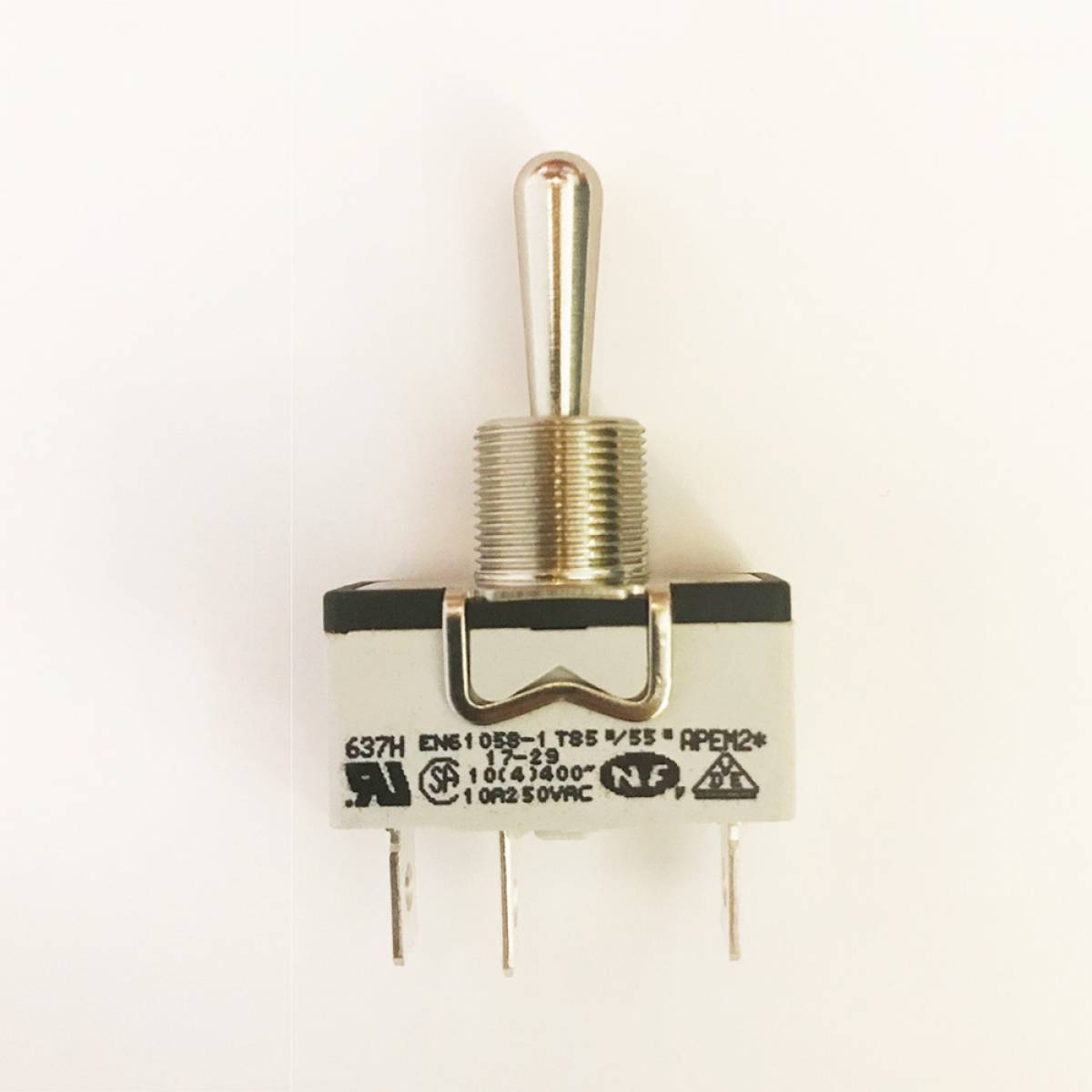

APEM 600H Series Single Pole MOMOFFMOM Toggle Switch

Industrial toggle switches with high amperage and metal or insulated lever. The 600 series
are manufactured from a single piece of metal, increasing the mechanical strength.
MAIN FEATURES
Construction: Terminal and contact support are manufactured from a single piece of metal. The contacts are
resistance-welded to the terminal for increased mechanical strength.
Rating: These switches are suitable for motor loads and power applications up to 15 A 250 VAC or 10 A 400
VACMetal or insulated lever
UL, CSA and NF-VDE (EN 61058-1) approved

637H2 3D Drawing

600H Series Datasheet

SERIES

39.65 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	4.41 €	110.25 €
100	3.60 €	360.00 €
250	3.19 €	797.50 €
500	3.12 €	1,560.00 €
750	3.05 €	2,287.50 €
1000	2.81 €	2,810.00 €

Property Name	Property Value
SERIES	600H
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	MOM OFF MOM
CONTACT	For H-NH Series
ACTUATOR AND TERMINALS	Metal lever, solder lug/quickconnect terminals

We'll Call You

Description

GENERAL SPECIFICATION

• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut

• Panel thickness: 4.5 mm (.177) max. between 2 nuts

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage ratings: see full data sheet

• Peak current: 30 A max. during 1/2 sine, 250 VAC

• Initial contact resistance: 10 m? max.

• Insulation resistance: 1,000 M? min. at 500 VDC

• Dielectric strength:

2,000 Vrms 50 Hz min. between terminals

2,500 Vrms 50 Hz min. between terminals and frame

• Electrical life: 10,000 cycles at full load

MATERIALS

• Case: polyester UL94-V0

• Actuator :

- 600H: brass, nickel plated

- 600NH: black polyamide

• Bushing: brass, nickel plated

• Contacts: silver/nickel alloy

APPROVALS

CSA NF UL VDE
