Description
  • Brand APEM
  • Product Code8BE2SBB7500
  • Stock Status1
  • Stock1

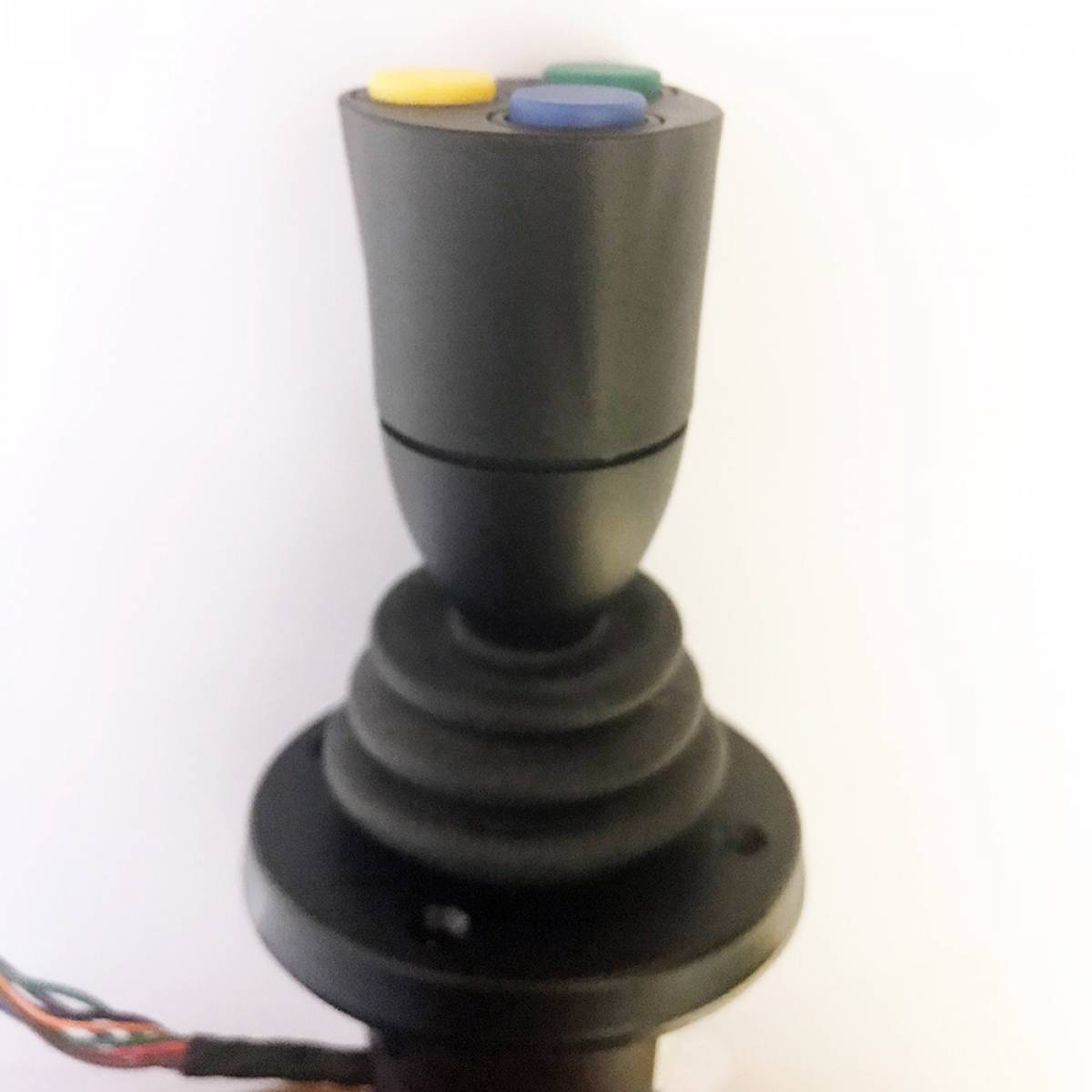

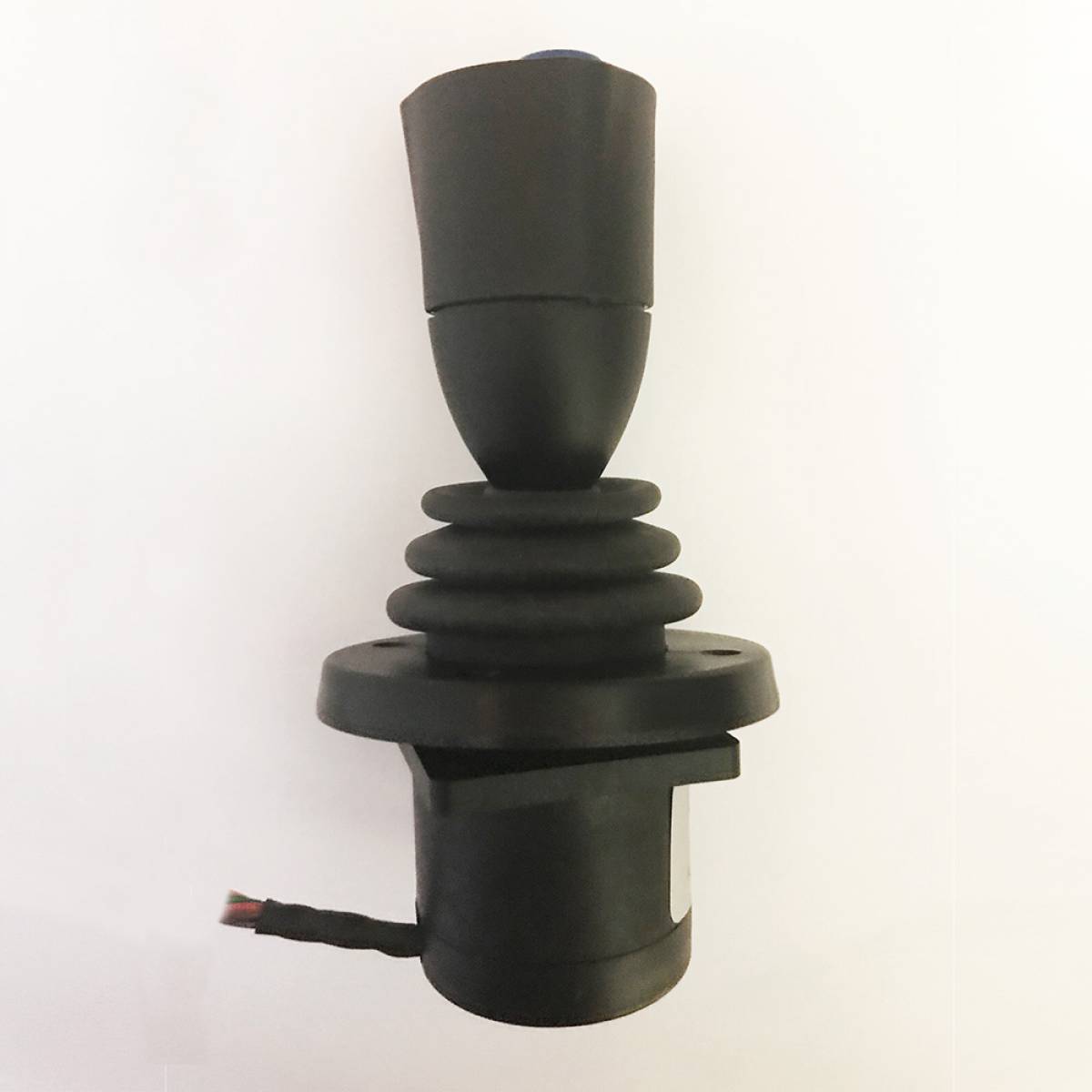

APEM 8000 Series 2 Axis 3 Button Switch Joystick

The 8000 Series is a family of rugged switch joysticks.
Based on the proven mechanics of the 9000 Series,
the 8000 Series utilizes high-quality microswitches
to provide a range of possible outputs, including the option
of progressive switching on a single axis for dual speed control.

MAIN FEATURES
One or two axis
Optional center detect microswitch
Wide range of handles options
Up to 1AMP operation
Gold plated contacts
Single step or progressive switching
420.00 €
Piece
Piece Unit price Total
Property Name Property Value
SERIES 8000
SERIES 8000
AXIS Two
SWITCHING Two Axis, Single Pole
CENTER DETECT Not fitted
LIMITER Square
HANDLE Three Button
BEZEL Circular D.I(Drop In Mounting)
BOOT Standard
MODIFIER None
We'll Call You


Thank you,
We will contact you as soon as possible

Send
  • GENERAL SPECIFICATION
    • One or two axis
    • Optional center detect microswitch
    • Wide range of handles options
    • Weight: 98 Grams (0.20lb)

    ENVIRONMENTAL SPECIFICATIONS
    • Temperature Range: -25°C to +80°C (-13°F to +76°F)
    • Above Panel Seal: IP65

    ELECTRICAL SPECIFICATIONS
    • Maximum Voltage: 125VAC
    • Current Rating: To 1A
    • Switch Contacts: Gold Plated

    MATERIALS
    • Body Material: Glass Reinforced ABS
    • Shaft Diameter: 5mm (0.20in)
    • Gimbal Pivot: Acetal & Hardened Steel
    • Shaft Material: Stainless Steel
    • Other Materials: Brass, Acetal, Nylon
    • Boot: Neoprene

    MECHANICAL SPECIFICATIONS
    • Mechanical Life Cycles: > 1 Million Operations
    • Operating Deflection: ±18º
