A01ESDF2

Print this page

Description

Brand APEM
Product CodeA01ESDF2
Stock Status10
Stock10

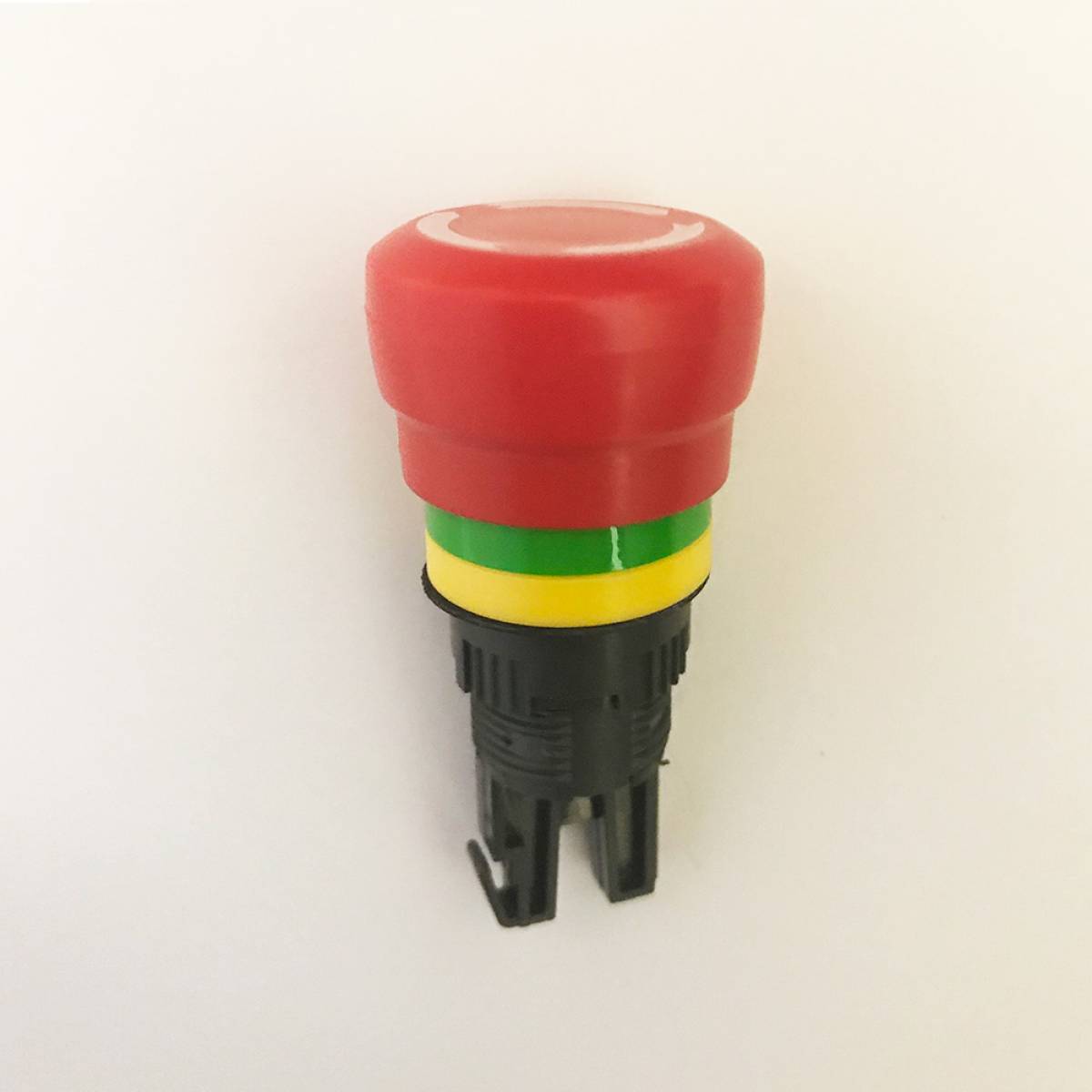

APEM Emergency Stop Switch

A01ES-D series emergency stops is ergonomically designed for the users.
With 4 actuator styles featuring a compact and modern design (dia.16 mm),
these emergency stops are safe and easy to operate (Push to shut-off, twist to release)
and feature green locked/unlocked status indicators for a quick and easy visual status control.
The A01ES-D series is certified EN60947-5-5 and is IP65 front sealed.

MAIN FEATURES :
single and double pole positive break
maximum current/voltage rating : AC-15, 1.5 A 250 VAC, 6 A 250 VAC
Operating temperature : -20 °C / +55 °C
IP65 front panel sealing
Electrical and mechanical life : 6,050 cycles

A01ESD Series Datasheet

A01ESDF2 3D Drawing

SERIES

103.61 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
20	11.51 €	230.20 €
100	10.76 €	1,076.00 €
500	9.89 €	4,945.00 €
1000	9.02 €	9,020.00 €

Property Name	Property Value
SERIES	A01ES
ACTUATOR	Smooth

We'll Call You

Description

GENERAL SPECIFICATION

• Panel thickness : 6 mm (.236) max.

• Mechanical life : 6,050 cycles

• Operating force : 18 to 20 N

• Soldering : 350 °C, 5 seconds (IEC 68-2-2-20Tb, method 2)

• Switch terminals : Solder/ Faston 2.8 mm (.110) (IEC 68-2-20)

• Switch block approved to : UL1054 / VDE / EN61058-1

• Torque : 0.8 Nm

ENVIRONMENTAL SPECIFICATIONS

• Operating temperature : -20 °C to +55 °C

• Sealing : front panel IP65, rear panel IP40

• According to EN 60947-5-5

ELECTRICAL SPECIFICATIONS

• Electrical function : push to shut off, twist to release

• Current/voltage rating : AC-15 1.5 A 250 VAC, 6 A 250 VAC

• Electrical life : 6,050 cycles

• Contact gap : >3 mm

• Insulation resistance : 50 M min

• Dielectric test voltage : 2900 V

MATERIALS

• Operator Case : Polyetherimide

• Actuator : Polycarbonate

• Switch block : PBT

• Panel Seal : Neoprene

APPROVALS

UL VDE
