AV22PNA62

Name: AV22PNA62
Brand: APEM
Price: 1.01427 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product CodeAV22PNA62
Stock Status1
Stock1

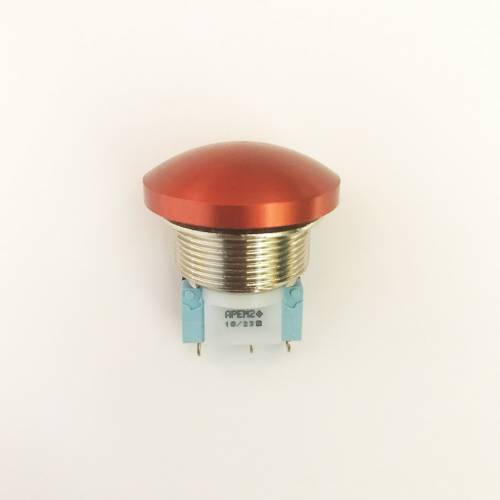

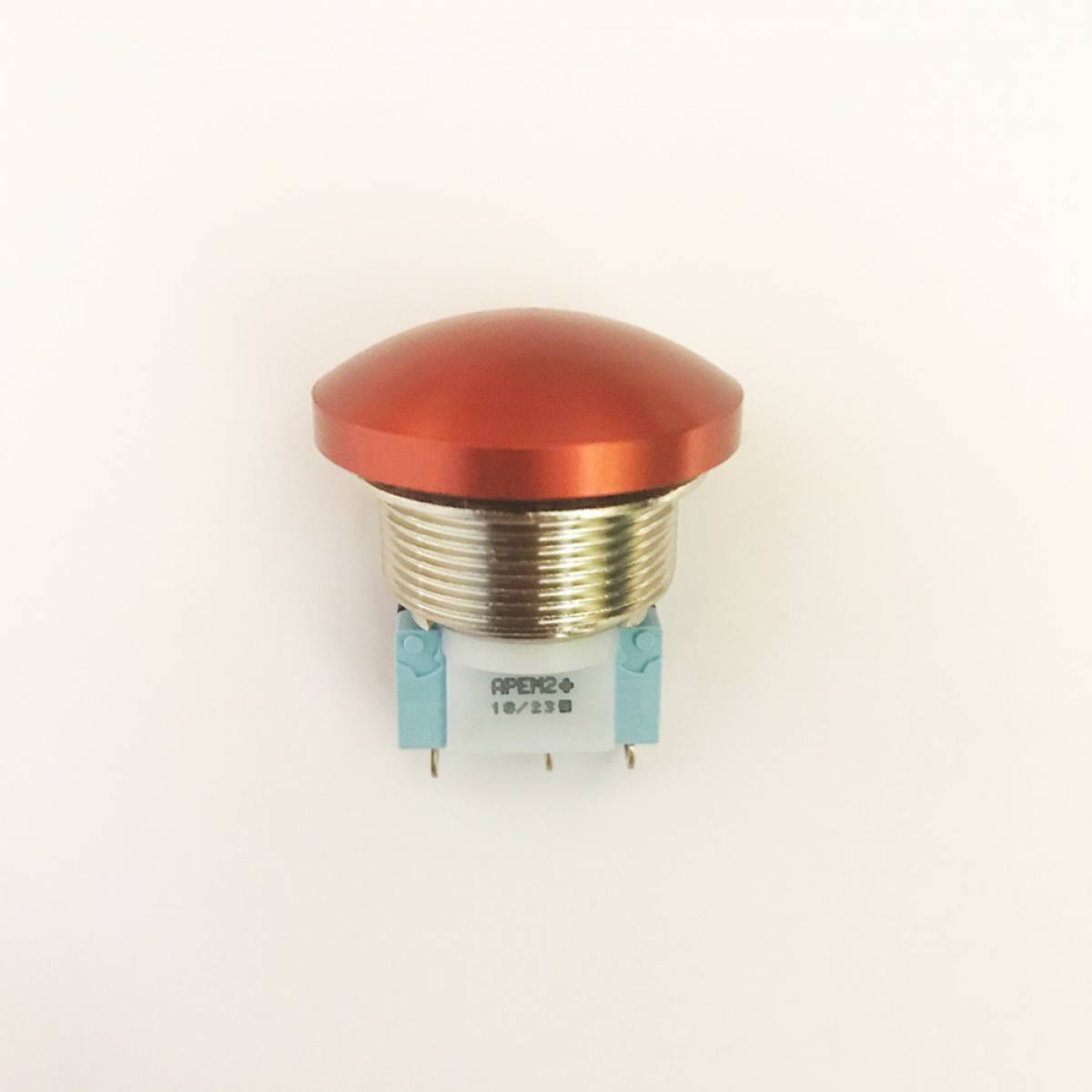

APEM AV Series 22mm NO/NC Mushroom Head Pushbutton

The AV Series pushbuttons offer attractive, robust and durable switches,
available with different bushing diameters, actuator shapes, bushing and actuator materials.
Anti-vandal or security models.

MAIN FEATURES
Security pushbutton switches
Momentary (NO)
Models with flat or curved actuator
Marking available
Optionally sealed to IP65

AV Series Datasheet

AV22PNA62 3D Drawing

SERIES

1,014.27 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
16	112.70 €	1,803.20 €
32	93.26 €	2,984.32 €
64	61.55 €	3,939.20 €
112	47.54 €	5,324.48 €
512	40.11 €	20,536.32 €
1008	34.88 €	35,159.04 €

Property Name	Property Value
SERIES	AV
CONTACTS	Silver
BUSHING/ACTUATOR MATERIALS	Nickel plated brass / Nickel plated brass
SEALING	No sealing

We'll Call You

Tags: apem AV22PNA62 AV series pushbutton switch emergency stop

Description

GENERAL SPECIFICATION
• Travel : 1.60 mm (.063) ± 0.3 mm (.011)
• Torque : 5 Nm min.- 14 Nm max. applied to nut
• Panel thickness : 1 (.039) to 6 mm (.236) max.
• Low level or mechanical life : 1,000,000 cycles
• Panel cut-out : Ø 16.2 mm (.637)
• Min. pitch for matrix mounting : 24 mm x 24 mm (.944 x .944) (AV6P & AV6B : 20 mm x 20 mm)
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -30 °C to +70 °C
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 200 mA 48 VDC - 100 mA 48 VDC
• Initial contact resistance : 50 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals and frame
• Electrical life :
50,000 cycles at 200 mA 48 VDC
100,000 cycles at 100 mA 48 VDC
MATERIALS
• Case : PBT
• Contacts : brass, silver plated (C)
