CG111A2

Print this page

Description

Brand APEM
Product CodeCG111A2
Stock StatusPre-order
Stock0

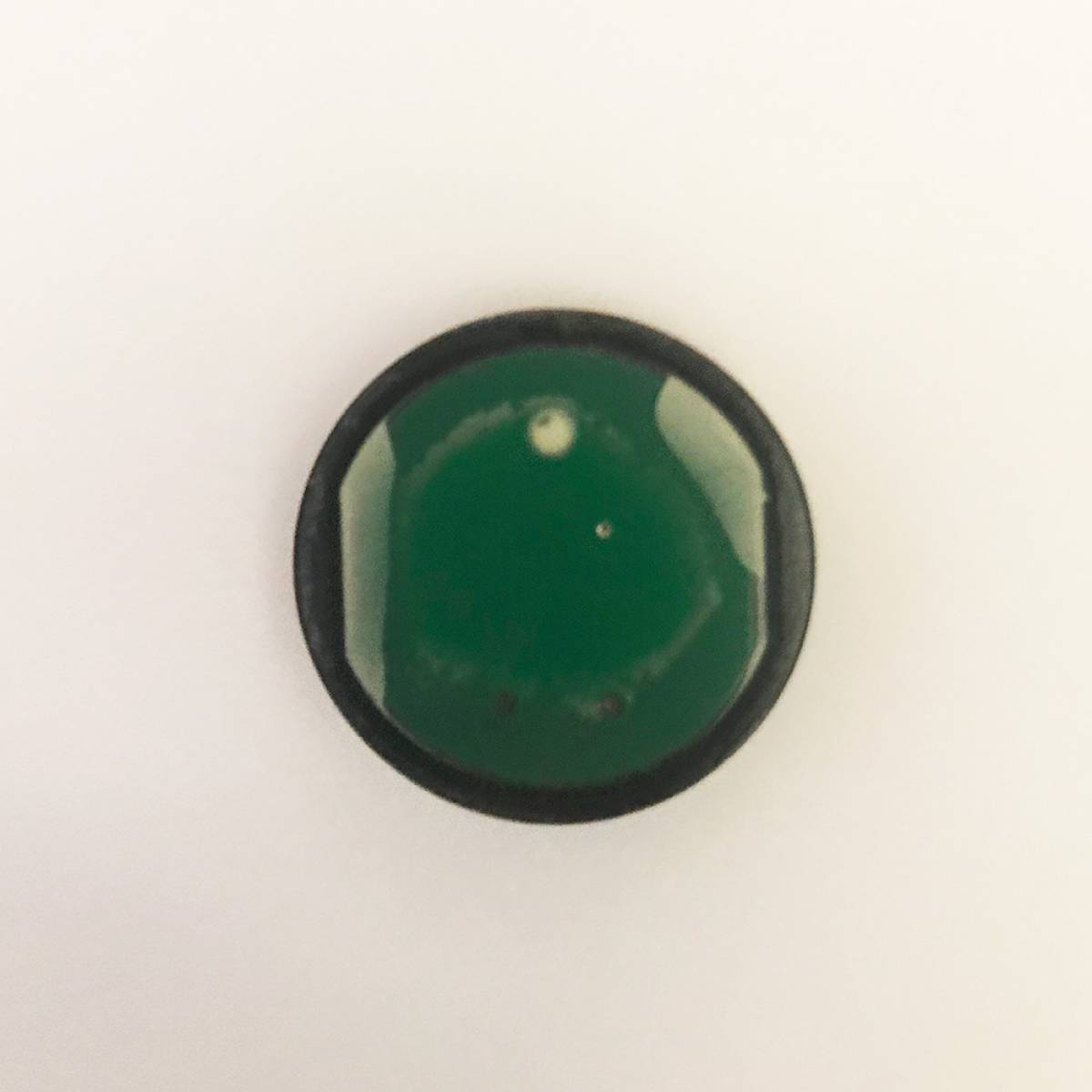

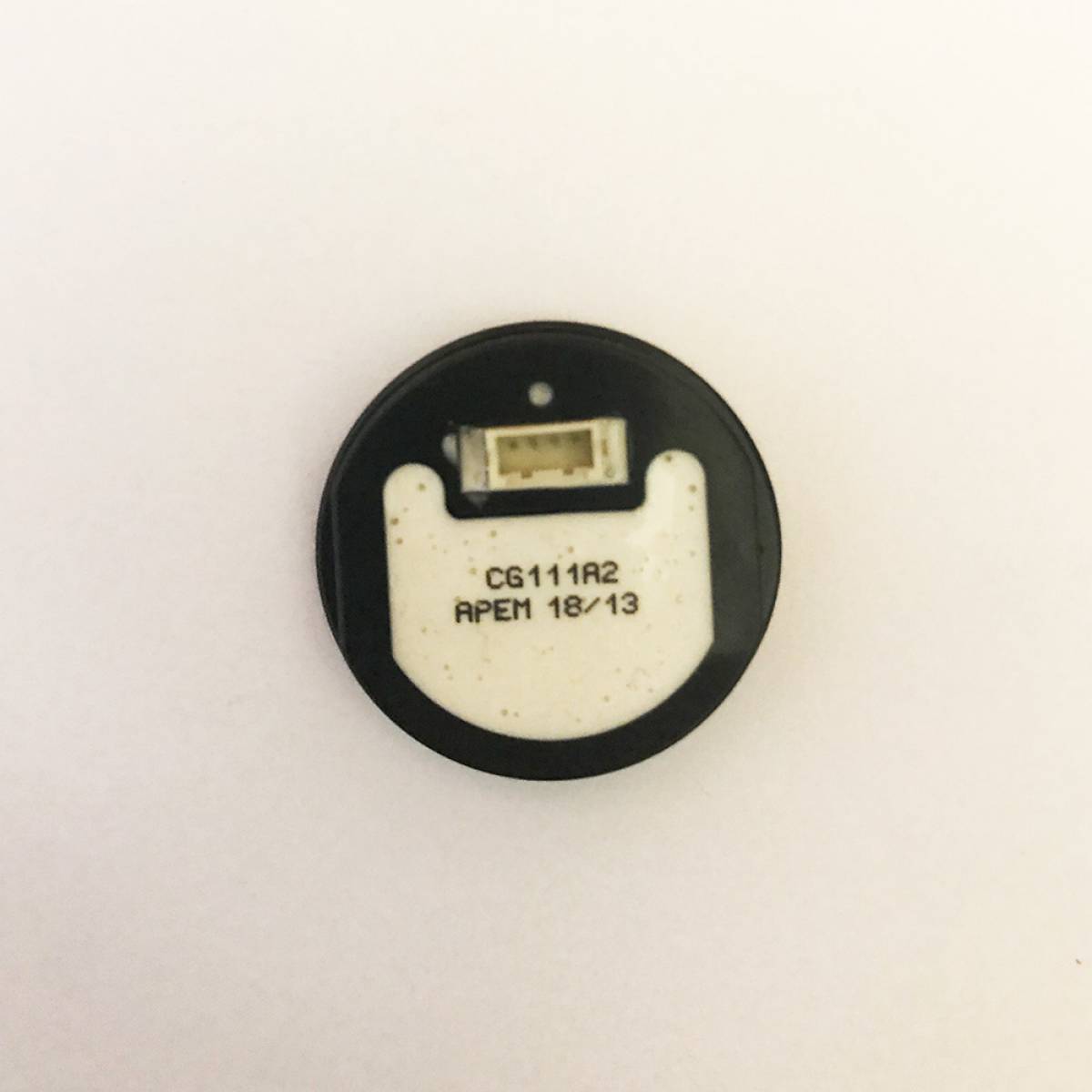

APEM CG Series 24V Touch Button

Activated by the touch of a finger, CG series switches are designed for mounting
under a non-conductive front face (glass or polycarbonate) and are activated though
the front face, transforming the inert facial into an active interface.
Available in momentary or latching, they are perfectly adapted for interactive applications.

CG111A2 3D Drawing

CG Series Datasheet

208.98 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
20	23.22 €	464.40 €
40	22.16 €	886.40 €
100	21.10 €	2,110.00 €
500	16.24 €	8,120.00 €
1000	15.18 €	15,180.00 €

Property Name	Property Value
SERIES	CG
ELECTRICAL FUNCTIONS	OFF - MOM
TERMINALS	Connector
SENSITIVITY	Medium (6 mm glass or 4 mm polycarbonate)
SURFACE ADHESIVE	For common glass or polycarbonate
TYPES OF ILLUMINATION/VOLTAGE	Non-illuminated - 5VDC
LED COLOR	Non-illum.
LED FUNCTIONS	Non-illuminated

We'll Call You

Tags: apem cg touch button cg111a2

Description

GENERAL SPECIFICATION

• Life expectancy : 50 million cycles

ENVIRONMENTAL SPECIFICATIONS

• Triggered by flowing water

• Temperature range : -40 °C to +70 °C

• Adhesive and connector resistant to vibrations

ELECTRICAL SPECIFICATIONS

• Supply voltage : 5 VDC, 12 VDC or 24 VDC

• Supply current : 15 mA max. (12 V)

• Max. current/voltage rating : 200 mA 24 VDC

• Switch resistance ON : 1 Ohm max.

• Power consumption : 10 mA max. mode OFF

• Output type : NPN

MATERIALS

• Case : ABS

• Sealing : epoxy
