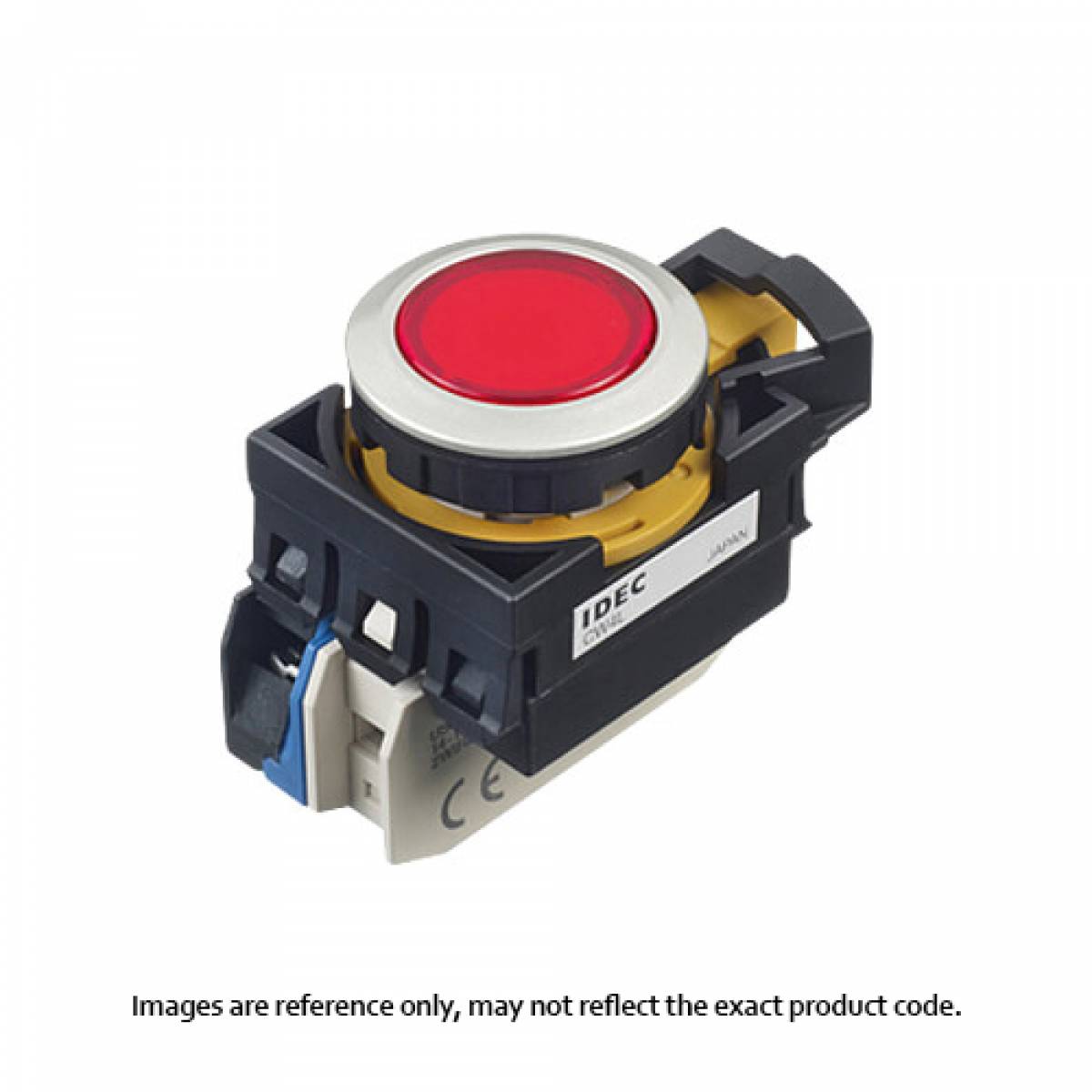

CW4LM1E10Q4R

GENERAL SPECIFICATION
• ø22.3 mm mounting hole compliant with IEC 60947-5-1
• 3.5 mm operator travel for pushbuttons ensures comfortable and reliable operation
• Black and metallic bezels available
• Illuminated pushbutton switches are available
• IP20 finger-safe screw terminals
• UL Type 4X rating
• Up to 6 contacts per switch are possible with use of dual contact blocks

ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature:
Non-ill.: –25 to +60 °C (no freezing)
LED ill.: –25 to +55 °C (no freezing)
• Operating Humidity: 45 to 85% RH (no condensation)
• Storage Temperature: –40 to +80 °C
• Degree of Protection (IEC60529)
Panel front: IP65, with rubber boot: IP66, IP67, UL type 4X
Terminals: IP20
• Vibration Resistance Operating extremes: 5 to 55Hz, amplitude 0.5 mm
• Shock Resistance:
Operating extremes: 100 m/s²
Damage limits: 1000 m/s²

ELECTRICAL SPECIFICATIONS
• Direct opening NC contact
• 10 A contact rating; up to 6 contact blocks for non-ill. and 4 contact blocks for illuminated models can be connected
• Contact blocks can be removed by using the locking lever
• Contact Resistance: 50 m? max. (initial value)
• Insulation Resistance: 100 M? min. (500V DC megger)
• Overvoltage Category: II (IEC 60664-1)
• Impulse Withstand Voltage: 2.5 kV (IEC60664-1/60947-5-1)
• Short-circuit Protection: 250V/10A fuse, (Type aM IEC60269-1, IEC602069-2)
• Electrical Shock Protection: Class II (IEC61140)

MATERIALS
• Bezel Material: Polyamide
• Contact Material: Silver

MECHANICAL SPECIFICATIONS
Depth behind panel :
Momentary illuminated pushbutton: 39,9 mm for 1 to 2 contacts; 59,9 mm 3 to 4 contacts;
Maintained illuminated pushbutton: 44,6 mm for 1 to 2 contacts; 64,6 mm 3 to 4 contacts;
Momentary non-illuminated pushbutton: 39,9 mm for 1 to 3 contacts; 59,9 mm 4 to 6 contacts;
Maintained non-illuminated pushbutton: 44,6 mm for 1 to 3 contacts; 64,6 mm 4 to 6 contacts;

APPROVALS
UL
