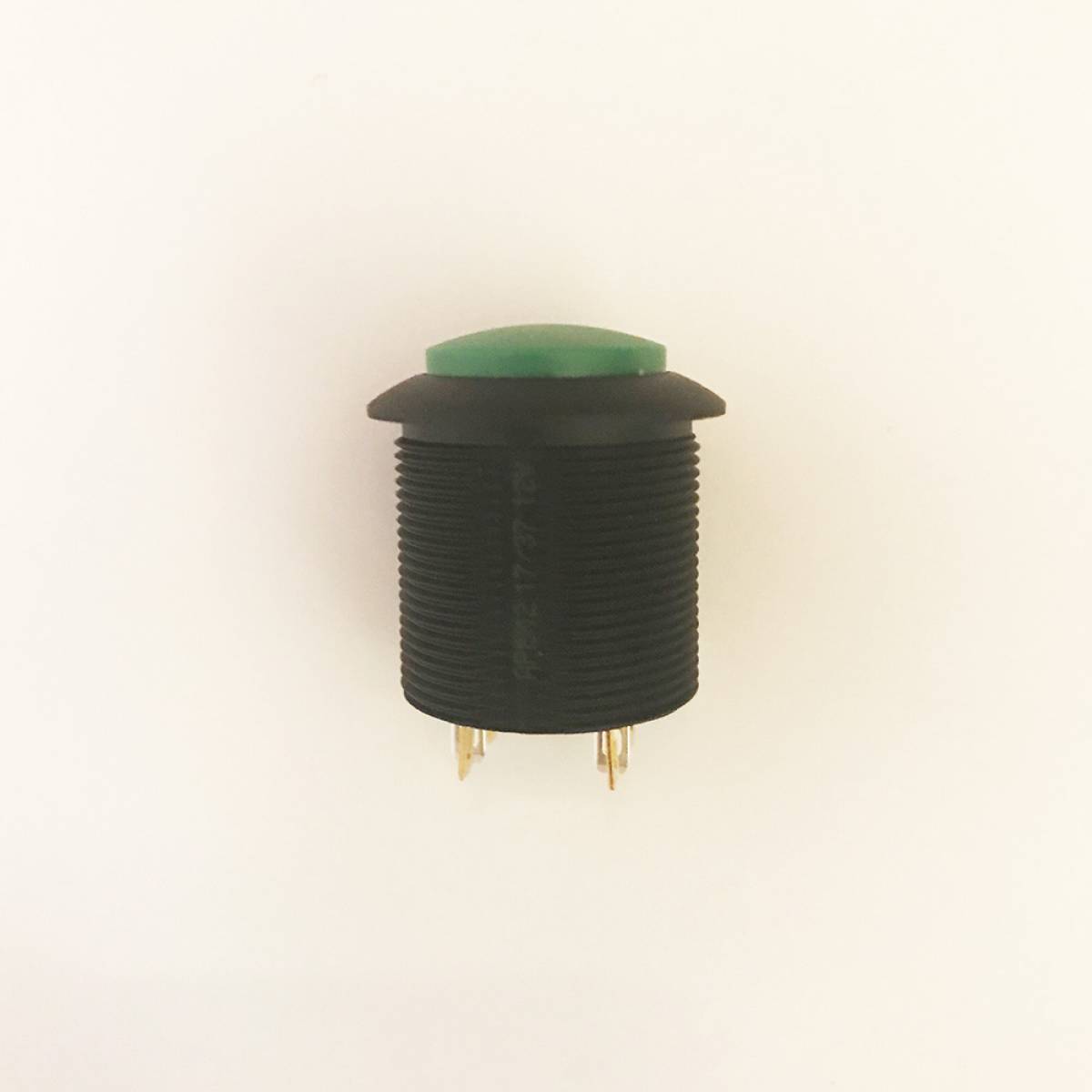

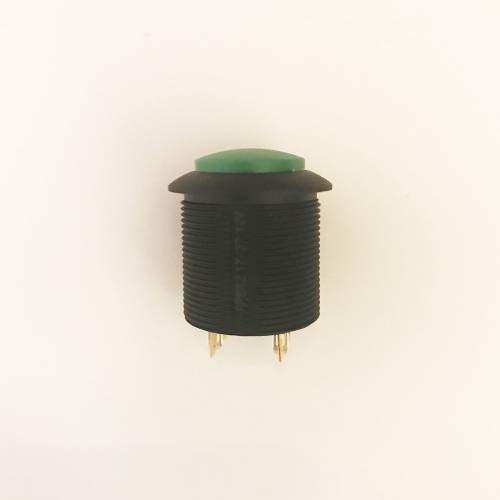

APEM FP Series 24mm 12V Button with LED

FP 24 mm series illuminated pushbutton switches feature a dia.
24 mm bushing and are available with fully-illuminated plungers or
with laser-etched illuminated symbols. These highly visible products are ideal
for applications including tractors, buses, trucks, cranes and automotive.

MAIN FEATURES
Easy to locate in poorly lit or dark environments
Highly visible
Large but lightweight
Easy design and color customization
Space saving: no need for separate indicator light
Available in momentary or latching
Mounting by threaded bushing

FP Series Datasheet

FPAR1D1432B1X 3D Drawing

257.36 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
20	28.60 €	572.00 €
100	23.36 €	2,336.00 €
260	20.93 €	5,441.80 €
500	20.43 €	10,215.00 €
760	20.01 €	15,207.60 €
1000	18.42 €	18,420.00 €

Property Name	Property Value
SERIES	FP
MODEL	Threaded bushing, dia. 24 mm
ACTUATOR	Round, curved
ELECTRICAL FUNCTIONS	OFF - ON
LED CONTROL AND NO OF POLES	Independent, 2 poles
TERMINALS	Solder lug
CONTACTS	Silver, gold plated
ACTUATOR COLOR	Green
BEZEL COLOR	Black
LED COLOR	Green
LED RESISTORS	No resistor supplied
MARKING	Pad printing
SYMBOLS	Choose one

We'll Call You

Tags: apem fp pushbutton FPAR1D1432B1X

Description

GENERAL SPECIFICATION

• Panel thickness : 1(.039) to 18 mm (.708) max.

• Total travel : 2.5 mm ± 0.5 mm

• Typical operating force : 8 N ± 2 N

• Low level or mechanical life :

- Momentary models : 1 million cycles

- Latching models : 200,000 cycles

• Torque : 3 Nm max. applied to nut

ENVIRONMENTAL SPECIFICATIONS

• Front panel sealing : IP69K according to DIN 40050-9

• Operating temperature : -40 °C to +75 °C

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

- silver contacts (code 2) : 4 A 12 VDC

- gold plated contacts (code 4) : 200 mA 12 VDC

• Initial contact resistance : 50 m? max.

• Insulation resistance : 1 G? min. at 500 VDC

• Dielectric strength : 1,000 Vrms 50 Hz min.

• Electrical life at full load :

- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)

- Latching models : 200,000 cycles

MATERIALS

• Case : PA46

• Actuator : PA12

• Bushing/ bezel : PA66

• Contacts : silver (code 2) or silver, gold plated (code 4)

• Cable : length 300 mm, section depending on switch model

• Terminal seal : epoxy or overmolding
