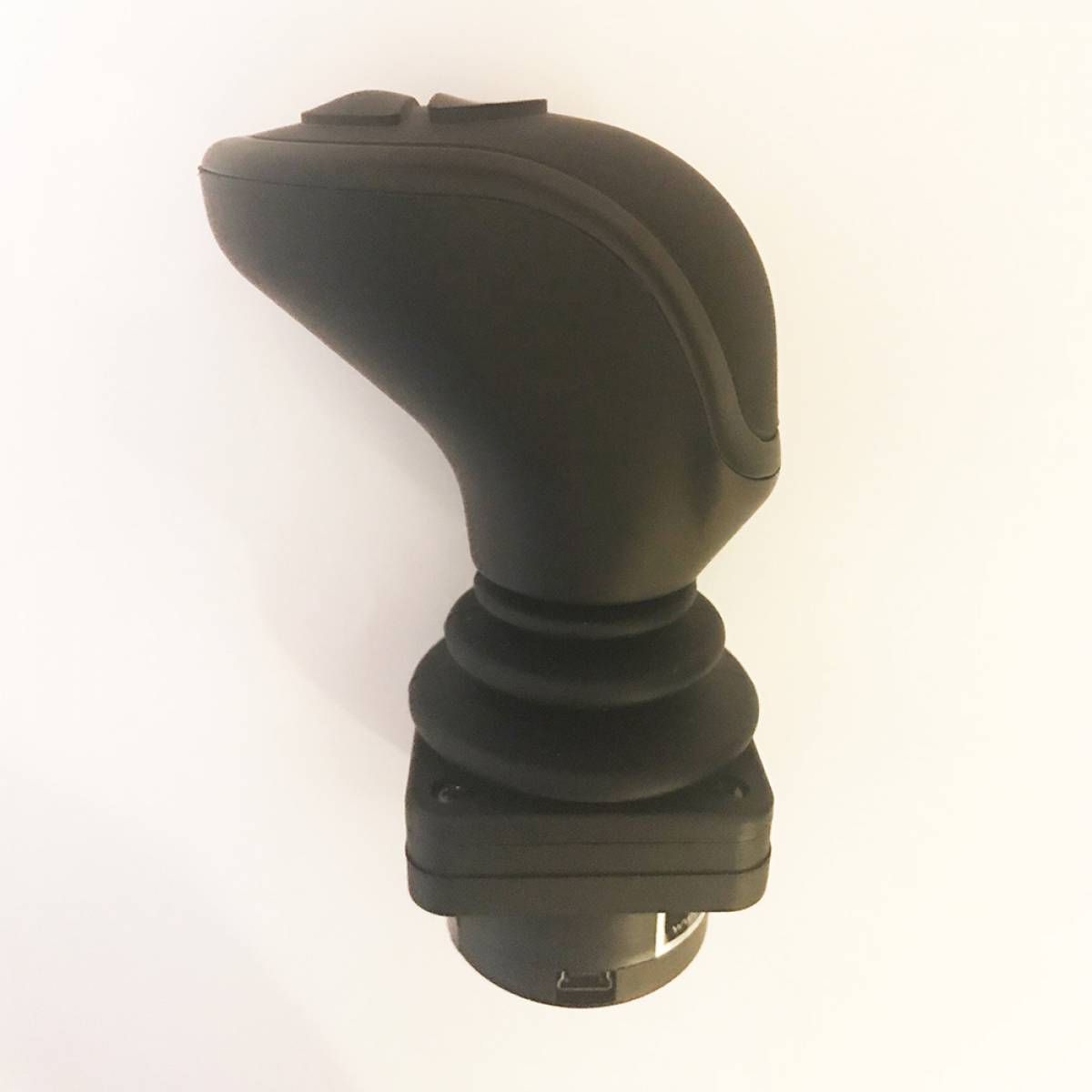

GENERAL SPECIFICATION
• Break Out Force: 1.3N (0.3lbf)
• Operating Force: 2.8N (0.63lbf)
• Maximum Applied Force: 200N (45.00lbf)
• Mechanical Angle of Movement: 36º (18º from center)
• Expected Life: 5 million
• Package Size: 5.75” x 4.50” x 3.25”
• Lever Action: Single spring, omnidirectional
ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
• Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
• Sealing (IP): Up to IP68*
• EMC Immunity Level (V/M): EN61000-4-3
• EMC Emissions Level: EN61000-6-3:2001
• ESD: EN61000-4-2
• Output linearity: ±200mV
• Dual output interlinearity (X/Y): ±400mV
• Dual output interlinearity (Z): ±600mV
ELECTRICAL SPECIFICATIONS
• Sensor: Hall effect
• Supply Voltage Operating: 5VDC±200VDC
• Reverse Polarity Max: -10VDC
• Transient Overvoltage Max: 20VDC
• Ratiometric Output Voltage: See options
• Output Impedance: 2?
• Return to center Voltage: ±200mV
MATERIALS
• Material: Glass filled nylon
MECHANICAL SPECIFICATIONS
• Break Out Torque: 0.09N·m (0.80lbf·in)
• Operating Torque: 0.121N·m(1.07lbf·in)
• Maximum Allowable Torque: 2.50N·m(22.13lbf·in)
• Hand Mechanical Angle: 60º (30º from center)
• Handle Action: Spring centering, rotational
• Expected Life: 5 million
