HS8A24SA

Print this page

Description

Brand APEM
Product CodeHS8A24SA
Stock StatusPre-order
Stock0

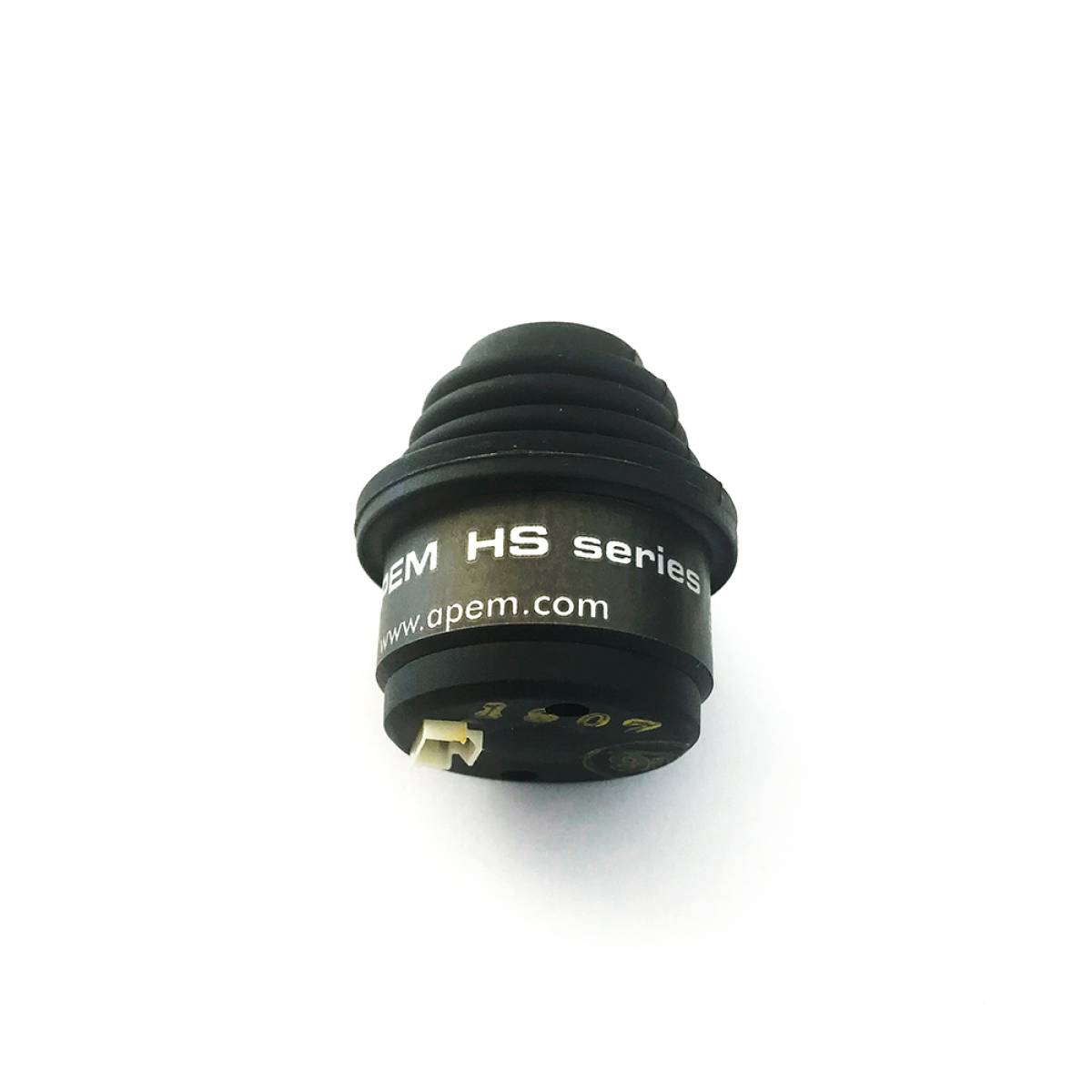

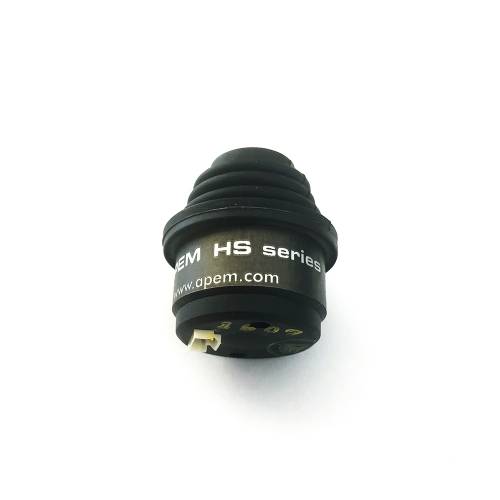

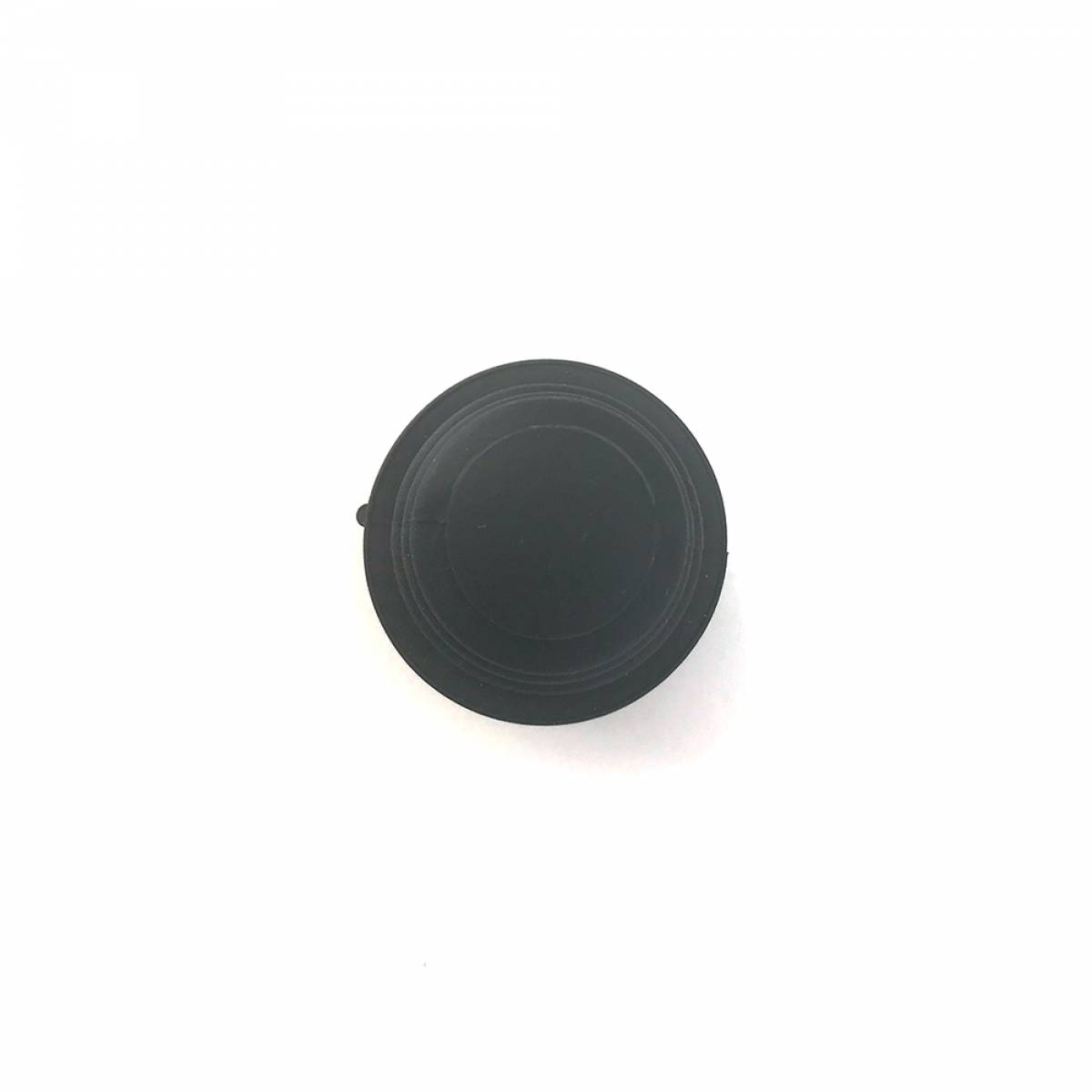

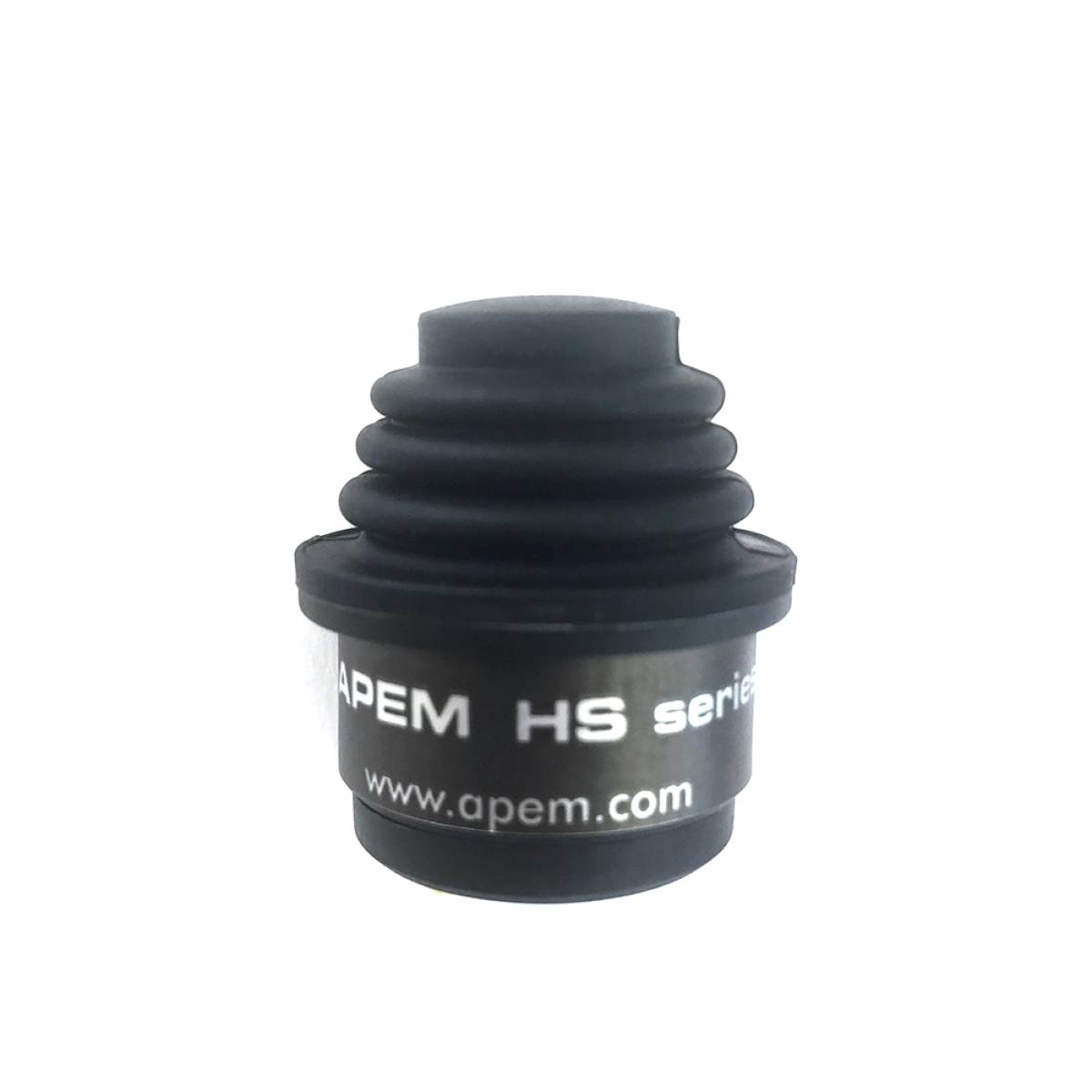

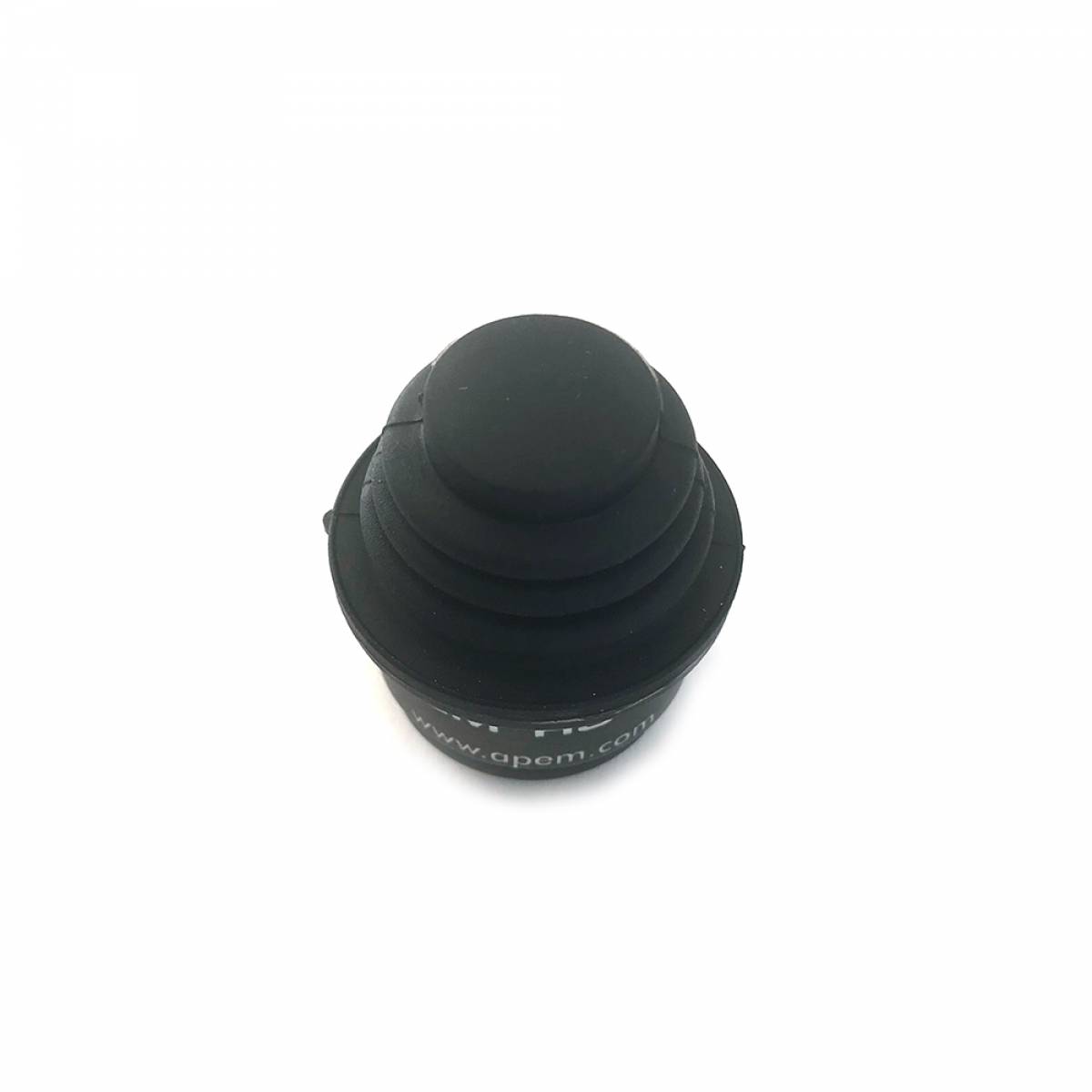

APEM HS Series 2 Axis Switch Joystick

The HS Series miniature joystick is a single pole, MOM-OFF-MOM micro switching joystick. Numerous button styles are available and the HS series may be specified for 2-way, 4-way and 5-way operation.MAIN FEATURES5-way with center pushbutton optionPositive tactile feedbackMom-off-momentary actionThreaded bush mount option.Sealed to IP68 and IP69.Connectorized housing

HS Series Datasheet

144.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	HS
HANDLE	None

We'll Call You

Tags: apem hs 2 axis joystick switch HS8A24SA

Description

GENERAL SPECIFICATION
• 5-way with center pushbutton option
• Positive tactile feedback
• Mom-off-momentary action
• Threaded bush mount option
• Sealed to IP68 and IP69
• Connectorized housing

ENVIRONMENTAL SPECIFICATIONS
• Sealing: IP68, IP69K (Drop-in mounting does not prevent panel ingress)
• Operating temperature: -25ºC to +80ºC (-13°F to +176°F)

ELECTRICAL SPECIFICATIONS
• Contact rating lifecycles :
- Gold plated (G) – 10mA @ 30VDC – 200,000 operations
- Silver plated (S) – 100mA @ 30VDC – 100,000 operations
• Mechanical life – 300,000 operations
• Insulation resistance – Min 100M? (250VDC by insulation resistance meter)
• Voltage withstand – 500VAC for 1 minute
• Contact resistance – Max 200m? (by YHP4328A)
• Electrical function – MOM-OFF-MOM

MATERIALS
• Glass filled nylon

MECHANICAL SPECIFICATIONS
• Operating Force: 5.56N±0.53N (1.25lbf±0.12lbf)1
• Maximum Vertical Load: 200N (45lbf)1
• Maximum Horizontal Load: 150N (33.7lbf)1
• Lever travel: 30° (±15º)
• Mass/weight: 17g (0.0375lb) (Option HS1DXXXA)
