HW1ZP1F2PQ4R

Print this page

Description

Brand IDEC
Product CodeHW1ZP1F2PQ4R
Stock Status15
Stock15

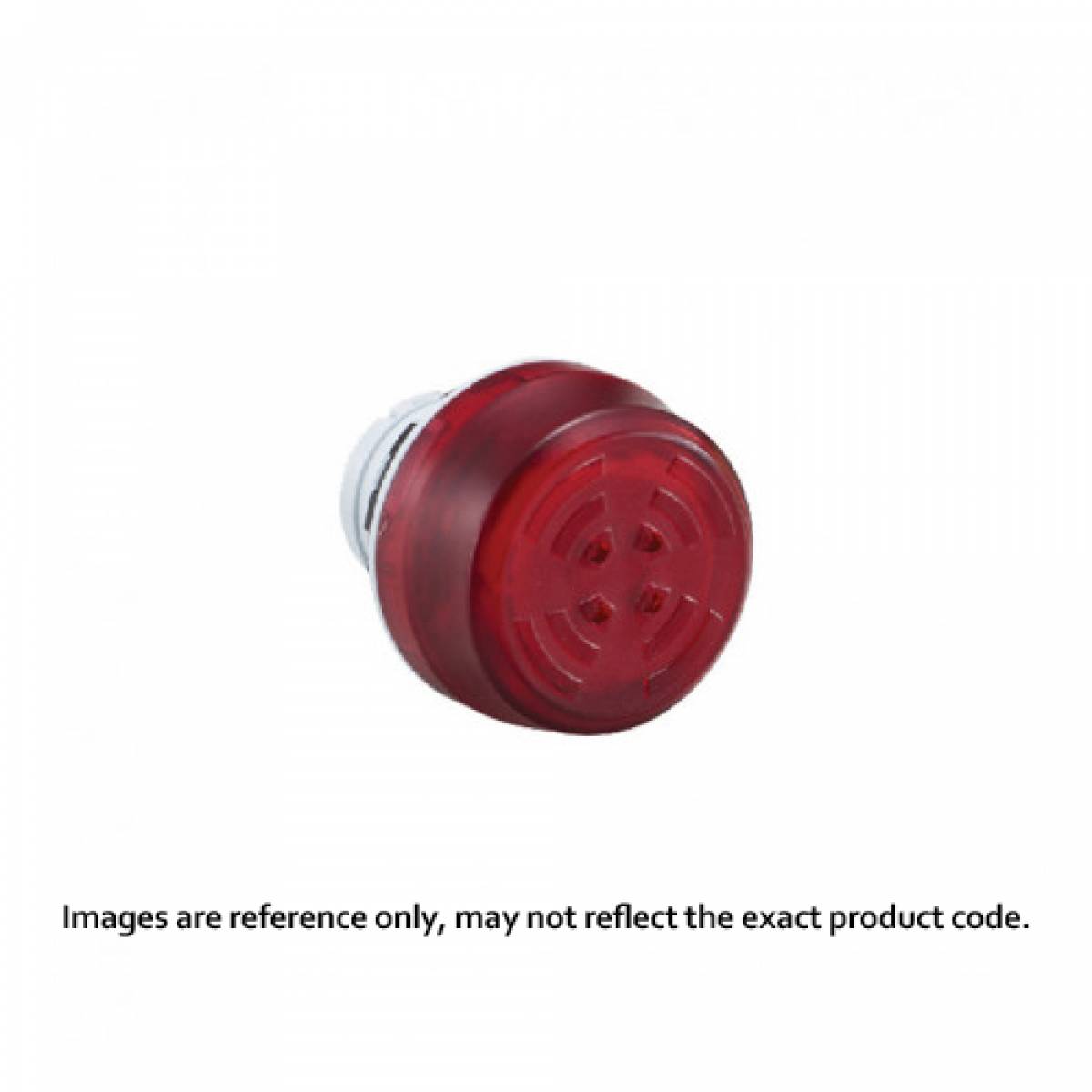

HW1ZP 70dB Buzzer

HW1Z is a range of signal and indication products, Ø22mm panel mount, packaged in an ergonomic, modern and complementary designs.

With over 50 years of experience, these IDEC products all include the latest technologies and design with the UL, CSA, TUV and CCC recognition.

MAIN FEATURES
Combination buzzer and pilot light
Easy wiring for tight installation places
IP65 front panel seal
Alert with sound (90dB) and light
Complies with new elevator safety standards

HW1Z Series Datasheet

45.12 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value

We'll Call You

Tags: idec apem HW1ZP1F2PQ4R buzzer HW1ZP

Description

GENERAL SPECIFICATION
• ø22.3 mm mounting hole compliant with IEC 60947-5-1
• UL Approved
• CE Marked

ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature -20 to +50°C
• Storage Temperature -30 to +80°C
• Panel Sealed to IP65
• Rear terminal boot seal to IP54

ELECTRICAL SPECIFICATIONS
• Rated Insulation Voltage 30V
• Rated Voltage 12 to 24V DC
• Operating Voltage 10.8 to 26.4V DC
• Rated Current 8mA (12V DC) 18mA (24V DC)
• Inrush Current 100mA Max
• Sound Pressure 90dB (24V) & 84dB (12)

MATERIALS
• Bezel Material : Polyamide
• Contact Material : Silver
