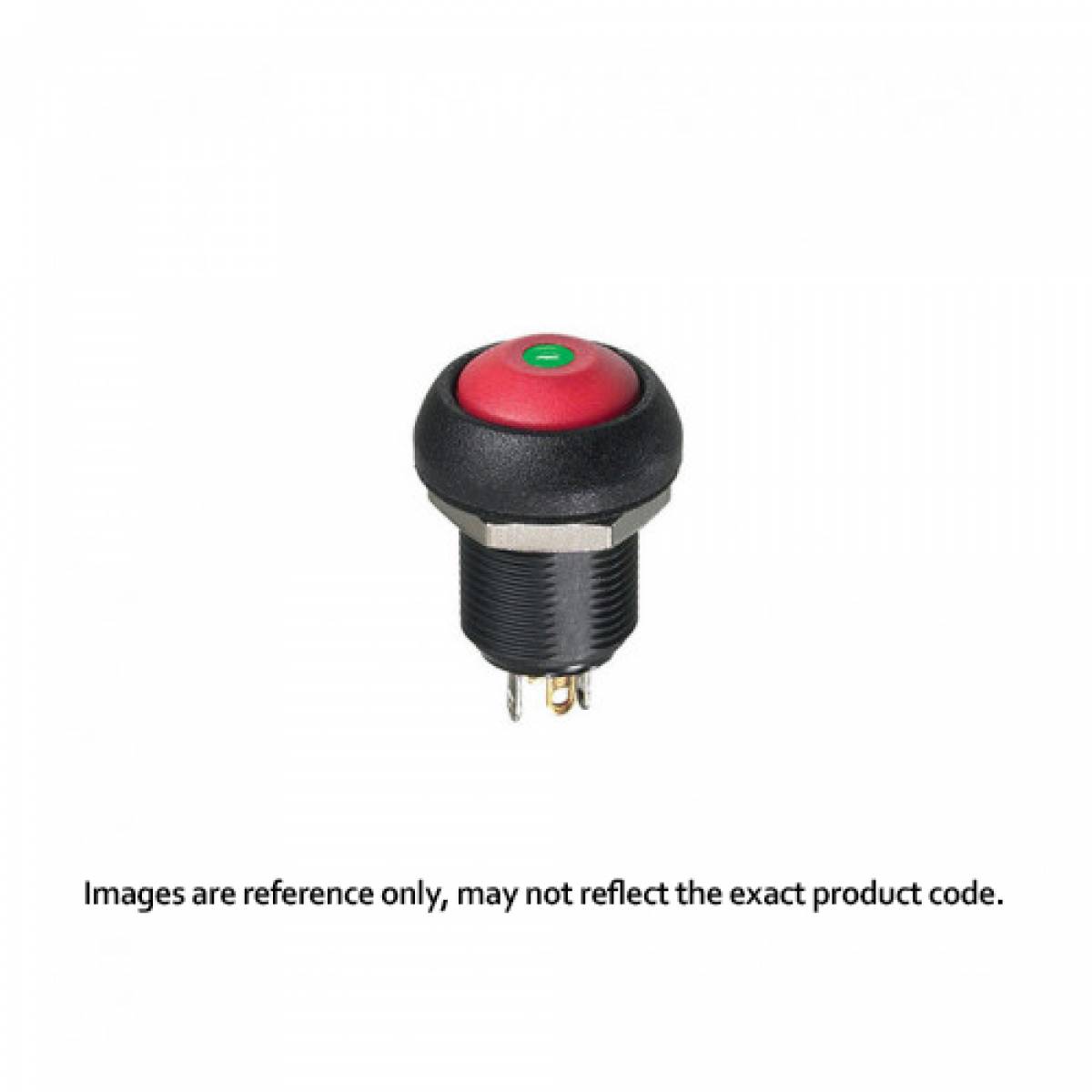

APEM IL Series NO Black Pushbutton Switch

The IL series is a range of momentary sealed pushbutton switches perfect for installation
on thick or variable thickness panels.

MAIN FEATURES

Dia.12 mm long threaded bushing
Illuminated or not
For panels up to 10 mm thick
Tactile feedback
Round actuator
Gold plated silver contacts
Sealed to IP67 (standard models only)

IL Series Datasheet

SERIES

145.58 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	16.18 €	404.50 €
100	13.09 €	1,309.00 €
250	11.44 €	2,860.00 €
500	10.30 €	5,150.00 €
750	9.23 €	6,922.50 €

Property Name	Property Value
SERIES	IL
ACTUATOR SHAPES	Round
ELECTRICAL FUNCTIONS	Normally open (NO)
TERMINALS	Flying leads
CONTACTS	Silver, gold plated
ACTUATOR COLOR	Black
LED COLOR	Non-illum.

We'll Call You

Description

GENERAL SPECIFICATION
• Panel thickness: 1.50 mm (.059) min. 10 mm (.393) max.
• Total travel: 1.7 mm (.067) +/- 0.3 mm
• Typical operating force: 4 N +/- 2 N
• Low level or mechanical life: 1,000,000 cycles
• Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248
• Soldering: 300 °C max. for 3 seconds

ENVIRONMENTAL SPECIFICATIONS
• Front panel sealing according to IEC 60529: IP67 (standard models) IP54 (options X1242 and 234)
• Shock resistance: 100 g according to IEC 512-4, test 6c
• Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d
• Salt spray: IEC 512-6, test 11f
• Operating temperature: -40 °C to +85 °C (-40°F to 185°F)

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load: 2 A 24 VDC, 200,000 cycles
• Initial contact resistance: 50 m? max.
• Insulation resistance: 1 G? min. at 500 VDC
• Dielectric strength: 1,000 Vrms

MATERIALS
• Case: thermoplastic UL94-V0
• Actuator: polyamide 6/6
• Bushing/bezel: polyamide 6/6
• Contacts: silver, gold plated
• Terminal seal: epoxy
