Description

Brand APEM
Product CodeIRP3F490B0PX117281
Stock StatusPre-order
Stock0

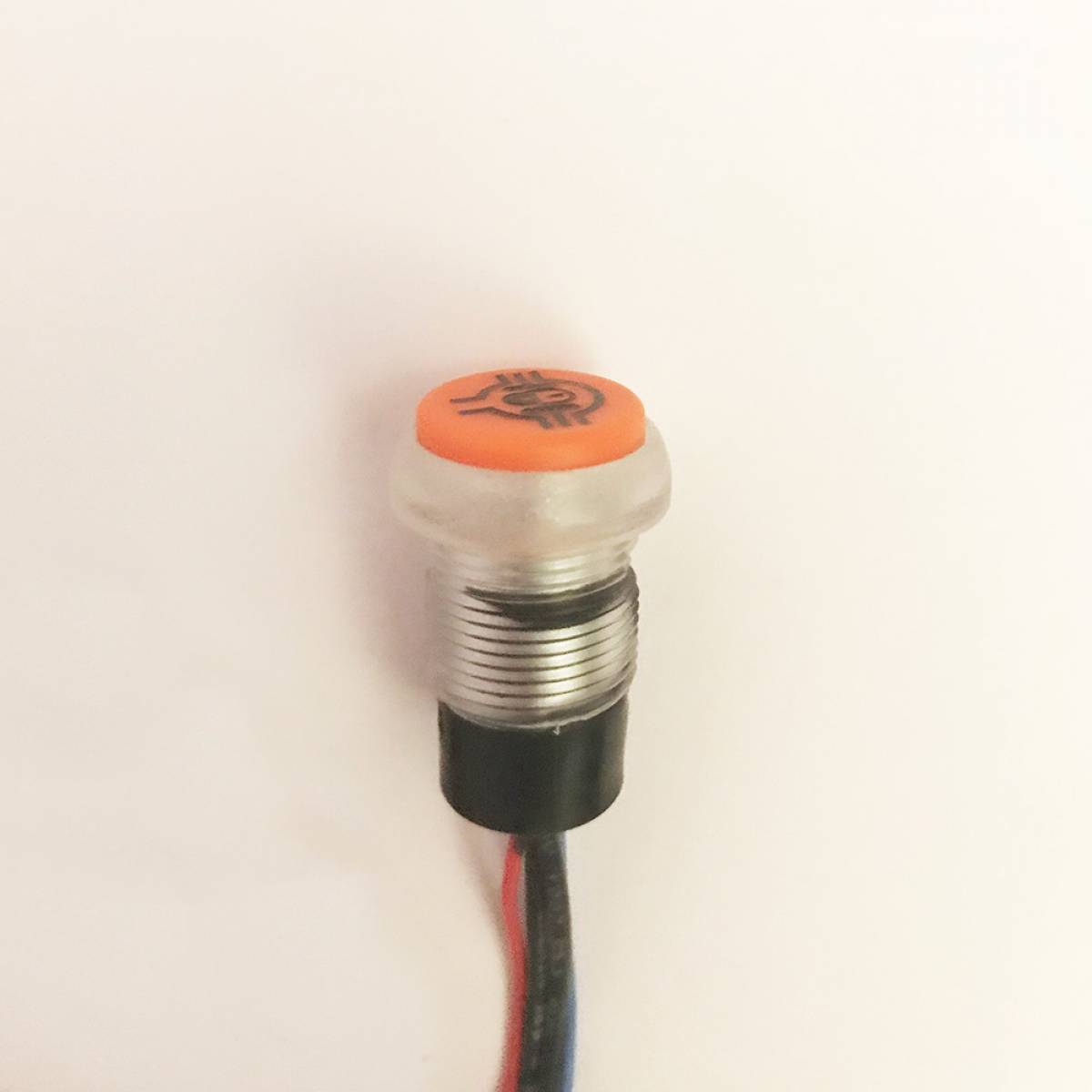

APEM IR Series 16mm Diffi Lock Button

The IR series of sealed pushbutton switches is divided into 2 families: standard models and microswitch technology models.
The standard models include numerous terminal options: solder, flying lead, straight PC, quick-connect, but also screw.

The screw terminal version, unique on the market for this type of product,
withstands up to 4 amps. Moreover, the behind-panel depth of the flying lead version is the shortest on the market.

MAIN FEATURES
Sealed to IP67
Illuminated or non-illuminated
Tactile feedback
Square or round actuator
Wide choice of actuator colors
Wide choice of illumination colors
This series can be easily customized.
Optional marking
Actuator marking is available on request for models with flat round actuatorvIntegrated resistor
On flying lead illuminated versions, the LED resistor can be integrated into the product by APEM upon request

IRP3F490B0PX117281 3D Drawing

IR Series Datasheet

29.26 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	IR
ACTUATOR SHAPES	Round, flat
ELECTRICAL FUNCTIONS	Normally open (NO)
TERMINALS	Flying leads
CONTACTS	Silver, gold plated (100 mA 24 VDC)
ACTUATOR COLOR	Orange
BUSHING AND BEZEL	Transparent (round bezel only)
ILLUMINATION	Non-illuminated
LED COLOR	Non-illuminated

We'll Call You

Description

GENERAL SPECIFICATION

• Panel thickness: 8 mm (.314) max.

• Total travel: 1.6 mm (.062) +/- 0.3 mm

• Typical operating force: 4 N +/- 2 N

• Low level or mechanical life: 1,000,000 cycles

• Torque: 0.8 Nm max. applied to nut

• Soldering: 320 °C max. for 3 sec.

ENVIRONMENTAL SPECIFICATIONS

• Front panel sealing: IP67 according to IEC 60529

• Shock resistance: 100 g according to IEC 512-4, test 6c

• Vibration resistance: 10-500Hz - 10 g according to IEC 512-4, test 6d

• Salt spray: IEC 512-6, test 11f

• Operating temperature: -40 °C to +85 °C

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- Gold plated contacts:

Code 4: 200 mA 48 VDC, 500,000 cycles

Code 7: 5 A 28 VDC, 70,000 cycles

- Silver contacts (code 2)

- screw terminals: 4 A 48 VDC, 500,000 cycles

• Initial contact resistance: 100 m? max.

• Insulation resistance: 1 G? min. at 500 VDC

• Dielectric strength: 1,500 Vrms

MATERIALS

• Case: thermoplastic UL94-V0

• Actuator: polyamide 6/6

• Bushing/bezel: polyamide 6/6

• Contacts:

4 and 7: silver, gold plated

2: silver (screw terminals)

• Multi-wire lead AWG20, section 0.6 mm2

• LED wire: AWG26, section 0.12 mm2

• Lens: polycarbonate

• Terminal seal: epoxy
