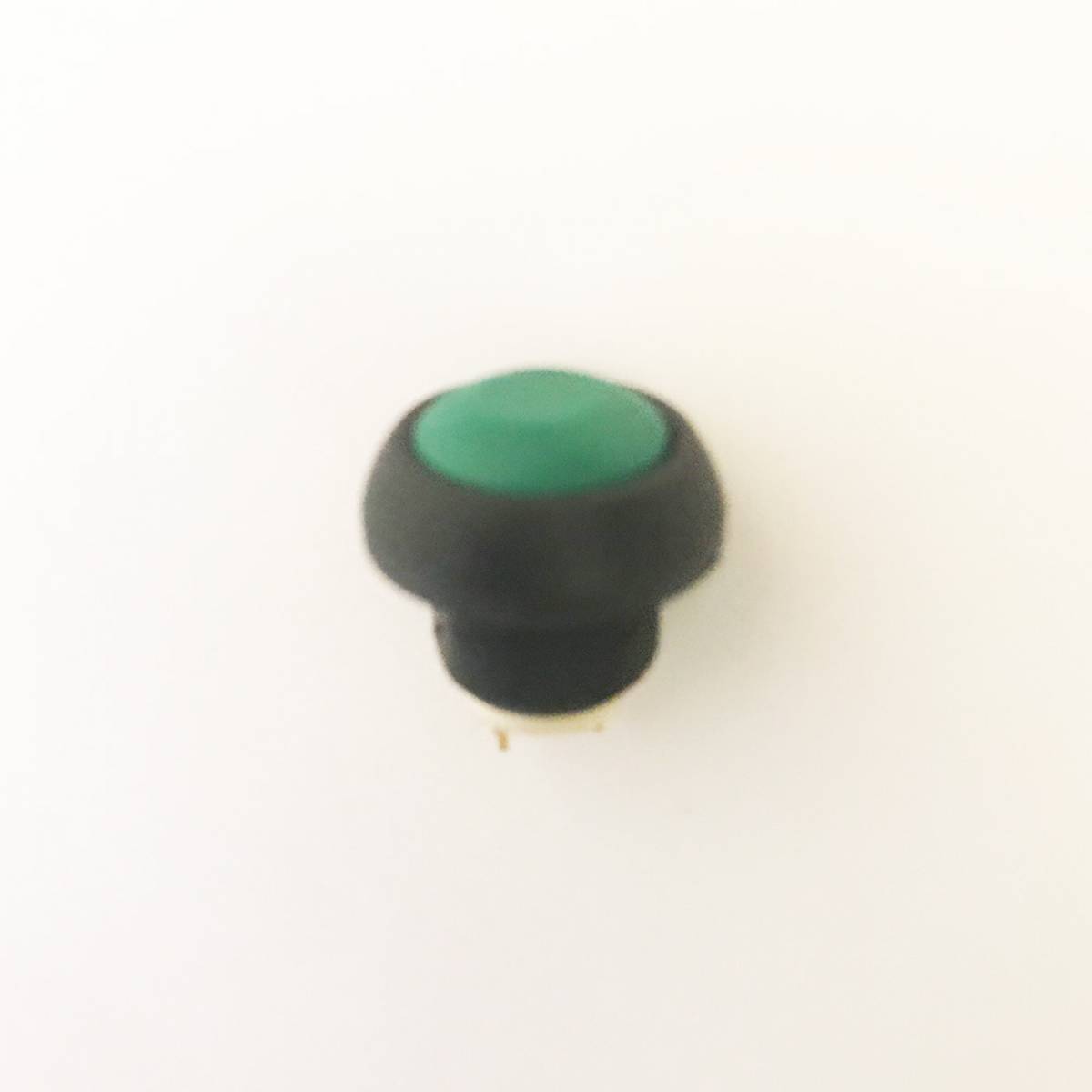

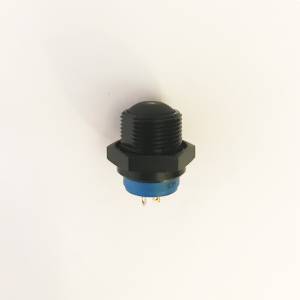

APEM IS Series 12mm Round NO Pushbutton

Sealed pushbutton switches with threaded bushing.
Compact and light in weight with 50% reduction in weight compare to metallic models.

MAIN FEATURES
Behind panel depth of 13mm (.512)
Tactile feedback
Sealed to IP67
Illuminated or non-illuminated (for round plunger only)
Additional sealing by silicone boot for protection against frost and abrasion by sand.

IS Series Datasheet

ISR3SAD300 3D Drawing

SERIES

78.07 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	8.67 €	216.75 €
100	7.02 €	702.00 €
250	6.14 €	1,535.00 €
500	5.52 €	2,760.00 €
750	4.95 €	3,712.50 €

Property Name	Property Value
SERIES	IS
ACTUATOR SHAPES	Round, curved
ELECTRICAL FUNCTIONS	Normally open (NO)
TERMINALS	Solder lug
CONTACTS	Silver, gold plated
ACTUATOR COLOR	Green
BUSHING AND BEZEL	Black (std)

We'll Call You

Description

GENERAL SPECIFICATION

• Panel thickness: 1,5 mm (.059) min. - 4 mm (.157) max.

• Total travel: 1.7 mm (.066) +/- 0.3 mm

• Typical operating force: 4 N +/- 3 N

• Low level or mechanical life: 1,000,000 cycles

• Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248

• Soldering: 300 °C max. for 3 seconds

ENVIRONMENTAL SPECIFICATIONS

• Front panel sealing according to IEC 60529: IP67

• Shock resistance: 100 g according to IEC 512-4, test 6c

• Vibration resistance: 10-500 Hz - 10 g according to IEC 512-4, test 6d

• Salt spray: IEC 512-6, test 11f

• Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load: 400 mA 32 VAC - 100 mA 48 VDC

• Initial contact resistance: 50 m? max.

• Insulation resistance: 1 G? min. at 500 VDC

• Dielectric strength: 1,000 Vrms

• Electrical life at full load: 500,000 cycles

MATERIALS

• Case: thermoplastic UL94-V0

• Actuator: polyamide 6/6

• Bushing/bezel: polyamide 6/6

• Contacts: silver, gold plated

• Terminal seal: epoxy

APPROVALS

UL
