Q16P1CXXB24E

Name: Q16P1CXXB24E
Brand: APEM
Price: 1920 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product CodeQ16P1CXXB24E
Stock Status14
Stock14

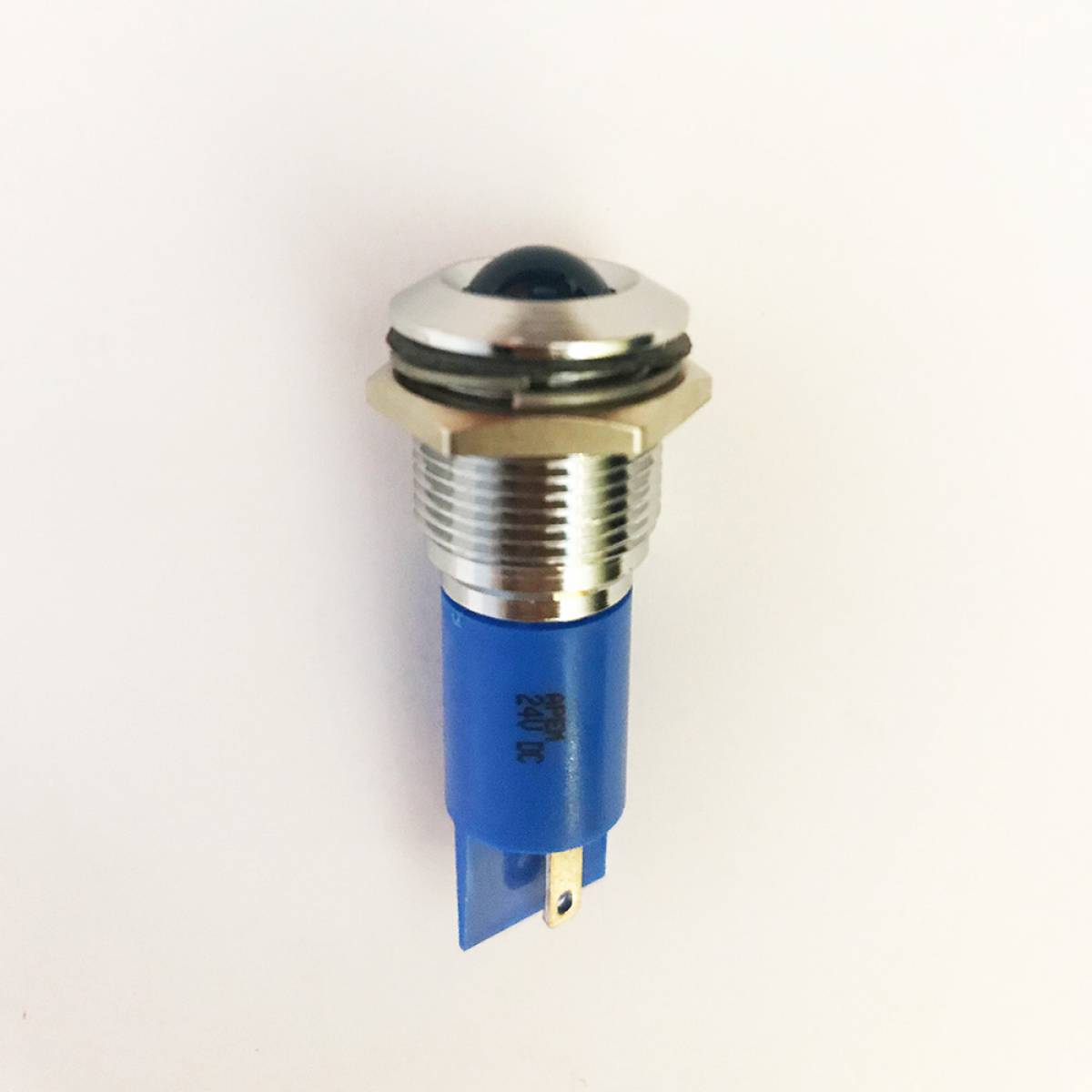

APEM Q Series 16mm Blue 24V LED

Panel mount LED indicators with 10 mm colored diffused epoxy lens or 10 mm water clear super bright LED’s.
MAIN FEATURES
Metal bezel finish: bright chrome, black chrome or satin grey.
Prominent, flush and recessed bezel styles.
Voltage: 2 VDC - 220 VAC.
Terminals: 2.8 x 0.8 solder lug/fastons, pins or 200 mm long wires.
IP67 sealing option (EN 60529).
Supplied with fixing nut and spring washer with screen engraving and Secret Until Lit options available.
TYPICAL APPLICATIONS
Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Automotive
Aftermarket
HVAC, Energy Management
Lifts
Machine Tools

Q Series Datasheet

Q16P1CXXB24E 3D Drawing

SERIES

19.20 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	Q
MOUNTING HOLE	Ø16 mm
BEZEL STYLE	Prominent(Metal)
TERMINALS	Solder Lug/ Fastons (2.8 x 0.8)
BEZEL FINISH	Bright Chrome(Metal)
TYPE OF ILLUMINATION	Fixed Light
LED COLOR	Blue
VOLTAGE	24 VDC
SEALING	Sealed
OPTIONS	None

We'll Call You

Tags: apem q q16 blue led 24v led Q16P1CXXB24E

Description

GENERAL SPECIFICATION
• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° *
• Life Expectancy: 100,000 hours
• Torque: 75cNm
ENVIRONMENTAL SPECIFICATIONS
• Panel sealed up to IP67 according to EN 60529
• Temperature Range: –40 to +85 °C *
* Dependant on Model
ELECTRICAL SPECIFICATIONS
• 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
• 6 VDC 5.4 to 6.6 VDC 20 mA
• 12 VDC 10.8 to 13.2 VDC 20 mA
• 24 VDC 21.6 to 26.4 VDC 20 mA
• 28 VDC 25.2 to 30.8 VDC 20 mA
• 110 VAC 99 to 121 VAC 6 mA
• 220 VAC 207 to 253 VAC 3 mA
MATERIALS
• Plated brass bezel finished in bright chrome, black chrome or satin grey and moulded polycarbonate rear body
APPROVALS
UL
