Q6F1BXXG24E

Name: Q6F1BXXG24E
Brand: APEM
Price: 5398 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product CodeQ6F1BXXG24E
Stock Status815
Stock815

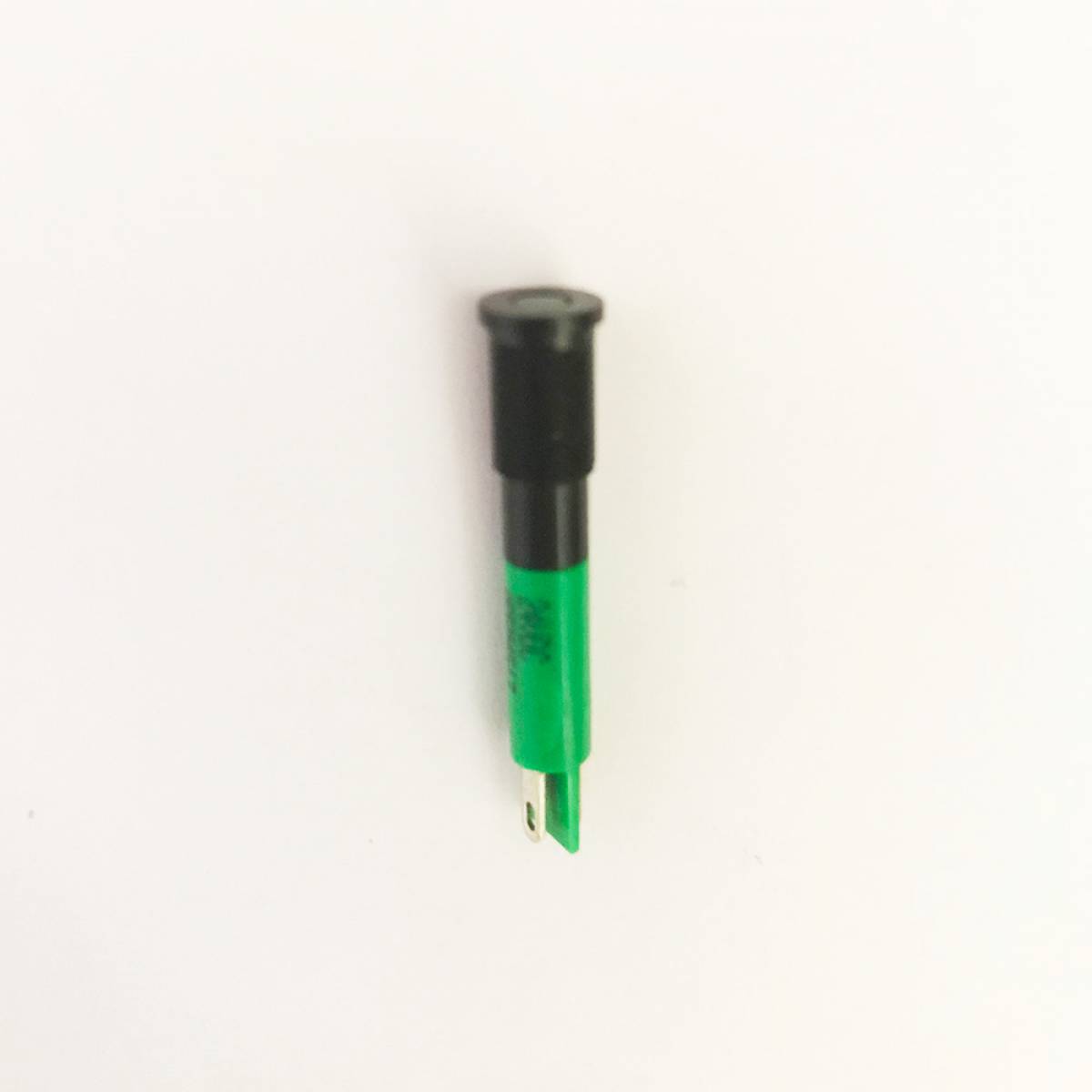

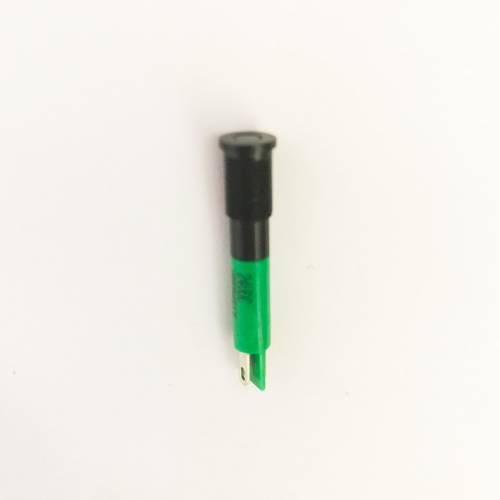

APEM Q Series 6mm Green 24V LED APEM Q Series 6mm Green 24V LED

Panel mount LED indicators with 3 mm colored diffused epoxy lens or 3 mm water clear super bright LEDs.

MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish.
Prominent, recessed and flush bezel styles.
Voltage: 2 VDC - 28 VDC.
Terminals: 2.0 x 0.5 solder lug/fastons, pins or 200 mm long wires.
IP67 sealing option (EN60529).
Supplied with fixing nut and spring washer
TYPICAL APPLICATIONS
Process Controls
Professional Electrical Appliances
Communications, Radar
Civil engineering vehicles, trucks, diggers, crane
Trains
HVAC, Energy Management
Lifts
Machine Tools

Q6F1BXXG24E 3D Drawing

Q Series Datasheet

SERIES

53.98 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
50	6.00 €	300.00 €
100	4.92 €	492.00 €
500	4.43 €	2,215.00 €
1000	4.01 €	4,010.00 €

Property Name	Property Value
SERIES	Q
MOUNTING HOLE	Ø6 mm
BEZEL STYLE	Flush(Metal)
TERMINALS	Solder Lug/ Fastons (2.8 x 0.8)
BEZEL FINISH	Black Chrome(Metal)
TYPE OF ILLUMINATION	Fixed Light
LED COLOR	Green
VOLTAGE	24 VDC
SEALING	Sealed
OPTIONS	None

We'll Call You

Tags: apem q q6 green led 24v led Q6F1BXXG24E

Description

GENERAL SPECIFICATION
• Max Reverse Voltage: 5V
• Viewing Angle: 30–100° *
• Life Expectancy: 100,000 hours
• Temperature Range: –40°C to +85°C *
• Torque: 4cNm
* Dependant on Model
ENVIRONMENTAL SPECIFICATIONS
• Panel sealed up to IP67 according to EN60529
ELECTRICAL SPECIFICATIONS
• (No Resistor) 1.8 to 3.8VDC 20mA max
• 6VDC 5.4 to 6.6VDC 20mA
• 12VDC 10.8 to 13.2VDC 20mA
• 24VDC 21.6 to 26.4VDC 20mA
• 28VDC 25.2 to 30.8VDC 20mA
MATERIALS
• 3mm colored diffused epoxy lens or 3mm water clear super bright LEDs
• Plated brass bezel finished in bright chrome, black chrome or satin grey and moulded polycarbonate rear body.
APPROVALS
UL
