QRM65BXXHR02E

Print this page

Description

Brand APEM
Product CodeQRM65BXXHR02E
Stock StatusPre-order
Stock0

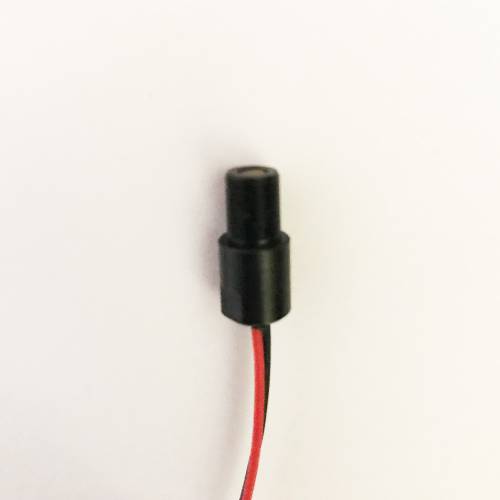

APEM QRM Series 6mm Hyper Red 2V LED

Panel mount LED indicators with 3 mm colored diffused epoxy lens or 3 mm water clear super bright LEDs.
MAIN FEATURES
Bright chrome, black chrome or satin grey bezel finish.
Prominent, recessed and flush bezel styles.
Voltage: 2 VDC - 28 VDC.
Terminals: 2.0 x 0.5 solder lug/fastons, pins or 200 mm long wires.
IP67 sealing option (EN60529).
Supplied with fixing nut and spring washer.
TYPICAL APPLICATIONS

Control panels
Remote controls
Automotive
Battery chargers
Marine

QRM65BXXHR02E 3D Drawing

QRM Series Datasheet

21.60 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	QRM
MOUNTING HOLE	Ø6 mm
TERMINALS	Wires
BEZEL FINISH	Black Chrome
TYPE OF ILLUMINATION	Fixed Light
LED COLOR	Hyper Bright Red
VOLTAGE	No resistor
SEALING	IP67 (Standard)

We'll Call You

Description

GENERAL SPECIFICATION

• Max Reverse Voltage: 5 V

• Viewing Angle: 60°

• Life Expectancy: 100,000 hours

• Max panel thickness: 3.5 mm

• Torque: 60 cNm

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature Range: –40 to +85 °C

• Storage Temperature Range: –55 to +100 °C

• IP67 sealed (EN60529)

ELECTRICAL SPECIFICATIONS

• 02 (No Resistor) 1.8 to 3.8 VDC 20 mA max

• 6 VDC 5.4 to 6.6 VDC 20 mA

• 12 VDC 10.8 to 13.2 VDC 20 mA

• 24 VDC 21.6 to 26.4 VDC 20 mA

• 28 VDC 25.2 to 30.8 VDC 20 mA

MATERIALS

• Body: Black chrome plated brass

• Nut: Black chrome plated brass

• Panel seal: Nitrile O-ring

• Lock washer: Spring steel

• Terminal seal: Epoxy

• Wires: 24 AWG to UL1061

APPROVALS

UL
