QRM84BXXR02E

Print this page

Description

Brand APEM
Product CodeQRM84BXXR02E
Stock Status10
Stock10

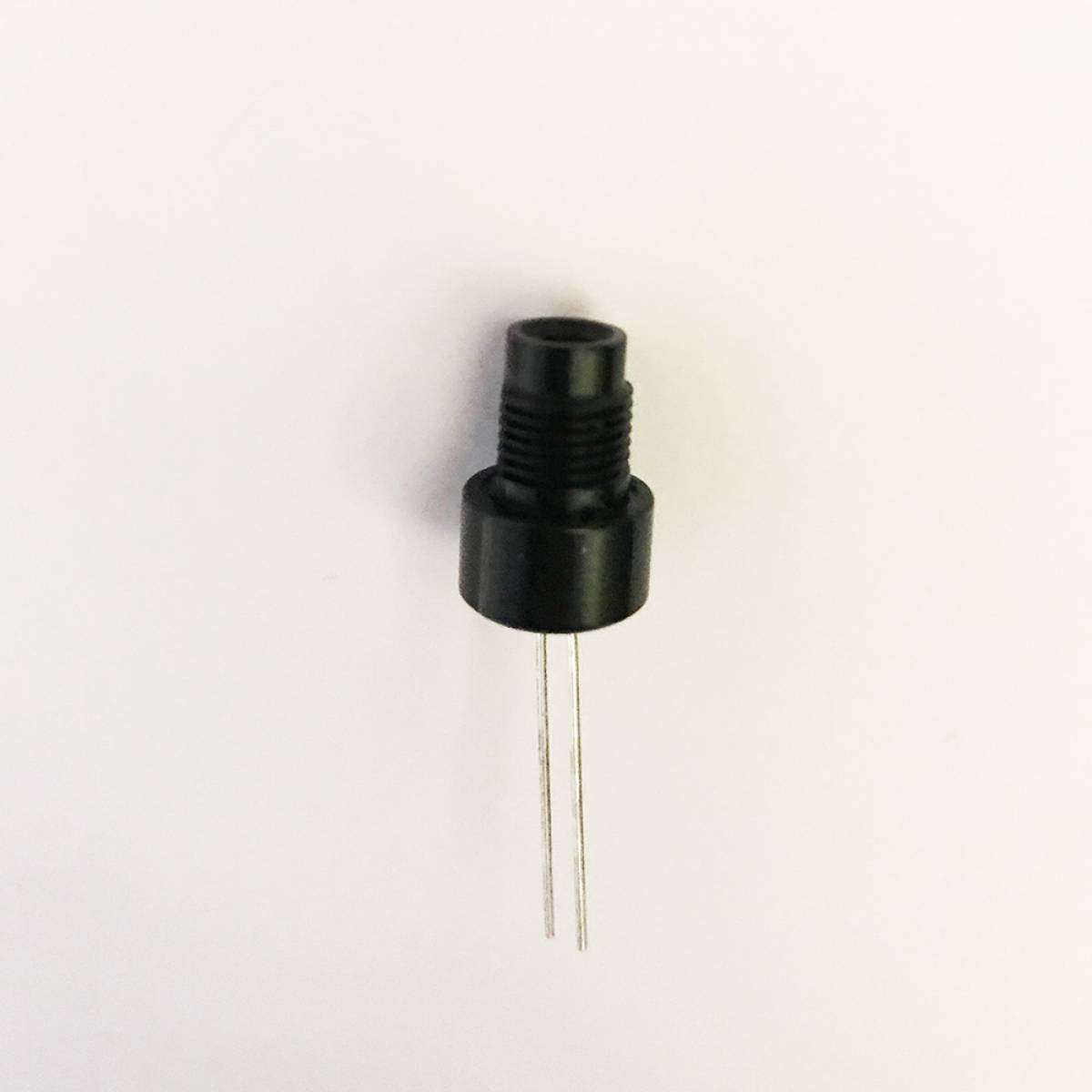

APEM QRM Series 8mm Red 2V LED

The QRM8 Series is a range of Ø8 mm diameter indicators which are rear mounted,
epoxy sealed and designed to be offered to the back of the panel for assembly.
They are available in bi-colored and tri-colored LEDs.
MAIN FEATURES
IP67 sealed to EN60529
Rear end epoxy sealed
Black chrome or anodized finish

QRM Series Datasheet

QRM84BXXR02E 3D Drawing

SERIES

21.60 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	QRM
MOUNTING HOLE	Ø8 mm
TERMINALS	Ridgid Pins (only with Ø8 mm)
BEZEL FINISH	Black Chrome
TYPE OF ILLUMINATION	Fixed Light
LED COLOR	Red
VOLTAGE	No resistor
SEALING	IP67 (Standard)

We'll Call You

Description

GENERAL SPECIFICATION

• Max Reverse Voltage: 5V

• Viewing Angle: 60°

• Life Expectancy: 100,000 hours

• Max panel thickness: 3.5mm

• Torque: 60cNm

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature Range: –40°C to +85°C

• Storage Temperature Range: –55°C to +100°C

• IP67 sealed (EN60529)

ELECTRICAL SPECIFICATIONS

• 02 (No Resistor) 1.8 to 3.8VDC 20mA max

• 6VDC 5.4 to 6.6VDC 20mA

• 12VDC 10.8 to 13.2VDC 20mA

• 24VDC 21.6 to 26.4VDC 20mA

• 28VDC 25.2 to 30.8VDC 20mA

MATERIALS

• Body: Black chrome plated brass or anodized finish

• Nut: Black chrome plated brass or anodized finish

• Panel seal: Nitrile O-ring

• Lock washer: Spring steel

• Terminal seal: Epoxy

• Wires: 24AWG to UL1061

APPROVALS

UL
