TL39WS84065

Print this page

Description

Brand APEM
Product CodeTL39WS84065
Stock StatusPre-order
Stock0

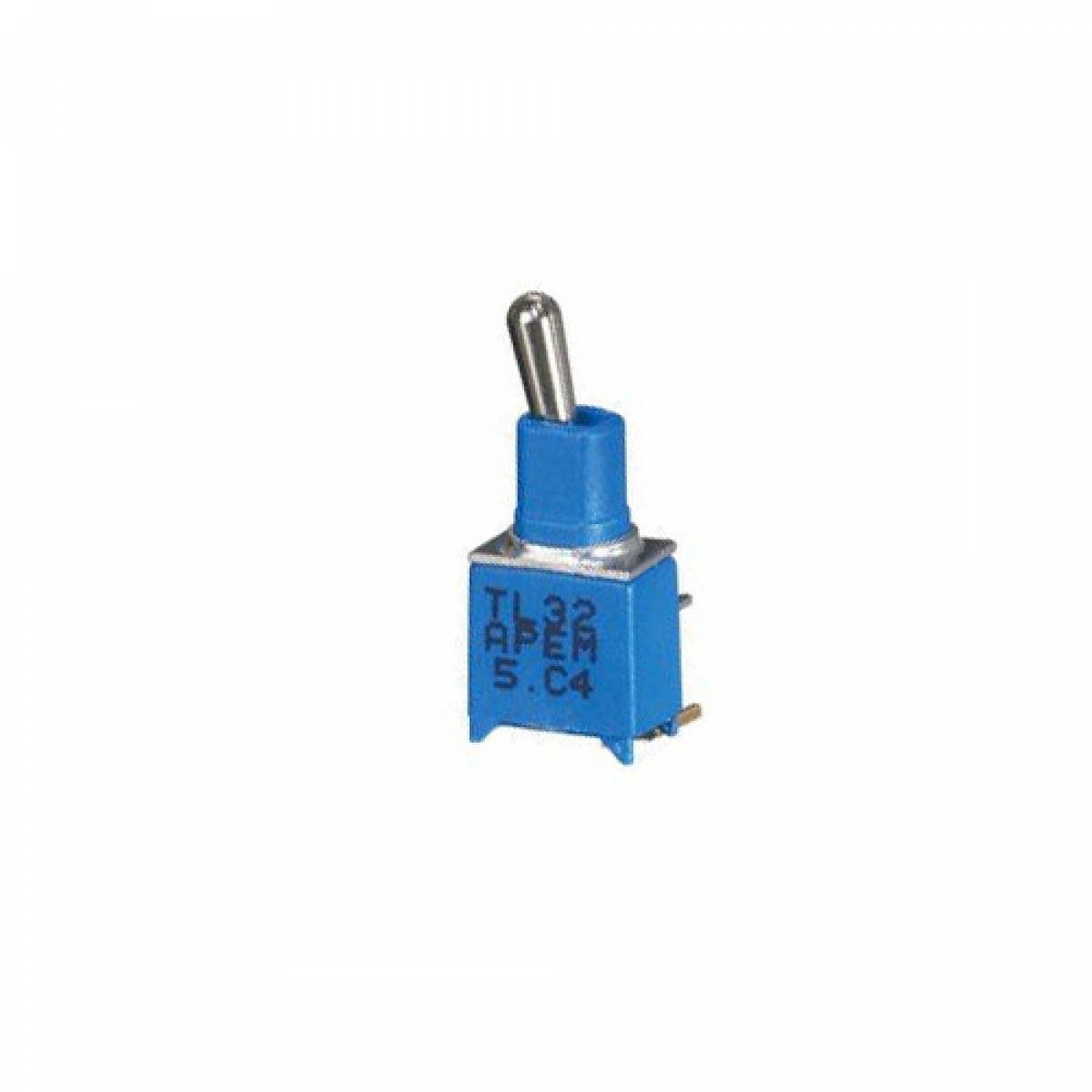

APEM TL Series Single Pole ONOFFON Toggle Switch

Subminiature toggle switches available in single and
double pole with gold or silver plating.

MAIN FEATURES
Sealed
Wide variety of contact materials
Same PCB layout as TP, TR and TG tiny switches

TL Series Datasheet

55.36 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
700	6.15 €	4,305.00 €
1400	4.64 €	6,496.00 €
2800	4.60 €	12,880.00 €
5600	4.57 €	25,592.00 €
10500	4.50 €	47,250.00 €

Property Name	Property Value
SERIES	TL
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON OFF ON
CONTACT AND TERMINAL	Brass, gold plated (std)
LEVER STYLES / CASE COLORS	Short lever, nickel plated (with blue case)
SPECIAL OPTIONS	No special requirement

We'll Call You

Tags: apem TL39WS84065 toggle switch ONOFFON

Description

GENERAL SPECIFICATION
• Strength of terminals : pull-out force - 10N max.
• Cleaning : solvents or water + detergent
• Wave soldering : 260 °C - 5 sec

ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -30 °C to +85 °C
• Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3)

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- gold plated contacts : 0,4 VA 20 V max. AC or DC
- silver plated contacts : 0,5 A 48 V max. AC or DC
• Minimum load : 10 mA 50 mV - 10 µA 5 VDC
• Contact resistance : 20 m? max.
• Insulation resistance : 1,000 M? min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals and frame
500 Vrms 50 Hz min. between terminals

MATERIALS
• Case : PBT
• Actuator : brass, nickel plated
• Contacts and terminals :
0 : brass, gold plated
1 : brass, silver plated
3 : brass, gold plated (1.27 micron gold)
8 : contact brass, gold plated + tin plated terminals
9 : contact brass, gold plated (1.27 micron gold) + tin plated
• Terminal seal : epoxy
