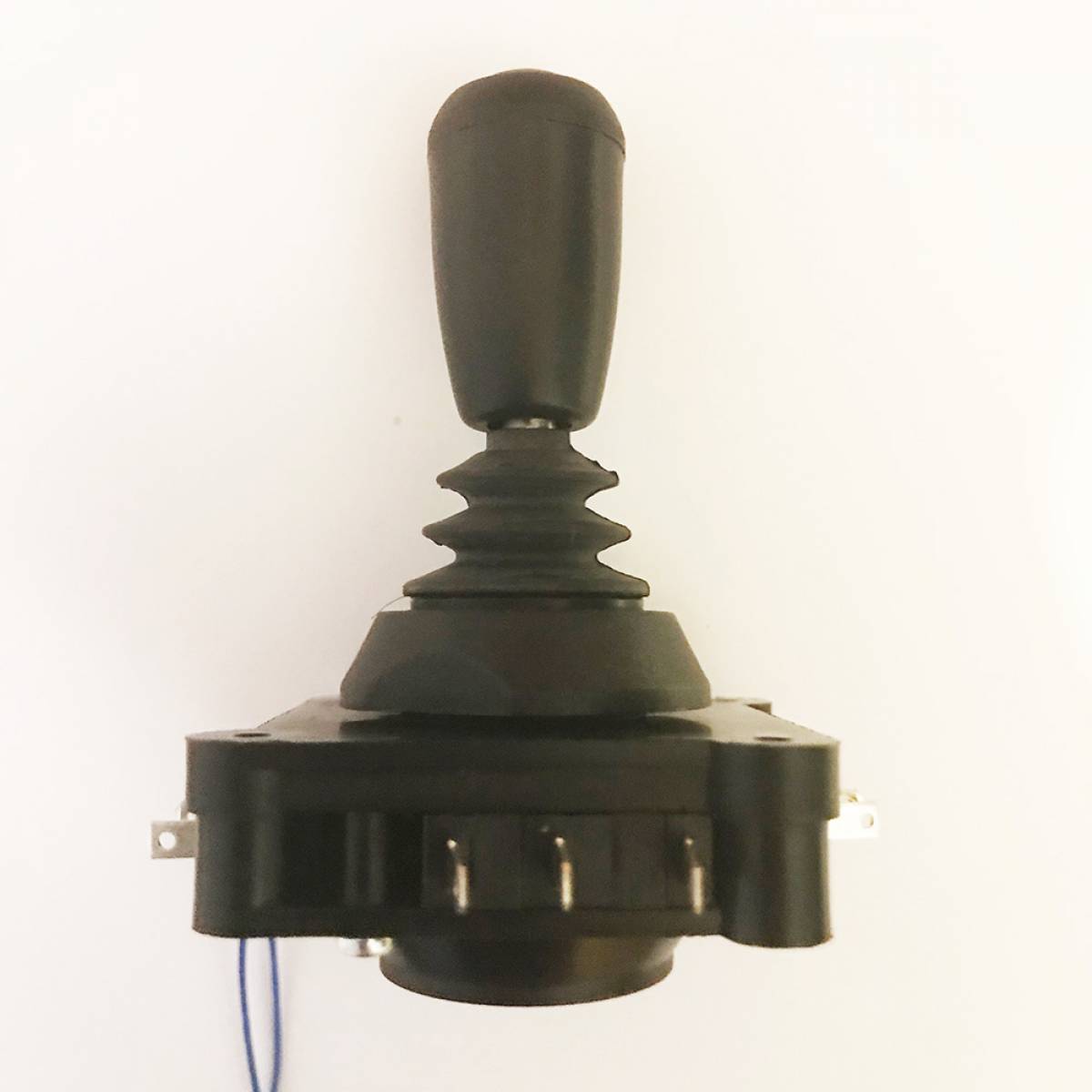

APEM 1000 Series Fingertip Switch Joystick

The 1000 Series is a versatile range of low-cost switch joysticks,
ideal for light to medium duty environments where proportional control
is not a necessity. Configurable with either single or double pole switching,
the 1000 Series can also be specified as screw or bush mounted.
There are two construction options, based on the use of either V3 or V4 switches.
V4 switches may be specified with 6A or 10A operation,
yielding a smaller joystick than the construction employed for V3 switches which yield up to 16A operation.

1000 Series Datasheet

SERIES

72.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	1000
SWITCHES	10A - V4
MOUNTING	22mm Bush
NUMBER OF POLES	Single Pole
LEVERS	For Pushbutton V4
HANDLE	Pushbutton (see sheet)
LIMITER AND BEZEL SET	Standard
BOOT	Bush Mount
MODIFIER	None

We'll Call You

Description

GENERAL SPECIFICATION

• Compact size

• Robust construction

• Single or dual axis

• Single or double pole

• Gold plated contacts

ENVIRONMENTAL SPECIFICATIONS

• Temperature Range: -20ºC to 50ºC (-4ºF to 122ºF)³

• Above Panel Seal (IP): To IP67 (excluding some handle options)

ELECTRICAL SPECIFICATIONS

• Number of Switches: 2, 4, or 8

• Nominal Current: 6A, 10A, or 16A

• Maximum Voltage: 250V AC

• Contacts #1 6A - V4: Gold

• Contacts #2 16A - V3: Silver

• Contacts #3 10A - V4: Silver

• Contacts #4 Right Angle: Silver

• Contacts #5 Faston Style - V4: Silver

• Contacts #6 Faston Style - V3: Silver

• Contacts #7: Silver

• Switch Contacts: Changeover

• Contact Life: Load Dependent

• Pushbutton Cable: Blue

MATERIALS

• Lever Material: Stainless Steel or Brass

• Body Material: Mineral Filled Nylon-6

• Handle Material: See data sheet

• Boot Material: Neoprene

MECHANICAL SPECIFICATIONS

• Mechanical Life: >5 Million Operations

• Lever Travel: 24º (12º from center)

• Lever Material: Stainless Steel or Brass

• Mass/weight: 40g

• Mounting - Screw: 4 x M2.5 Stainless (Slotted)

• Mounting - Bush: Single Point 22mm Diameter
