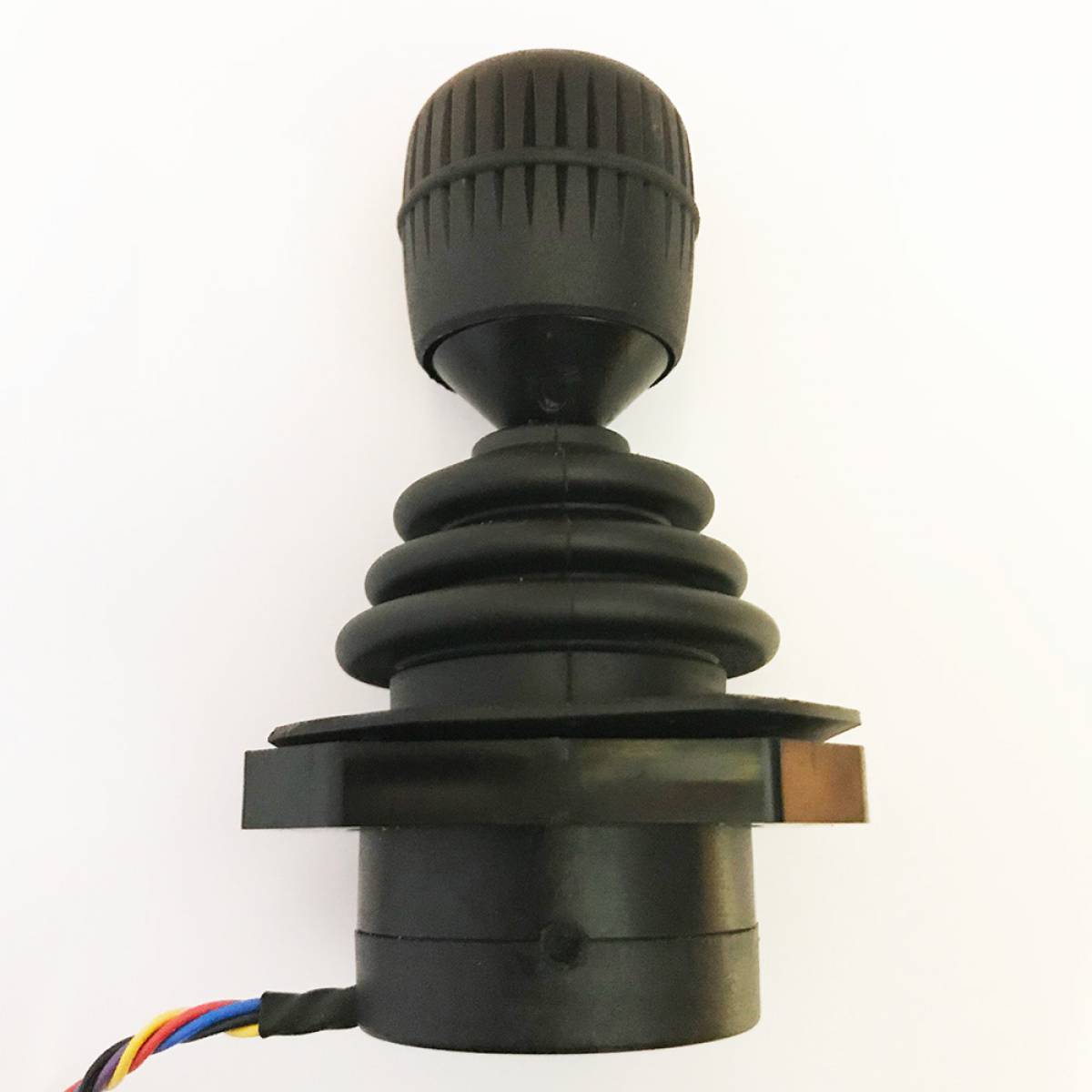

GENERAL SPECIFICATION
• Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks)
• Seal Above Panel: IP65 – Neoprene boot fitted as standard
ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
• Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
• EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz
• ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges)
• EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
• Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis)
ELECTRICAL SPECIFICATIONS
• Gain (Output Voltage Span): ±10% x V to ±50% x V
• Output at Center: V/2 ±(5% x Gain)
• Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
• Center Tap Impedance: 1K1
• Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF
• Sensor Type: Hall effect
• Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis)
• Loads: Minimum 10K, preferred 100K+
MATERIALS
• Shaft - Stainless Steel
• Boot - Neoprene
• Others - Brass, Nylon, ABS
MECHANICAL SPECIFICATIONS
• Weight: 100g (0.20lb) nominal
• Breakout Force: 1.3N (2.86lbf)
• Mechanical Angle of Movement:
