4P192F1E55113

Print this page

Description

Brand APEM
Product Code4P192F1E55113
Stock Status3
Stock3

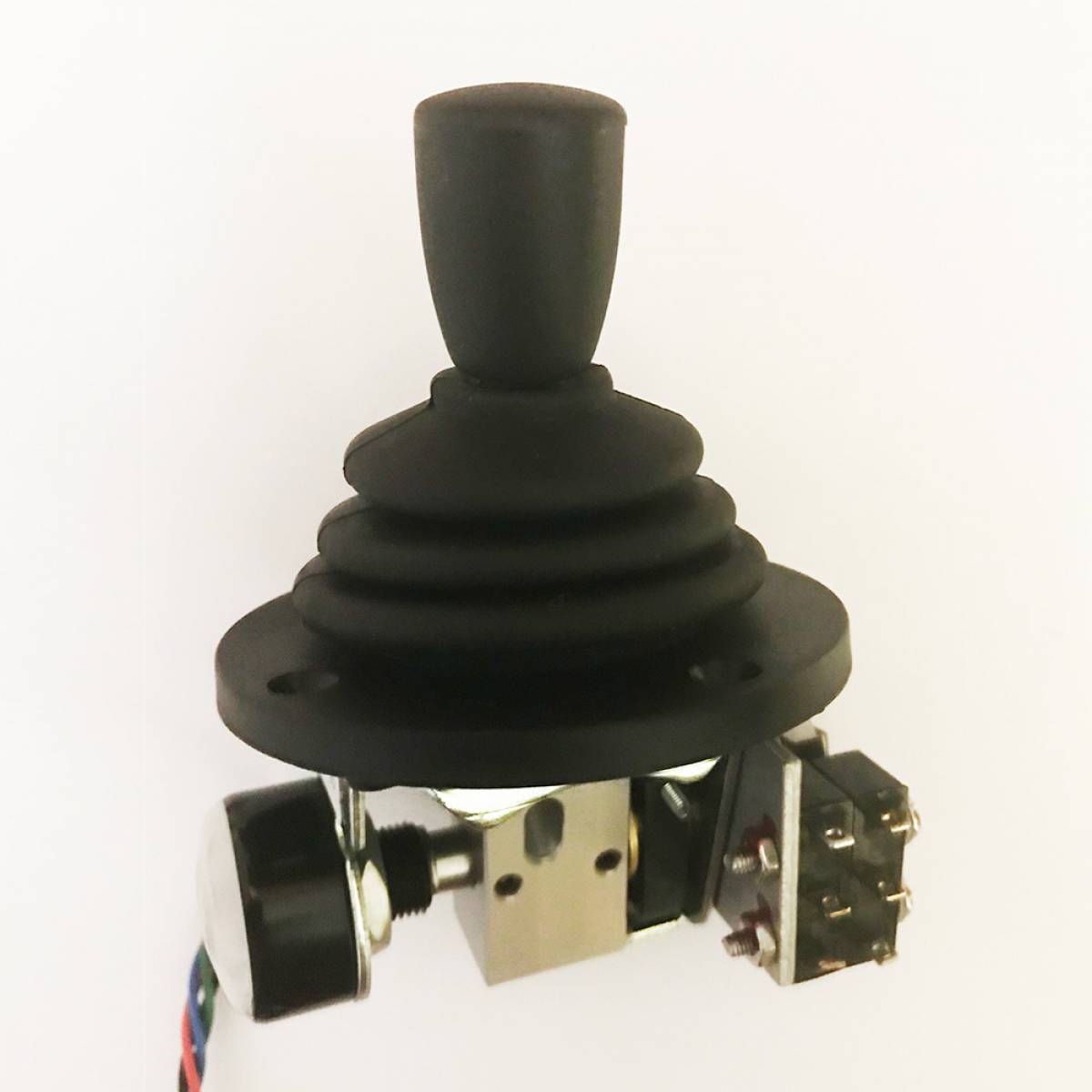

APEM 4000 Series Double Axis with Potentiometer Pushbutton Joystick

The 4000 Series is a range of robust, industrial quality potentiometer
joysticks for internal and external applications. All 4000 Series share the same,
all metal mechanism to provide the finest performance and service life
over a wide range of temperatures and loads. All 4000 Series employ
high quality plastic film potentiometers, yielding a service life of many millions of cycles.

MAIN FEATURES
Two standard mounting options
Low current drain
Variety of potentiometer options
Robust
All metal mechanism
IP65 above panel
Inherently immune to RFI
Optional center-detect micro-switching
Available in two body variants

4000 Series Datasheet

SERIES

420.00 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total

Property Name	Property Value
SERIES	4000
BODY	Open
AXIS	One
POTS	5K 55° +CT
BEZEL	None
MODIFIER	None

We'll Call You

Description

GENERAL SPECIFICATION

• Two standard mounting options

• Low current drain

• Variety of potentiometer options

• Robust

• All metal mechanism

• IP65 above panel

• Inherently immune to RFI

• Optional center-detect microswitching

• Available in two body variants

ENVIRONMENTAL SPECIFICATIONS

• Temperature Range: -20°C to +55°C (-4°F to +131°F)

• Linearity: ±2%

• Output Smoothness: 0.1% max.

• Power Rating: 1W at 70°C (158°F) - Derate to 0W at 125°C (257°F)

• Above Panel Seal: IP65 (subject to handle)

ELECTRICAL SPECIFICATIONS

• Insulation Resistance: 1000MOhms, 500VDC

MATERIALS

• Lever Material: Stainless Steel

• Body Material: Glass Filled ABS or Steel

• Handle Material: See Guide

• Boot Material: Neoprene or santoprene

• Other Materials: Brass

MECHANICAL SPECIFICATIONS

• Life Cycles: > 5 Million Operations

• Angle of Travel: 27.5° (X,Y) and 50° (Z)
