639H5

Name: 639H5
Brand: APEM
Price: 7073 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code639H5
Stock Status2
Stock2

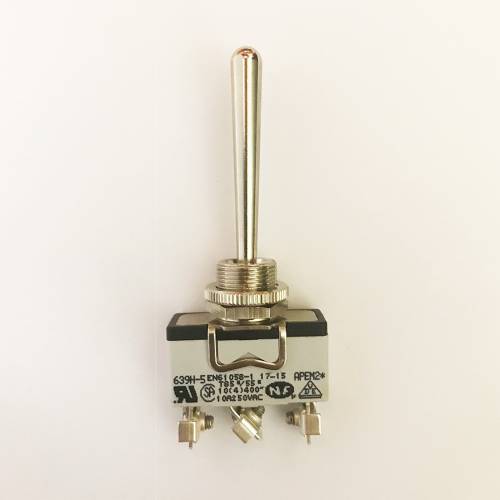

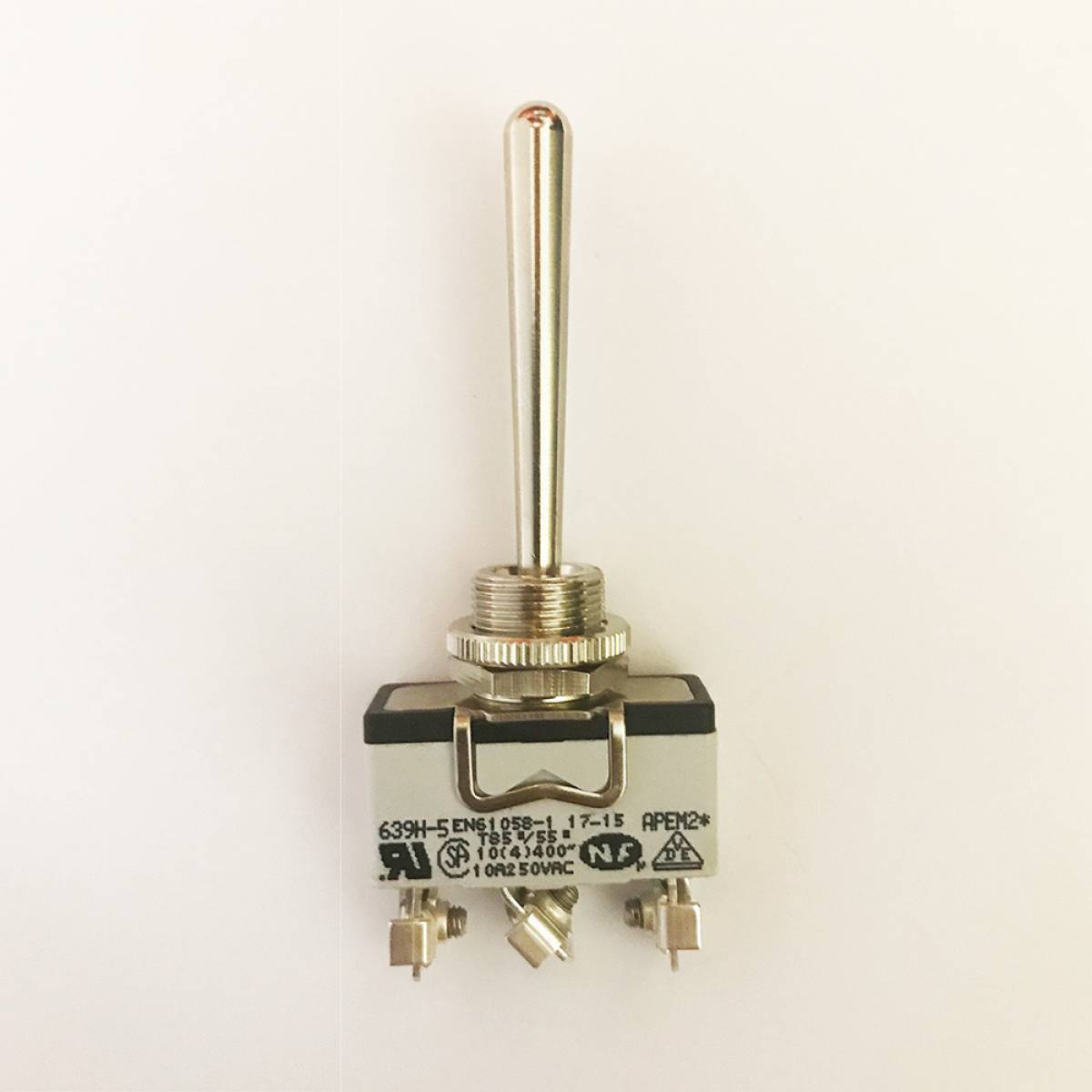

APEM 600H Series Toggle Switch

Industrial toggle switches with high amperage and metal or insulated lever. The 600 series
are manufactured from a single piece of metal, increasing the mechanical strength.
MAIN FEATURES
Construction: Terminal and contact support are manufactured from a single piece of metal. The contacts are
resistance-welded to the terminal for increased mechanical strength.
Rating: These switches are suitable for motor loads and power applications up to 15 A 250 VAC or 10 A 400
VACMetal or insulated lever
UL, CSA and NF-VDE (EN 61058-1) approved

600H Series Datasheet

SERIES

70.73 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
20	7.86 €	157.20 €
100	6.42 €	642.00 €
260	5.70 €	1,482.00 €
500	5.56 €	2,780.00 €
760	5.45 €	4,142.00 €
1000	5.01 €	5,010.00 €

Property Name	Property Value
SERIES	600H
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON OFF ON
CONTACT	For H-NH Series
ACTUATOR AND TERMINALS	Metal lever, screw terminals
ACTUATOR OPTIONS	40 mm (1.574) long actuator

We'll Call You

Tags: apem 600h toggle switch 639H5

Description

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 4.5 mm (.177) max. between 2 nuts
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage ratings: see full data sheet
• Peak current: 30 A max. during 1/2 sine, 250 VAC
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
2,500 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: polyester UL94-V0
• Actuator :
- 600H: brass, nickel plated
- 600NH: black polyamide
• Bushing: brass, nickel plated
• Contacts: silver/nickel alloy
APPROVALS
CSA NF UL VDE
