641H/2TLUXE2V

Name: 641H/2TLUXE2V
Brand: APEM
Price: 17359 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code641H2TLUXE2V
Stock Status35
Stock35

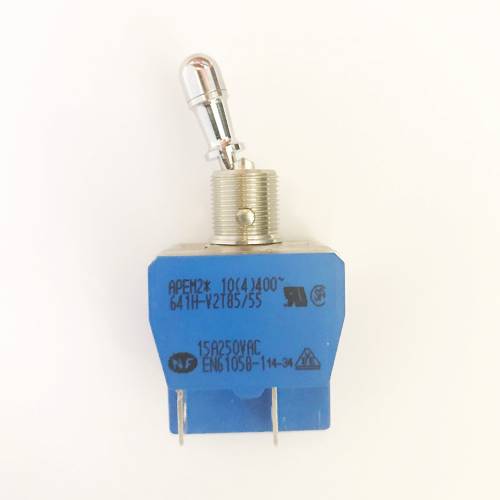

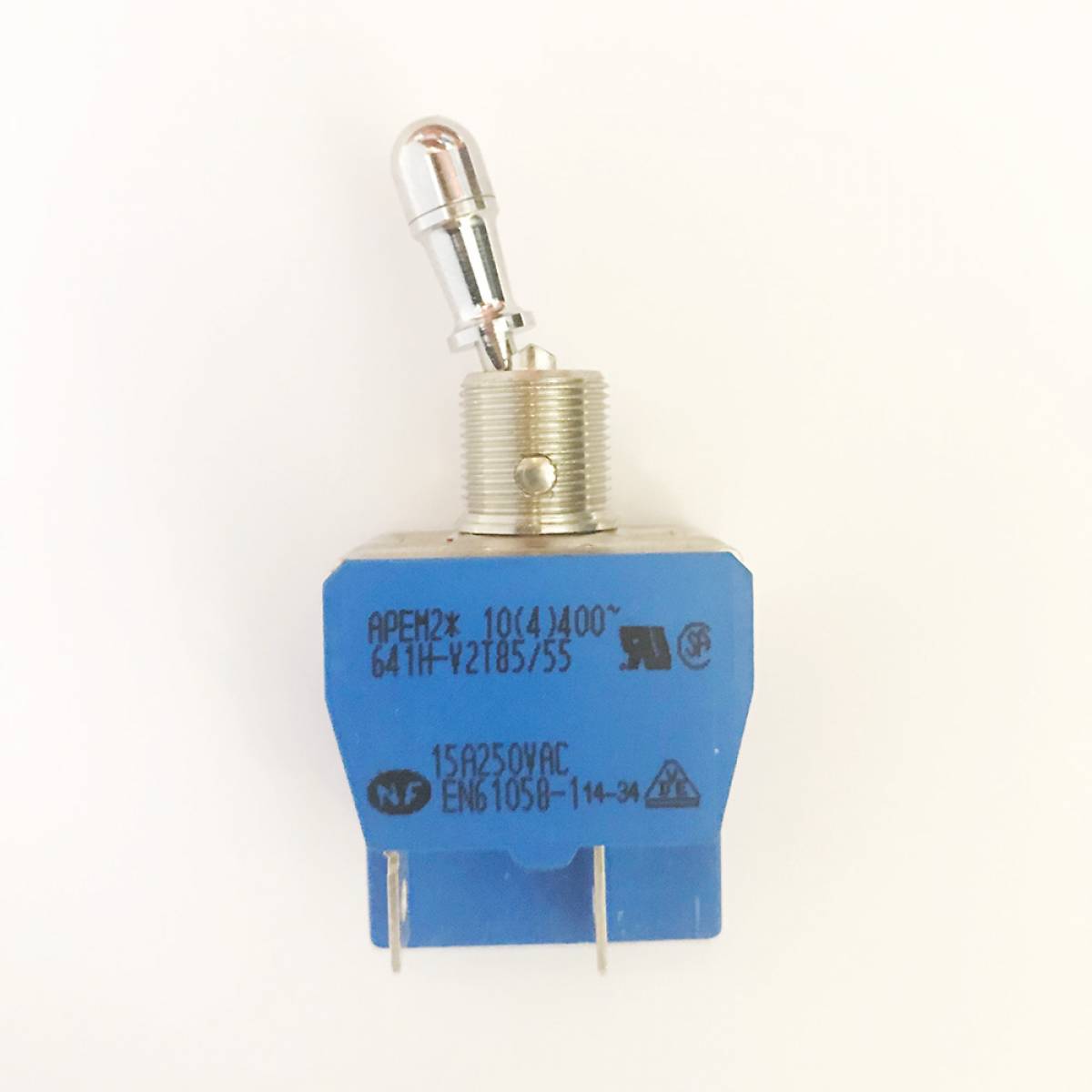

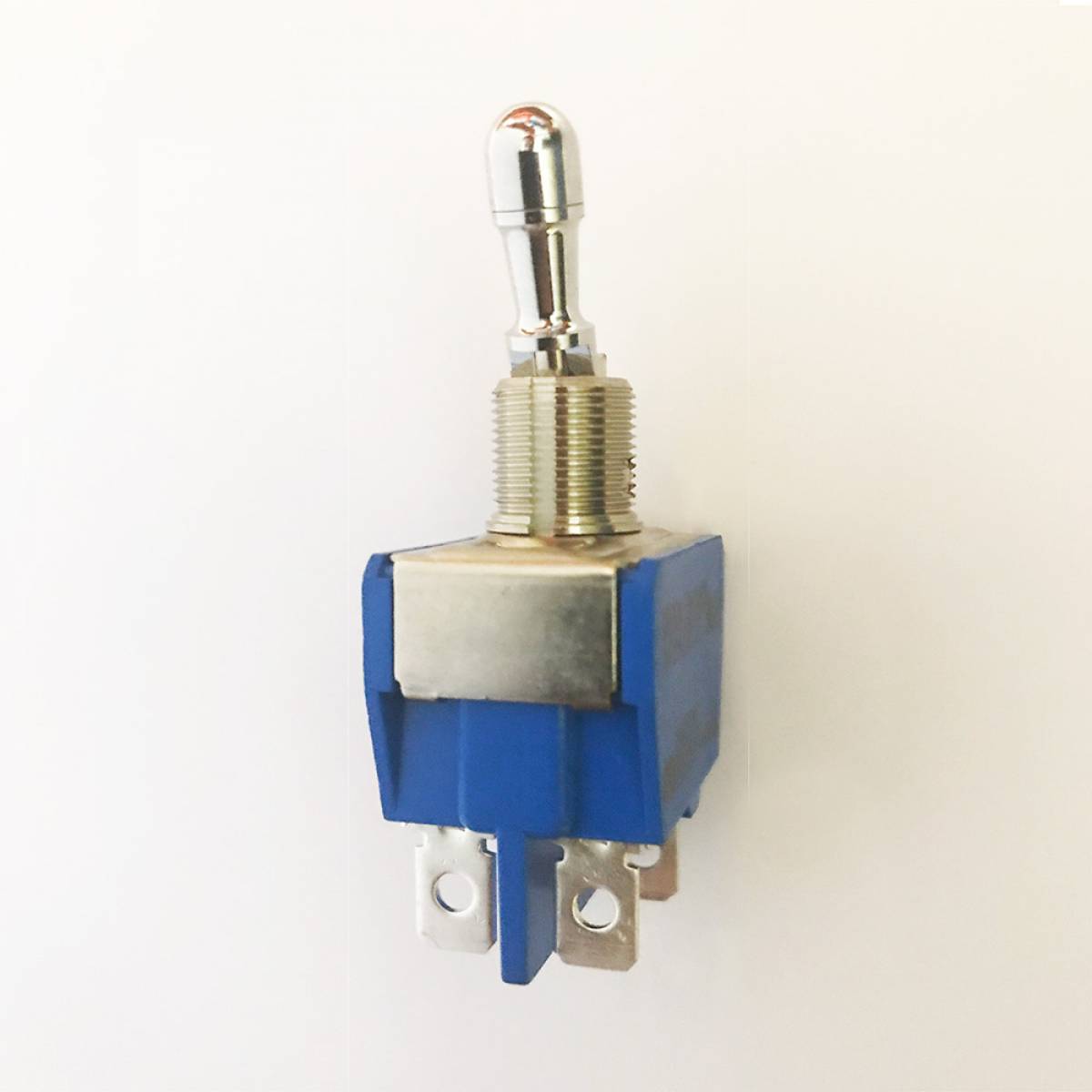

APEM 600H Series Double Pole Locked ONOFF Toggle Switch

Industrial toggle switches with high amperage and metal or insulated lever. The 600 series
are manufactured from a single piece of metal, increasing the mechanical strength.
MAIN FEATURES
Construction: Terminal and contact support are manufactured from a single piece of metal. The contacts are
resistance-welded to the terminal for increased mechanical strength.
Rating: These switches are suitable for motor loads and power applications up to 15 A 250 VAC or 10 A 400
VACMetal or insulated lever
UL, CSA and NF-VDE (EN 61058-1) approved

600H Series Datasheet

SERIES

173.59 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
25	19.29 €	482.25 €
100	15.76 €	1,576.00 €
250	13.98 €	3,495.00 €
500	13.65 €	6,825.00 €
750	13.37 €	10,027.50 €
1000	12.31 €	12,310.00 €

Property Name	Property Value
SERIES	600H
NUMBER OF POLES	Double Pole
ELECTRICAL FUNCTIONS	ON - OFF
CONTACT	For H-NH Series
ACTUATOR AND TERMINALS	Metal lever, solder lug/quickconnect terminals
OPTIONS	Tropicalized case

We'll Call You

Tags: apem 600h double pole toggle switch 641H2TLUXE2V

Description

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 4.5 mm (.177) max. between 2 nuts
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
ELECTRICAL SPECIFICATIONS
• Max. current/voltage ratings: see full data sheet
• Peak current: 30 A max. during 1/2 sine, 250 VAC
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
2,500 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: polyester UL94-V0
• Actuator :
- 600H: brass, nickel plated
- 600NH: black polyamide
• Bushing: brass, nickel plated
• Contacts: silver/nickel alloy
APPROVALS
CSA NF UL VDE
