6421A03LMK

Name: 6421A03LMK
Brand: APEM
Price: 44853 € EUR
Availability: InStock
Rating: 0 (0 reviews)

Print this page

Description

Brand APEM
Product Code6421A03LMK
Stock Status182
Stock182

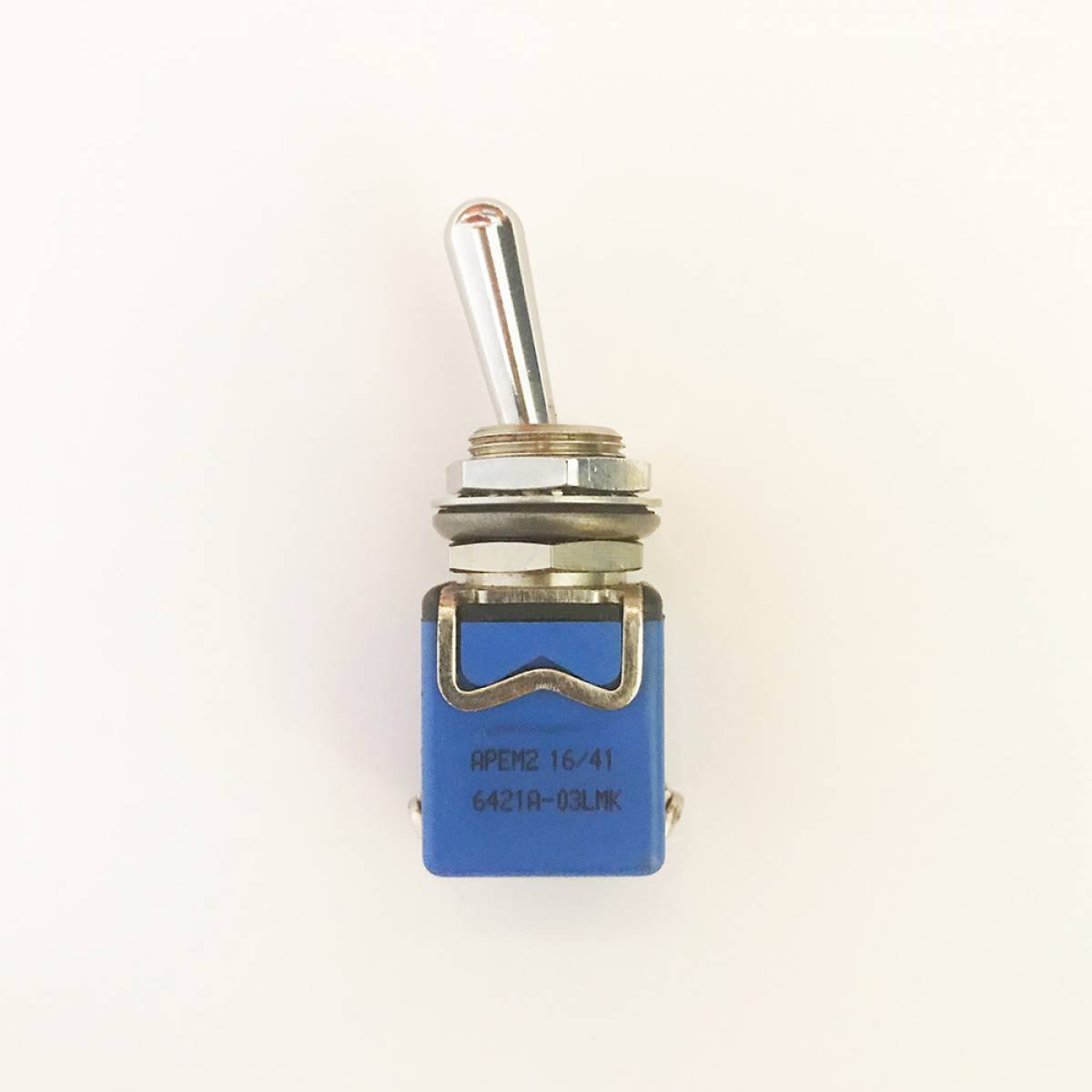

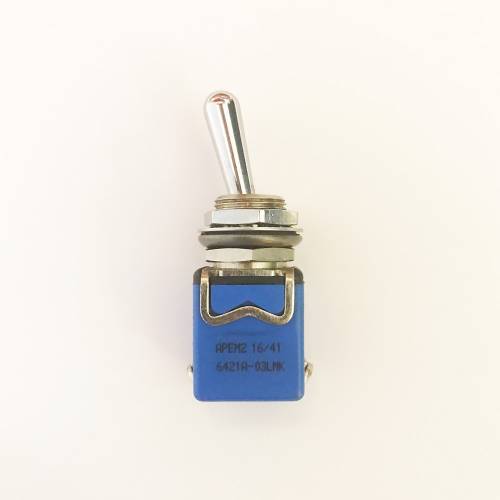

APEM 6000 Series Single Pole ONOFF Toggle Switch

Industrial toggle switches for military applications available with 1, 2, 3 and 4 poles.
6000 series comes with neoprene protection caps and sealing / locking lever options.

MAIN FEATURES
screw, solder lug or quick connect terminals
silver contacts
matt black finish on actuator and bushing
sealing and locking lever options
neoprene protection caps
rated for up to 7 amps with resistive loads

6421A03LMK 3D Drawing

6000 Series Datasheet

SERIES

448.53 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	49.84 €	498.40 €
100	40.72 €	4,072.00 €
250	36.13 €	9,032.50 €
500	35.27 €	17,635.00 €
750	34.55 €	25,912.50 €
1000	31.80 €	31,800.00 €

Property Name	Property Value
SERIES	6000
CASE	For single pole (screw terminals compulsory)
NUMBER OF POLES	Single Pole
ELECTRICAL FUNCTIONS	ON - OFF (SP ONLY)
FINISH	Nickel plated bushing - lever and upper nut bright chrome plated
SEALING	Front panel sealing by one O-ring and sealing washer
TERMINALS	Screw

We'll Call You

Tags: apem 6421A03LMK 6000 series toggle switch

Description

GENERAL SPECIFICATION
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 5 mm (.196) max.
ENVIRONMENTAL SPECIFICATIONS
• Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)
ELECTRICAL SPECIFICATIONS
• Initial contact resistance: 10 m? max.
• Insulation resistance: 1,000 M? min. at 500 VDC
• Dielectric strength:
2,000 Vrms 50 Hz min. between terminals
3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life: 10,000 cycles at full load
MATERIALS
• Case: diallylphthalate (DAP)
• Actuator: brass, chrome plated, black
• Bushing: brass, chrome plated, black
• Contacts: A : silver
