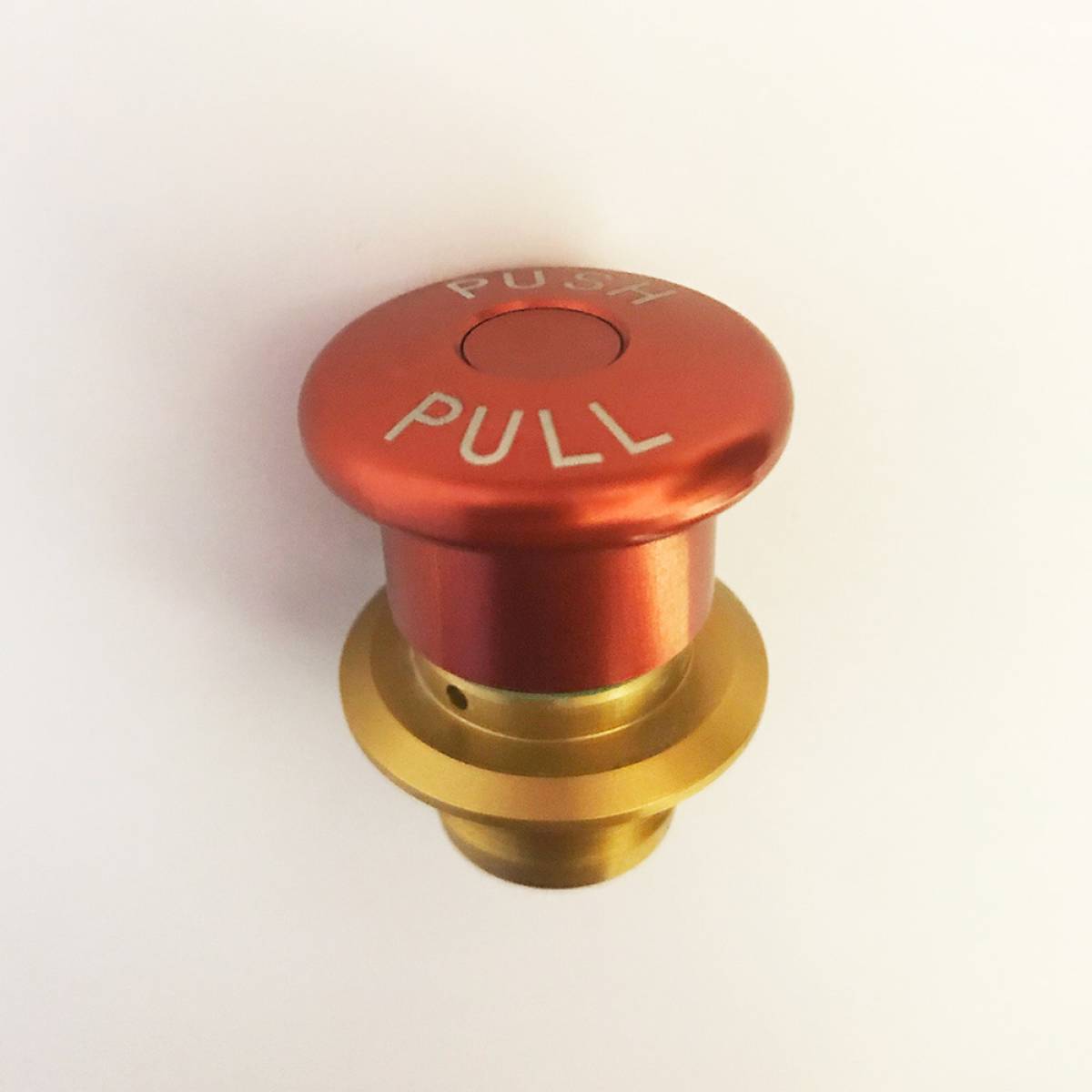

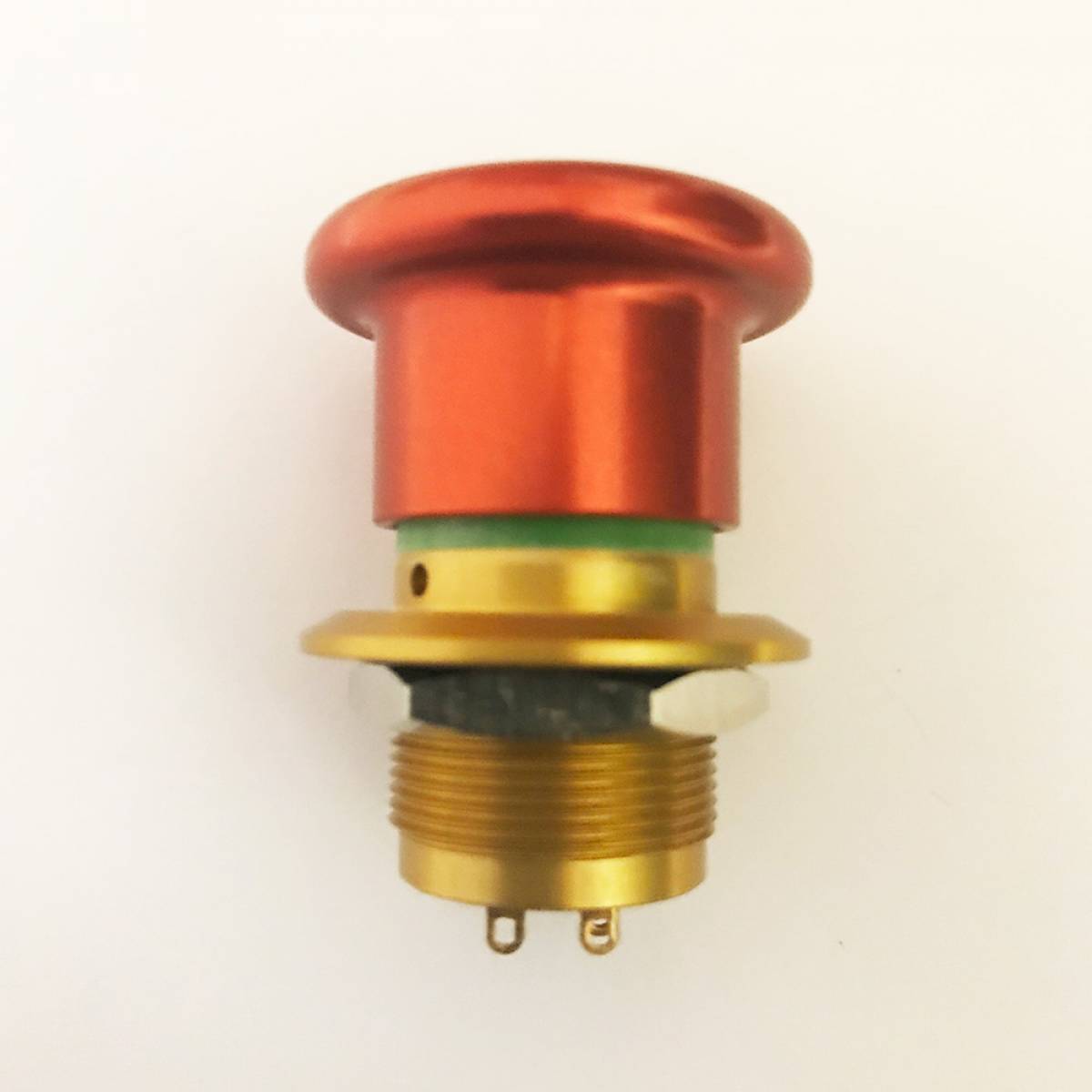

APEM Metal Emergency Stop Button

Heavy-duty safety switch with dia. 34 mm red anodized actuator, designed for heavy-duty applications.
Features IK10 impact resistance, IP65, IP67 & IP69K frontal sealing and
compliant with EN 60947-5-1 certification. Push-pull ON-ON function.

MAIN FEATURES
Metal product with dia. 22 mm bushing (market standard)
100.000 cycle mechanical life
IK10 Impact resistance, no axis deformation even if exposed to major shocks
Sealed to IP65, IP67 & IP69K
Lower behind-panel depth
Locked/unlocked status indicator
Customizable actuator and bezel (color, shape, marking)
Straight PC or solder lug terminals

ES2S41653001 3D Drawing

ES Series Datasheet

SERIES

1,144.83 €

Piece	Add to Cart
Birim Fiyat
Toplam Fiyat

Piece	Unit price	Total
10	127.20 €	1,272.00 €
100	116.60 €	11,660.00 €
500	111.30 €	55,650.00 €
1000	106.00 €	106,000.00 €

Property Name	Property Value
SERIES	ES
ELECTRICAL FUNCTIONS	1 NO + 1NC (double pole only)
TERMINALS	Solder lug
NUMBER OF POLES	Double Pole
ACTUATOR DIAMETER	34.5 mm (1.358)
ACTUATOR COLOR	Red anodized
BUSHING COLOR	Yellow anodized
STATUS INDICATOR	Green
OPTIONS	None

We'll Call You

Description

GENERAL SPECIFICATION

• Panel thickness : 6 mm (.236) max.

• Low level or mechanical life : 100,000 cycles

• Travel to lock : 2.20 mm ± 0.3 mm

• Total travel : 4.20 mm ± 0.3 mm

• Torque : 5 Nm min. - 14 Nm max. applied to nut

• Operating force :

2 pole models : Push : 30 N ± 7 N; pull : 25 N ± 5 N

3 pole models : Push : 45 N ± 7 N; pull : 25 N ± 5 N

ENVIRONMENTAL SPECIFICATIONS

• Sealing : IP65, IP67 and IP69K according to IEC 60529 and DIN 40050

• Salt spray : 96 hours according to IEC 68-2-11

• Vibrations : 10-500 Hz - 10 g according to IEC 68-2-6

• Shock resistance : 50 g according to IEC 68-2-27

• Robustness (axial) : IK10

• Operating temperature : -40 °C to +85 °C

• Compliant with EN 60947-5-1

ELECTRICAL SPECIFICATIONS

• Electrical function : push-pull ON-ON

• Current/voltage rating : 1 A 24 VDC DC-14

• Electrical life : 6,050 cycles

• Contact resistance : 10 m? max.

• Insulation resistance : 1,000 M? min. at 500 VDC

• Dielectric stength :

1,000 Vrms 50 Hz min. between terminals

2,000 Vrms 50 Hz min. between poles and between terminals and frame

MATERIALS

• Case : diallylphthalate (DAP)

• Actuator : aluminium, red anodised

• Bushing : aluminium, yellow anodised

• Contacts : silver, gold plated

• Terminal seal : epoxy
