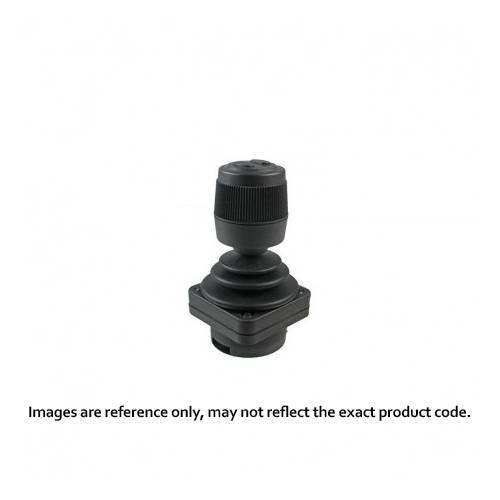

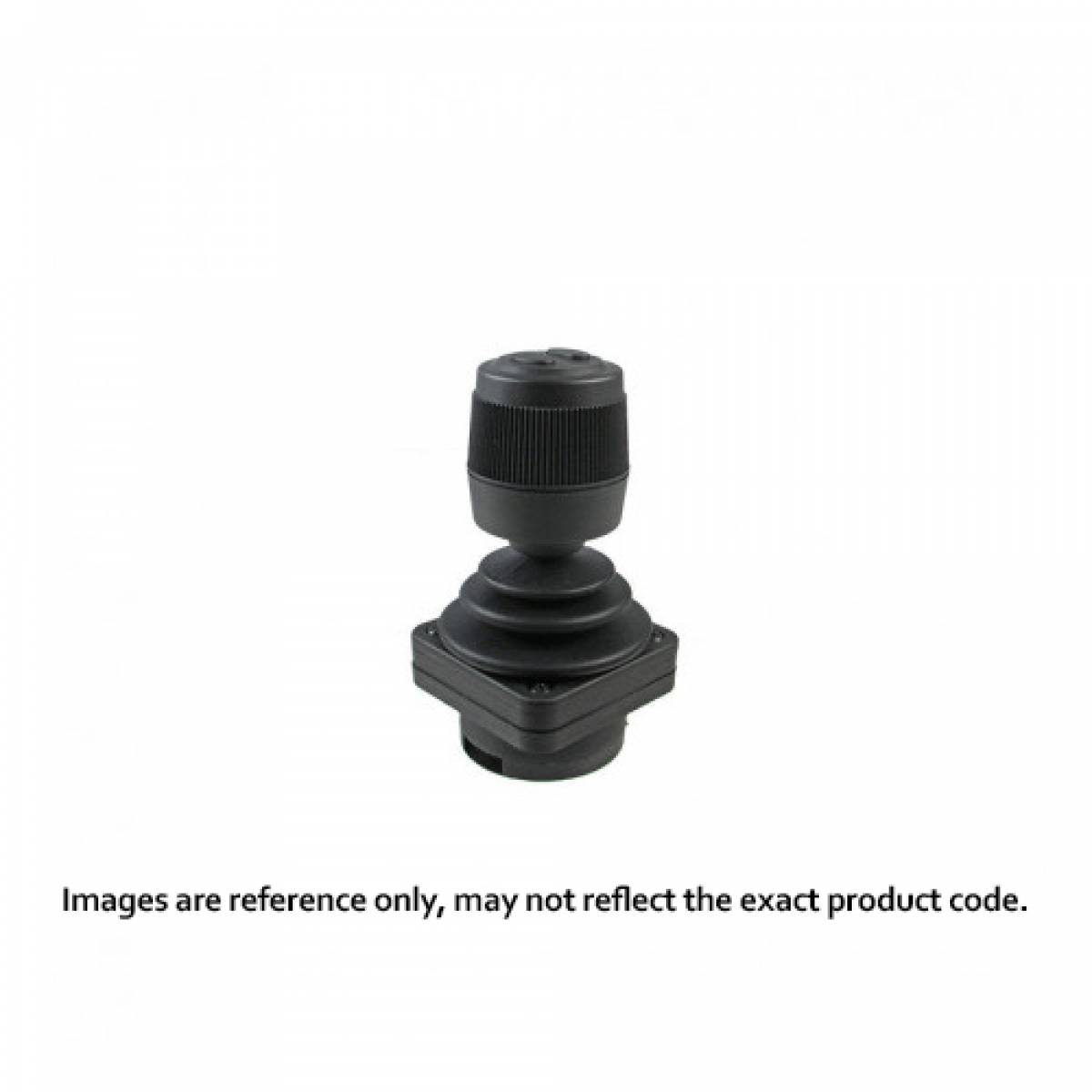

HF51S10U

GENERAL SPECIFICATION

• Break Out Force: 1.3N (0.3lbf)

• Operating Force: 2.8N (0.63lbf)

• Maximum Applied Force: 200N (45.00lbf)

• Mechanical Angle of Movement: 36º (18º from center)

• Expected Life: 5 million

• Package Size: 5.75” x 4.50” x 3.25”

• Lever Action: Single spring, omnidirectional

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)

• Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)

• Sealing (IP): Up to IP68*

• EMC Immunity Level (V/M): EN61000-4-3

• EMC Emissions Level: EN61000-6-3:2001

• ESD: EN61000-4-2

• Output linearity: ±200mV

• Dual output interlinearity (X/Y): ±400mV

• Dual output interlinearity (Z): ±600mV

ELECTRICAL SPECIFICATIONS

• Sensor: Hall effect

• Supply Voltage Operating: 5VDC±200VDC

• Reverse Polarity Max: -10VDC

• Transient Overvoltage Max: 20VDC

• Ratiometric Output Voltage: See options

• Output Impedance: 2?

• Return to center Voltage: ±200mV

MATERIALS

• Material: Glass filled nylon

MECHANICAL SPECIFICATIONS

• Break Out Torque: 0.09N·m (0.80lbf·in)

• Operating Torque: 0.121N·m(1.07lbf·in)

• Maximum Allowable Torque: 2.50N·m(22.13lbf·in)

• Hand Mechanical Angle: 60º (30º from center)

• Handle Action: Spring centering, rotational

• Expected Life: 5 million
